| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

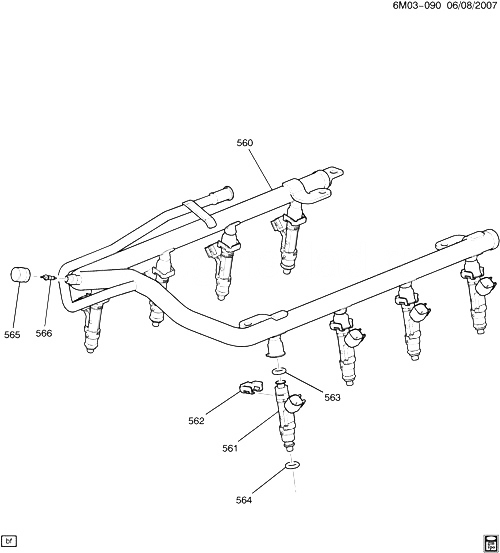

| 560 |
12598329 |
RAIL KIT, SEQ M/PORT F/INJN FUEL (ACDelco #X2598329) |
E (LH2) |
2007-2009 |
01 |
| 561 |
12597871 |
INJECTOR KIT, SEQ M/PORT FUEL (INCLS 562-564) (ACDelco #217-2443)
| E (LH2) |
2007-2009 |
08 |
|
| 562 |
|
CLIP, F/INJN FUEL RL (ЧАСТЬ OF 561) (*KIT1) |
|
2007-2009 |
|
| 563 |
|
SEAL, F/INJR (O RING) (ЧАСТЬ OF 561) (*KIT2) |
|
2007-2009 |
|
| 564 |
|
SEAL, F/INJR (O RING) (ЧАСТЬ OF 561) (*KIT2) |
|
2007-2009 |
|
| 565 |
25532662 |
CAP, FUEL PRESS SERV VLV (CAP FOR PRESSURE TEST SCHRADER VALVE) (*KIT3) (3.163) (ACDelco #214-1044)
| E (EXPORT) |
2007-2009 |
01 |
|
| 566 |
12574525 |
VALVE, FUEL PRESS SERV (SCHRADER VALVE LESS CAP) (*KIT3)
| EE (LH2) (EXPORT) |
2007-2008 |
01 |
|
| 566 |
12574525 |
VALVE, FUEL PRESS SERV (SCHRADER VALVE LESS CAP) (*KIT3)
| EB (LH2) |
2007-2009 |
01 |
|
| K01 |
12584591 |
RETAINER KIT, F/INJR (INCLS 562) (ACDelco #12584591)
| E (LH2) |
2007-2009 |
01 |
|
| K02 |
12597872 |
SEAL KIT, F/INJR (O RING) (INCLS 563, 564) (ACDelco #217-2444) |
E (LH2) |
2007-2009 |
01 |
| K03 |
12584592 |
VALVE KIT, FUEL PRESS SERV (INCLS 565, 566) (INCLUDES CAP AND VALVE) (ACDelco #12584592)
| EB, EE (LH2, LY7) |
2007-2008 |
01 |
|
| K03 |
12584592 |
VALVE KIT, FUEL PRESS SERV (INCLS 565, 566) (INCLUDES CAP AND VALVE) (ACDelco #12584592)
| EE (LH2, LY7) (EXPORT) |
2007-2008 |
01 |
|
