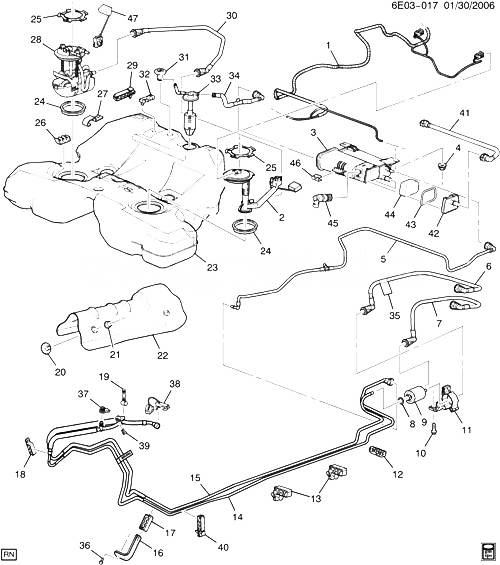

(6E03-017) - 2004-2009 E СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ (LY7/3.6-7) CADILLAC - SRX 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15924706 HARNESS, FUEL SDR WRG (3.115) E26 2004-2008 01
001 15924706 HARNESS, FUEL SDR WRG E26 2004-2008 01
002 19151155 SENDER KIT, FUEL (INCLS 24) (SECONDARY МОДУЛЬ) (ACDelco #SK1307) E26 2008-2008 01
003 19177355 CANISTER, EVAP EMIS (CANISTER WITHOUT COVER OR FILTER) (INCLS 46) (ACDelco #215-644) E 2008-2009 01
004 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT) 2004-2009 01
005 15278918 PIPE, EVAP EMIS CNSTR PURGE E26 2008-2008 01
006 15219486 PIPE, FUEL FEED RR (INCLS 35) E 2005-2009 01
007 15219484 PIPE, FUEL RTN RR E 2005-2009 01
008 22514722 SEAL, FUEL FEED FRT PIPE (O RING) (ЧАСТЬ OF PIPE, FEED RTN ASM BUNDLE) (7.35MM ID X 1.66MM THK) (ЧАСТЬ OF 15) (ACDelco #217-452) E (LH2, LY7) 2004-2009 01
009 25763176 ФИЛЬТР, FUEL (ACDelco #GF897) E (LH2, LY7) 2004-2009 01
010 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT) 2004-2009 01
011 25909398 RETAINER, FUEL FLTR EE26 (LY7) 2008-2008 01
011 25909398 RETAINER, FUEL FLTR EB26 (LY7) 2008-2009 01
012 25688547 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) E 2004-2008 01
013 25749839 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) E (LY7) 2004-2009 01
014 15888146 PIPE, EVAP EMIS CNSTR PURGE (INCLS 37, 39) EB26 (LY7) 2008-2009 01
014 25917777 PIPE, EVAP EMIS CNSTR PURGE (INCLS 37, 39) EE26 (LY7) 2007-2008 01
015 15145717 PIPE, FUEL FEED (INCLS 8, 19) EB, EE (LY7) 2008-2008 01
016 25761218 BRACKET, FUEL PIPE E 2004-2009 01
017 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE (3.162) EB, EE (LH2, LY7) 2008-2009 01
017 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE EB, EE (LH2, LY7) 2008-2009 01
018 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) E 2004-2009 01
018 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) E 2004-2009 01
019 LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 15) 2004-2009
020 25679213 PIN, F/TNK UPR SHLD E 2004-2009 04
021 RETAINER, F/TNK SHLD (ЧАСТЬ OF 23) 2004-2009
022 25679209 SHIELD, F/TNK E 2005-2009 01
023 25894460 TANK, FUEL (INCLS 21, 26, 27, 31, 33, 34) E 2008-2008 01
024 25901272 SEAL, FUEL SDR (ЧАСТЬ OF 2, 28, 47) (ACDelco #G37) E 2004-2009 02
025 25740096 CAM, FUEL SDR (ACDelco #TR23) E 2005-2009 02
026 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (ЧАСТЬ OF 23) 2004-2009
027 RETAINER, FUEL SDR (ЧАСТЬ OF 23) 2004-2009
028 19181827 МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 24) (ACDelco #M10201) E26 2004-2008 01
028 19181827 МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 24) (3.107) (ACDelco #M10201) E26 2004-2008 01
029 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) E 2004-2009 01
029 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) E 2004-2009 01
030 15951521 PIPE, FUEL SDR FUEL FEED (INCLS CONN) (PIPE ATTACHES TO SENDING UNITS INSIDE OF GAS TANK) E 2007-2009 01
031 VALVE, F/TNK FIL HOSE CHK (ЧАСТЬ OF 23) 2004-2009
032 16238399 SENSOR, F/TNK PRESS (ACDelco #16238399) E 2005-2009 01
033 VALVE, F/TNK VENT (ЧАСТЬ OF 23) 2004-2009
034 PROTECTOR, F/TNK VENT HOSE (ЧАСТЬ OF 23) 2004-2009
035 LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 6) 2004-2009
036 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) 2004-2009 01
037 CAP, EVAP EMIS PIPE (ЧАСТЬ OF 14) 2004-2009
038 25654373 CLIP, FUEL FEED RTN HOSE (PLASTIC) (ЧАСТЬ OF FUEL BRAKELINE BUNDLE НИЖНЯЯ ЧАСТЬ POSITION 2, 4, 5) E (LY7) 2004-2008 01
039 RETAINER, FUEL FEED PIPE (ЧАСТЬ OF 14) 2004-2009
040 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) E26 (LY7) 2005-2009 01
040 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) (3.162) E26 (LY7) 2005-2009 01
041 17114722 HOSE, EVAP EMIS CNSTR AIR INL (3.130) (ACDelco #219-366) E26 2004-2008 01
042 17114723 COVER, EVAP EMIS CNSTR AIR INL OPG (ЧАСТЬ OF 44) E26 2004-2008 01
043 SEAL, EVAP EMIS CNSTR FLTR (ЧАСТЬ OF 44) 2004-2009
044 19177365 FILTER KIT, EVAP EMIS CNSTR (W/ SEAL) (INCLS 42, 43) E 2008-2009 01
045 25932573 VALVE, EVAP EMIS CNSTR VENT SOL (ACDelco #214-2230) E26 2006-2008 01
046 RETAINER, EVAP EMIS CNSTR (ЧАСТЬ OF 3) 2004-2009
047 19151153 SENSOR KIT, FUEL LVL (INCLS 24) (ACDelco #SK1267) E26 2008-2009 01
