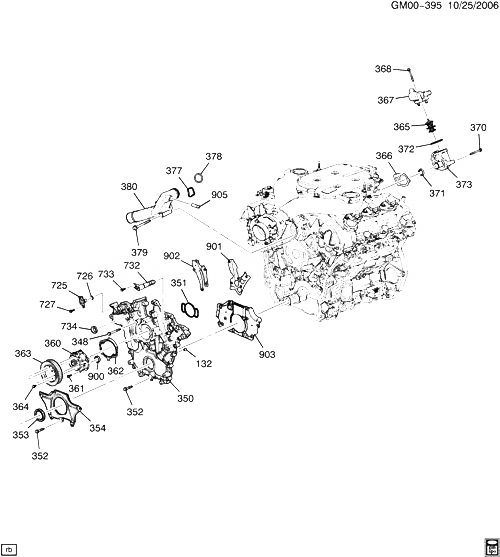

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 132 |
22531637 |
PIN, ENG FRT CVR LOC (ЧАСТЬ OF 350) (8MM DIA, 12MM LONG) (DOWEL) (0.413)
| E (LY7) |
2007-2009 |
02 |
|
| 348 |
11519176 |
БОЛТ, ENG FRT CVR (ЧАСТЬ OF 350) (M8X1.25X80) (4.081)
| E (LY7) |
2007-2009 |
05 |
|
| 350 |
12611883 |
COVER, ENG FRT (W/ W/PMP) (INCLS 132, 348, 351-354, 360-362, 725-727, 734, 900-903)
| E (LY7) |
2008-2009 |
01 |
|
| 351 |
12593045 |
SEAL, W/PMP (ЧАСТЬ OF 350)
| E (LY7) |
2007-2009 |
01 |
|
| 352 |
11519171 |
БОЛТ, ENG FRT CVR (ЧАСТЬ OF 350) (M8X1.25X50) (3.275)
| E (LY7) |
2007-2009 |
17 |
|
| 353 |
12608750 |
SEAL, CR/SHF FRT OIL (ЧАСТЬ OF 350)
| E (LY7) |
2007-2009 |
01 |
|
| 354 |
12594060 |
DEADENER, ENG FRT CVR (ЧАСТЬ OF 350) (BOTTOM)
| E (LY7) |
2007-2009 |
01 |
|
| 360 |
12618472 |
PUMP, WAT (W/GSKT) (INCLS 900) (ЧАСТЬ OF 350) (ACDelco #251-724)
| E (LY7) |
2007-2009 |
01 |
|
| 361 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 350) |
|
2007-2009 |
06 |
| 362 |
12576326 |
GASKET, W/PMP (ЧАСТЬ OF 350) (ACDelco #251-2048)
| E (LY7) |
2007-2009 |
01 |
|
| 363 |
12574518 |
PULLEY, W/PMP (ADX) |
E (LY7) |
2007-2009 |
01 |
| 364 |
11519512 |
БОЛТ, HFH, W/CON SPR WA, M6X1X13.4, 8.77 THD, 12.3 O.D., 8.8, GMW3359 (W/PMP PUL) |
|
2007-2009 |
04 |
| 365 |
|
THERMOSTAT, ENG COOL (W/WAT INL) (*KIT1) |
|
2007-2009 |
|
| 366 |
12592527 |
GASKET, ENG COOL THERM HSG (*KIT1) (ACDelco #12592527)
| E (LY7) |
2007-2009 |
01 |
|
| 367 |
|
ШЛАНГИ, ENG COOL THERM UPR (*KIT1) |
|
2008-2009 |
|
| 368 |
11519973 |
БОЛТ-HFH, M6X1X60, 18MM THD, 14.2 OD, 8.8, 3359GMW, REDUCED BODY, MAT PT. (ENG COOL THERM HSG) (*KIT1)
|
2007-2009 |
02 |
|
| 370 |
11519974 |
БОЛТ, HFH, RDUCD BDY, M6X1X70, 18 THD, 14.2 O.D., 8.8, GMW3359 (ENG COOL THERM HSG) (*KIT1)
|
2007-2009 |
03 |
|
| 371 |
12584325 |
SEAL, ENG COOL THERM HSG (O RING) (*KIT1)
| E26 (LY7) |
2007-2009 |
01 |
|
| 372 |
12582472 |
SEAL, ENG COOL THERM (*KIT1) (ACDelco #12582472)
| E (LY7) |
2007-2009 |
01 |
|
| 373 |
|
ШЛАНГИ, ENG COOL THERM LWR (*KIT1) |
|
2007-2009 |
|
| 377 |
12566429 |
SEAL, WAT OTLT (ЧАСТЬ OF 380)
| E (LY7) |
2007-2009 |
01 |
|
| 378 |
12584040 |
SEAL, CLNT OTLT (O RING) (ЧАСТЬ OF 380) (ACDelco #15-32584)
| E (LY7) |
2007-2009 |
01 |
|
| 379 |
11519974 |
БОЛТ, HFH, RDUCD BDY, M6X1X70, 18 THD, 14.2 O.D., 8.8, GMW3359 (ЧАСТЬ OF 380)
|
2007-2009 |
02 |
|
| 380 |
12573984 |
OUTLET, WAT (INCLS 377-379, 905) (INCLS БОЛТS, RETAINERS, SEALS PIPE) (ACDelco #15-10429)
| E (LY7) |
2007-2009 |
01 |
|
| 725 |
12608424 |
SENSOR, CM/SHF POSN (INCLS 726, 727) (ЧАСТЬ OF 350) (ACDelco #12608424)
| EE (LY7, MX5, M82) (EXPORT) |
2007-2008 |
04 |
|
| 725 |
12608424 |
SENSOR, CM/SHF POSN (INCLS 726, 727) (ЧАСТЬ OF 350) (ACDelco #12608424)
| EB (LY7, MX5, M82) |
2007-2009 |
04 |
|
| 726 |
|
SEAL, CM/SHF POSN SEN (O RING) (ЧАСТЬ OF 350, 725) |
|
2007-2009 |
|
| 727 |
11517590 |
БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (ЧАСТЬ OF 350, 725)
|
2007-2009 |
01 |
|
| 732 |
12576969 |
VALVE, CM/SHF POSN ACTR SOL |
EE |
2008-2008 |
04 |
| 732 |
12615613 |
VALVE, CM/SHF POSN ACTR SOL |
E (LY7) |
2007-2009 |
04 |
| 733 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CM/SHF POSN ACTR SOL VLV) |
|
2007-2009 |
04 |
| 734 |
12593717 |
SEAL, CM/SHF POSN ACTR SOL VLV (O RING) (ЧАСТЬ OF 350) |
E (LY7) |
2007-2009 |
04 |
| 900 |
|
PLUG, W/PMP (ЧАСТЬ OF 350, 360) |
|
2007-2009 |
|
| 901 |
|
DEADENER, ENG FRT CVR (ЧАСТЬ OF 350) |
|
2007-2009 |
|
| 902 |
|
DEADENER, ENG FRT CVR (ЧАСТЬ OF 350) |
|
2007-2009 |
|
| 903 |
|
DEADENER, ENG FRT CVR (ЧАСТЬ OF 350) (FRONT) |
|
2007-2009 |
|
| 905 |
|
PIPE, ENG COOL AIR BL (ЧАСТЬ OF 380) |
|
2007-2009 |
|
| K01 |
12620254 |
ШЛАНГИ, ENG COOL THERM (INCLS 365-368, 370-373) |
EE (LY7) |
2008-2008 |
01 |
| K01 |
12620259 |
ШЛАНГИ, ENG COOL THERM (INCLS 365-368, 370-373) (INCLS THERMOSTAT)
| EB (LY7) |
2007-2009 |
01 |
|
