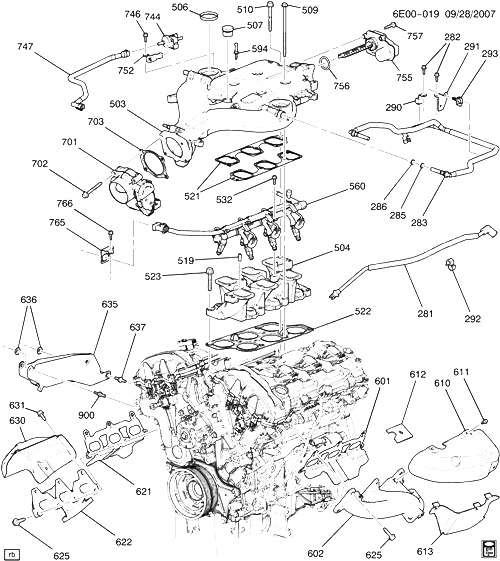

(6E00-019) - 2007-2008 E ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 ЧАСТЬ 5 КОЛЛЕКТОР ДЕТАЛИ КОМПЛЕКТА (LY7/3.6-7) CADILLAC - SRX 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
281 12604932 TUBE, PCV (INCLS 292) (FRESH AIR) E (LY7) 2007-2008 01
282 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PCV TUBE) 2007-2008 02
283 12616910 HOSE, PCV (INCLS 285, 286, 290, 291, 293) (DIRTY AIR) EB (LY7, MX5, M82) 2007-2008 01
283 12616910 HOSE, PCV (INCLS 285, 286, 290, 291, 293) (DIRTY AIR) EE (LY7, MX5) 2007-2008 01
285 12616908 SEAL, PCV HOSE FTG (O RING) (ЧАСТЬ OF 283) (BLUE) (LARGER OF THE TWO ON THE FITTING) E (LY7) 2007-2008 02
286 12616909 SEAL, PCV HOSE FTG (O RING) (ЧАСТЬ OF 283) (BLACK) (SMALLER OF THE TWO ON THE FITTING) E (LY7) 2007-2008 02
290 BRACKET, PCV VLV HOSE (ЧАСТЬ OF 283) 2007-2008
291 BRACKET, PCV VLV HOSE (ЧАСТЬ OF 283) 2007-2008
292 CLIP, PCV VLV HOSE (ЧАСТЬ OF 281) 2007-2008
293 CLIP, PCV VLV HOSE (ЧАСТЬ OF 283) 2007-2008
503 12597853 MANIFOLD, UPR INT (MACH) (INCLS 506) E (LY7) 2007-2008 01
504 12571079 MANIFOLD, LWR INT (INCLS 519) E (LY7) 2007-2008 01
506 PLUG, INT MANIF (ЧАСТЬ OF 503) 2007-2008
509 11518906 БОЛТ, HFH, RDUCD BDY, M8X1.25X165, 22 THD, 18 O.D., 8.8, GMW3359 (INT UPR MANIF) 2007-2008 04
510 11519176 БОЛТ, INT MANIF (M8X1.25X80) (4.081) E (LY7) 2007-2008 02
519 PIN, UPR INT MANIF LOC (ЧАСТЬ OF 504) 2007-2008
521 12595277 GASKET KIT, UPR INT MANIF E (LY7) 2007-2008 01
522 12598158 GASKET KIT, INT MANIF E (LY7) 2007-2008 01
523 11519170 БОЛТ-HFH, M8X1.25X45, 22 THD, 18 OD, 8.8, 3359GMW, REDUCED BODY. (LWR INT MANIF) 2007-2008 02
532 11588714 БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (F/INJN FUEL RL) 2007-2008 03
560 RAIL, F/INJN FUEL (СМ. ГРУППУ 03.000 FUEL INJECTION RAIL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2008
594 11609319 STUD, UPR INT MANIF SIGHT SHLD (3.671) E (LY7) 2007-2008 02
601 12576262 GASKET, EXH MANIF E (LY7) 2007-2008 01
602 12571102 MANIFOLD, EXH E (LY7) 2007-2008 01
610 12580706 SHIELD, EXH MANIF HT E (LY7) 2007-2008 01
611 24505098 БОЛТ, HFH, RND HD, 6X1X12.15, W/ANTI SEIZE, 14.2 O.D.DG PT, 10.9, 711 (EXH MANIF H/SHLD) 2007-2008 07
612 12582663 INSULATOR, EXH MANIF UPR E (LY7) 2007-2008 01
613 12616647 INSULATOR, EXH MANIF LWR (2.042) E26 (LY7) 2007-2008 01
621 12576263 GASKET, EXH MANIF E (LY7) 2007-2008 01
622 12571101 MANIFOLD, EXH E (LY7) 2007-2008 01
625 11518860 БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF H/SHLD) 2007-2008 14
630 12617267 SHIELD, EXH MANIF HT E (LY7) 2007-2008 01
631 24505098 БОЛТ, HFH, RND HD, 6X1X12.15, W/ANTI SEIZE, 14.2 O.D.DG PT, 10.9, 711 (EXH MANIF H/SHLD) 2007-2008 07
635 12581807 INSULATOR, EXH MANIF LWR E26 (LY7) 2007-2008 01
636 14093869 ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (EXH MANIF H/SHLD INSL) 2007-2008 03
637 11518950 STUD, HFH, M6X1X16, M6X1X14, 34.7 TL, 13 O.D., 10.9, GMW3359 (EXH MANIF H/SHLD) 2007-2008 01
701 12616994 BODY, THROT (W/THROT ACTR) (ACDelco #217-3103) E (LY7) 2007-2008 01
702 11519972 БОЛТ, THROT BODY (M6X1.0X50) E (LY7) 2007-2008 04
703 12593360 GASKET, THROT BODY (ACDelco #40-5083) E (LY7) 2007-2008 01
744 12611801 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685) EB, EE (LY7) 2007-2008 01
746 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (EVAP EMIS CNSTR PURGE SOL VLV BRKT) 2007-2008 01
747 12623676 TUBE, EVAP EMIS CNSTR PURGE E (LH2, LY7, JJA, JJB) 2008-2008 01
752 BRACKET, SOL VLV (ЧАСТЬ OF 744) 2007-2008
755 12629734 VALVE, INT MANIF TUNING (INCLS 756) E (LY7) 2008-2008 01
756 SEAL, INT MANIF TUNING VLV (ЧАСТЬ OF 755) 2007-2008
757 11588714 БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (INT MANIF TUNING VLV) 2007-2008 03
765 BRACKET, F/INJR WRG HARN 2007-2008
766 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (WRG HARN BRKT) 2007-2008 01
900 24574534 STUD, ENG WRG HARN BRKT (M6X1X20) (1.166) E (LY7) 2007-2008 01
