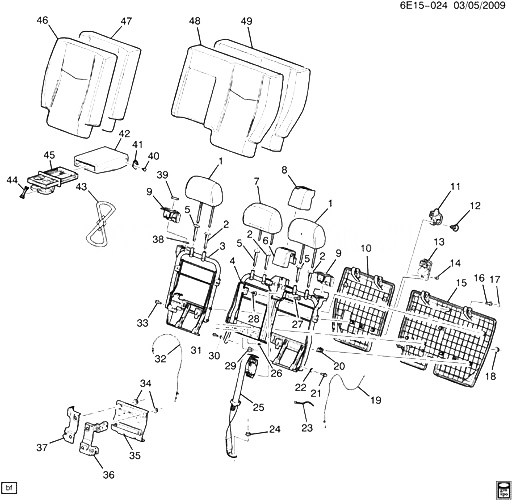

(6E15-024) - 2004-2009 E ЗАДНЕЕ СИДЕНЬЕ-BACK CADILLAC - SRX 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19122744 RESTRAINT, R/SEAT HD (CASHMERE) (*KIT1) E (AX4, 392) (EXPORT) 2007-2009 02
001 19122745 RESTRAINT, R/SEAT HD (CASHMERE) (*KIT1) E (392) (EXC A82) 2007-2009 02
001 88994869 RESTRAINT, R/SEAT HD (EBONY) (*KIT1) E (AX4, A82, 19I) (EXPORT) 2004-2009 02
001 88994870 RESTRAINT, R/SEAT HD (GRAY) (*KIT1) E (AX4, A82, 132) (EXC ATZ) (EXPORT) 2004-2009 02
001 88994872 RESTRAINT, R/SEAT HD (EBONY) (*KIT1) E (192) (EXC ATZ, AX4) 2004-2009 02
001 88994873 RESTRAINT, R/SEAT HD (GRAY) (*KIT1) E (132) (EXC ATZ, AX4) 2004-2009 02
002 19122625 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) (*KIT1) (11.376) E (19I) 2004-2009 03
002 19122701 GUIDE, R/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) (*KIT1) (11.376) E (39I) 2007-2009 03
002 88994731 GUIDE, R/SEAT H/RST (GRAY) (W/O BUTTON) (*KIT1) E (13I) 2004-2009 03
003 88994941 РАМА, R/SEAT BK CUSH (*KIT1) E 2004-2009 01
004 88994940 РАМА, R/SEAT BK CUSH (*KIT1) E 2004-2009 01
005 19122627 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) (*KIT1) (11.376) E (19I) 2004-2009 03
005 19122702 GUIDE, R/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) (*KIT1) (11.376) E (39I) 2007-2009 03
005 88994730 GUIDE, R/SEAT H/RST (GRAY) (W/BUTTON) (*KIT1) E (13I) 2004-2009 03
006 COVER, R/SEAT CTR BELT RETR (*KIT1) 2004-2009
007 19122743 RESTRAINT, RR CTR ST HD (CASHMERE) (*KIT1) E (392) 2007-2009 01
007 88993439 RESTRAINT, RR CTR ST HD (EBONY) (*KIT1) E (192) 2004-2009 01
007 88993440 RESTRAINT, RR CTR ST HD (GRAY) (*KIT1) E (132) 2004-2009 01
008 88898330 COVER, R/SEAT SHLDR BELT RETR OPG TR (*KIT1) E (EXC ATZ) 2004-2009 01
009 19122739 HANDLE, R/SEAT BK CUSH LAT REL (CASHMERE) (*KIT1) E (39I) 2007-2009 02
009 88992409 HANDLE, R/SEAT BK CUSH LAT REL (GRAY) (FOLDING) (*KIT1) E (13I) 2004-2009 02
009 88992410 HANDLE, R/SEAT BK CUSH LAT REL (EBONY) (FOLDING) (*KIT1) E (19I) 2004-2009 02
010 19122750 PANEL, R/SEAT BK CUSH (CASHMERE) (*KIT1) E (39I) 2007-2009 01
010 88994898 PANEL, R/SEAT BK CUSH (EBONY) (*KIT1) E (19I) 2004-2009 01
010 88994899 PANEL, R/SEAT BK CUSH (GRAY) (*KIT1) E (13I) 2004-2009 01
011 19122766 GUIDE, R/SEAT SHLDR BELT (INCLS 12) (CASHMERE) (*KIT1) E (39I) 2007-2009 01
011 88994735 GUIDE, R/SEAT SHLDR BELT (INCLS 12) (EBONY) (*KIT1) E (19I) (EXC ATZ) 2004-2009 01
011 88994737 GUIDE, R/SEAT SHLDR BELT (INCLS 12) (PEWTER) (*KIT1) E (13I) (EXC ATZ) 2004-2009 01
012 БОЛТ, R/SEAT SHLDR BELT GUIDE) (ЧАСТЬ OF 11 (*KIT1) 2004-2009
013 19122740 HANDLE, R/SEAT BK CUSH LAT REL (CASHMERE) (FLIP FOLD) (*KIT1) E (39I) 2007-2009 01
013 88992415 HANDLE, R/SEAT BK CUSH LAT REL (GRAY) (FLIP FOLD) (*KIT1) E (13I) 2004-2009 01
013 88992416 HANDLE, R/SEAT BK CUSH LAT REL (EBONY) (FLIP FOLD) (*KIT1) E (19I) 2004-2009 01
014 БОЛТ, R/SEAT BK CUSH LAT REL HDL (*KIT1) 2004-2009
015 19122749 PANEL, R/SEAT BK CUSH (CASHMERE) (*KIT1) E (39I) 2007-2009 01
015 88994561 PANEL, R/SEAT BK CUSH (EBONY) (*KIT1) E (19I) 2004-2009 01
015 88994563 PANEL, R/SEAT BK CUSH (GRAY) (*KIT1) E (13I) 2004-2009 01
016 БОЛТ, R/SEAT (*KIT1) 2004-2009
017 19122741 CAP, R/SEAT BK CUSH PNL БОЛТ (CASHMERE) (FOLDING HANDLE) (*KIT1) E (39I) 2007-2009 02
017 88992503 CAP, R/SEAT BK CUSH PNL БОЛТ (GRAY) (FOLDING) (*KIT1) E (13I) 2004-2009 02
017 88992504 CAP, R/SEAT BK CUSH PNL БОЛТ (EBONY) (FOLDING) (*KIT1) E (19I) 2004-2009 02
018 88993062 ГАЙКА, R/SEAT CUSH (*KIT1) E 2004-2009 08
019 88994827 CABLE, R/SEAT BK CUSH LAT (MAY ALSO REQUIRE 88994828 ADJUSTER) (*KIT1) E 2004-2009 01
020 RETAINER, R/SEAT BK PANEL (*KIT1) 2004-2009
021 88992487 БОЛТ, R/SEAT (M10X1.5, 9MM SHLDR) (OUTER ATTACHMENT) (*KIT1) E 2004-2009 AR
022 88992524 BUSHING, R/SEAT (*KIT1) (11.620) E 2004-2009 01
023 12355066 STRAP, PLASTIC ADJ TIE (215MM LG) (R/SEAT HTR CONT WRG HARN CONN) (*KIT1) (8.965) (ACDelco #16TS825) 2004-2009 02
024 11516078 ГАЙКА, R/SEAT BELT (RETR SI) (CTR) (M12X1.75X18) (*KIT1) (8.917) E (AX4, A82, IL2) (EXC ATZ) (EXPORT) 2006-2009 02
025 15224766 BELT, R/SEAT CTR (RETR SI) (EBONY) (*KIT1) E (AX4, A82, 19I) (EXC ATZ) (EXPORT) 2004-2007 01
025 25833946 BELT, R/SEAT CTR (RETR SI) (GRAY) (*KIT1) E (A82, AX4, 13I) (EXC ATZ) (EXPORT) 2006-2007 01
025 25833948 BELT, R/SEAT CTR (RETR SI) (CASHMERE) (*KIT1) E (A82, AX4, 392) (EXC ATZ) (EXPORT) 2007-2009 01
026 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (R/SEAT BK CUSH CVR (PUSH IN)) (*KIT1) 2004-2009 09
027 11562368 БОЛТ, R/SEAT BELT (RETR SI) (M12X1.75X35.75) (*KIT1) (16.714) E (IL2) (EXC ATZ) 2004-2009 01
028 RETAINER, R/SEAT BK PANEL (*KIT1) 2004-2009
029 11517068 NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (R/SEAT A/RST FRM BRKT) (*KIT1) 2004-2009 08
030 88992524 BUSHING, R/SEAT (11.620) E 2004-2009 01
031 22035124 БОЛТ, R/SEAT CUSH (HEX W/WA) (*KIT1) E 2004-2009 01
032 88993029 CABLE, R/SEAT BK CUSH LAT (*KIT1) E 2004-2009 01
033 88993615 БОЛТ, R/SEAT CUSH (INBOARD) (SHOULDER W/BUSHING) (*KIT1) E 2004-2009 01
034 16512106 ГАЙКА, R/SEAT BK CUSH PIV SUPT (M4X0.7, 4.85MM THK) (*KIT1) (2.679) E 2004-2009 13
035 88993776 BRACKET, R/SEAT (CTR) (*KIT1) E 2004-2009 01
036 88993777 BRACKET, R/SEAT (*KIT1) E 2004-2009 01
037 88993778 BRACKET, R/SEAT (*KIT1) E 2004-2009 01
038 11570654 ГАЙКА, R/SEAT (4.2 X 1.41) (FITS 8.75 SQ HOLE) (*KIT1) (9.665) E 2004-2009 01
039 88993845 PAD, R/SEAT BK CUSH (PLASTIC INSERT) (*KIT1) E 2004-2009 02
040 19124785 БОЛТ, R/SEAT A/RST TRAY (ЧАСТЬ OF 42) (*KIT1) E 2004-2009 03
041 RETAINER, R/SEAT A/RST TRAY) (ЧАСТЬ OF 42) (*KIT1) 2004-2009
042 19122748 ARMREST, R/SEAT (INCLS 40, 41, 44, 45) (CASHMERE) (W/CUPДЕРЖАТЕЛЬ) (*KIT1) E (39I) 2007-2009 01
042 88993353 ARMREST, R/SEAT (INCLS 40, 41, 44, 45) (GRAY) (W/CUPДЕРЖАТЕЛЬ) (*KIT1) E (13I) 2004-2009 01
042 88993354 ARMREST, R/SEAT (INCLS 40, 41, 44, 45) (EBONY) (W/CUPДЕРЖАТЕЛЬ) (*KIT1) E (19I) 2004-2009 01
043 19123366 STRAP, R/SEAT A/RST (EBONY) (*KIT1) (PLACE LARGE LOOP AROUND BOTTOM CORNERS OF ARMREST) (SECURE CLIP TO D-RING ON FLR PAN PULL STRAP FREE END TO ADJ) E 2004-2009 01
044 19124749 SUPPORT, R/SEAT A/RST CUP HLDR CTR (ЧАСТЬ OF 42) (*KIT1) E 2004-2009 01
045 19124748 ДЕРЖАТЕЛЬ, R/SEAT A/RST CUP (ЧАСТЬ OF 42) (*KIT1) E 2004-2009 01
046 19122767 COVER, R/SEAT BK CUSH (CASHMERE) (*KIT1) E (392) 2007-2009 01
046 88994503 COVER, R/SEAT BK CUSH (GRAY) (*KIT1) E (132) 2004-2009 01
046 88994504 COVER, R/SEAT BK CUSH (EBONY) (*KIT1) E (192) (EXC ATZ) 2004-2009 01
047 88994850 PAD, R/SEAT BK CUSH (*KIT1) E 2004-2009 01
048 19122768 COVER, R/SEAT BK CUSH (CASHMERE) (*KIT1) E (AQU, 392) 2007-2009 01
048 19122977 COVER, R/SEAT BK CUSH (GRAY) (*KIT1) E (132) (EXC AQU) 2006-2009 01
048 19122978 COVER, R/SEAT BK CUSH (CASHMERE) (*KIT1) E (392) (EXC AQU) 2007-2009 01
048 19122979 COVER, R/SEAT BK CUSH (EBONY) (*KIT1) E (192) (EXC AQU) 2006-2009 01
048 88994511 COVER, R/SEAT BK CUSH (GRAY) (*KIT1) E (AQU, 132) 2006-2009 01
048 88994512 COVER, R/SEAT BK CUSH (EBONY) (*KIT1) E (AQU, 192) (EXC ATZ) 2006-2009 01
049 88994849 PAD, R/SEAT BK CUSH (*KIT1) E 2004-2009 01
K01 15140360 SEAT, RR (INCLS 1-49) (GRAY) E (AX4, A82, 132) (EXC ATZ) (EXPORT) 2007-2009 01
K01 15140361 SEAT, RR (INCLS 1-49) (EBONY) E (AX4, A82, 192) (EXC ATZ) (EXPORT) 2007-2009 01
K01 15140364 SEAT, RR (INCLS 1-49) (GRAY) E (AQU, 132) (EXC ATZ, AX4, A82) 2007-2009 01
K01 15210157 SEAT, RR (INCLS 1-49) (CASHMERE) E (AQU, 392) (EXC ATZ, AX4, A82) 2007-2009 01
K01 15283362 SEAT, RR (INCLS 1-49) (GRAY) E (132) (EXC AQU, ATZ, AX4, A82) 2007-2009 01
K01 15283363 SEAT, RR (INCLS 1-49) (EBONY) E (192) (EXC AQU, ATZ, AX4, A82) 2007-2009 01
K01 15283364 SEAT, RR (INCLS 1-49) (CASHMERE) E (392) (EXC AQU, ATZ, AX4, A82) 2007-2009 01
