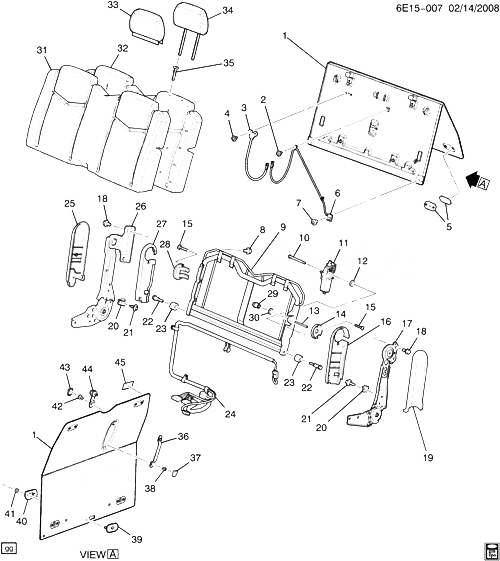

(6E15-007) - 2004-2009 E ЗАДНЕЕ СИДЕНЬЕ #2 BACK(AM0) CADILLAC - SRX 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19122774 PANEL, R/SEAT BK CUSH FIL (INCLS 2, 5-7, 36-45) (CASHMERE) (#2) (W/VINYL STRAP) E (39I) 2007-2009 01
001 88898475 PANEL, R/SEAT BK CUSH FIL (INCLS 2, 5-7, 36-45) (EBONY) (#2) (W/VINYL STRAP) E (19I) 2004-2009 01
001 88898476 PANEL, R/SEAT BK CUSH FIL (INCLS 2, 5-7, 36-45) (GRAY) (#2) (W/VINYL STRAP) E (13I) 2004-2009 01
002 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (ЧАСТЬ OF 1) (8.977) 2004-2009 02
003 88898388 SENSOR, R/SEAT #2 PASS/CARGO PRESENCE E 2004-2009 01
004 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (R/SEAT #2) (8.977) 2004-2009 02
005 19124438 RETAINER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (GRAY) (#2) E (13I) 2004-2009 03
005 19124439 RETAINER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (EBONY) (#2) E (19I) 2004-2009 03
005 19124440 RETAINER, R/SEAT BK CUSH (ЧАСТЬ OF 1) (CASHMERE) (#2) E (39I) 2007-2009 03
007 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (ЧАСТЬ OF 1) (8.977) 2004-2009 01
008 24503695 БОЛТ, HEX W/CON WA, M8X1.25X30, 25THD, 17 O.D., 9.8, PO (R/SEAT RECL) 2004-2009 02
009 88898389 РАМА, R/SEAT #2 BK CUSH E 2004-2009 01
010 88993063 БОЛТ, R/SEAT (8-18X0.5, 0.44 OD) (CONTROL HEADS BOTTOM PANEL MTG) E 2004-2009 01
011 88898297 MOTOR, R/SEAT #2 BK PIV ACTR (180 DEGREE MOTOR) (LOCATED IN BK CUSHION ASM) (ACDelco #88898297) E 2004-2009 01
012 88993014 INSULATOR, R/SEAT #2 BK PIV MTR MT E 2004-2009 01
013 88992197 SHAFT, R/SEAT #2 BK PIV E 2004-2009 01
014 25773273 SWITCH, R/SEAT #2 FLDG ACTR (ON BODY SIDE PANEL) (EBONY) E 2004-2009 02
015 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (PLASTICS TO РАМА) (8.977) 2004-2009 01
016 19122786 COVER, R/SEAT RECL INR FIN (CASHMERE) E (39I) 2007-2009 01
016 88898416 COVER, R/SEAT RECL INR FIN (GRAY) E (13I) 2004-2009 01
016 88992535 COVER, R/SEAT RECL INR FIN (EBONY) E (19I) 2004-2009 01
017 88898301 RECLINER, R/SEAT (#2) E 2004-2009 01
018 11516941 БОЛТ, HEX HD CONICAL SPR WA, M10X1.5X20 (R/SEAT RECL) 2004-2009 08
019 19122784 COVER, R/SEAT RECL OTR FIN (CASHMERE) (UPPER) (#2) E (39I) 2007-2009 01
019 88898424 COVER, R/SEAT RECL OTR FIN (GRAY) (UPPER) (#2) E (13I) 2004-2009 01
019 88992533 COVER, R/SEAT RECL OTR FIN (EBONY) (UPPER) (#2) E (19I) 2004-2009 01
020 88992526 SUPPORT, R/SEAT E 2004-2009 02
021 88993013 БОЛТ, R/SEAT CUSH FRM E 2004-2009 02
022 88993013 БОЛТ, R/SEAT CUSH FRM E 2004-2009 02
023 88992525 BUMPER, R/SEAT BK CUSH LAT E 2004-2009 02
024 88898313 WIRE, R/SEAT #2 BK CUSH PAD E 2004-2009 01
025 19122785 COVER, R/SEAT RECL OTR FIN (CASHMERE) (UPPER) (#2) E (39I) 2007-2009 01
025 88898420 COVER, R/SEAT RECL OTR FIN (GRAY) (#2) E (13I) 2004-2009 01
025 88992534 COVER, R/SEAT RECL OTR FIN (EBONY) (#2) E (19I) 2004-2009 01
026 88898300 RECLINER, R/SEAT (#2) E 2004-2009 01
027 19122787 COVER, R/SEAT RECL INR FIN (CASHMERE) E (39I) 2007-2009 01
027 88898412 COVER, R/SEAT RECL INR FIN (GRAY) E (13I) 2004-2009 01
027 88992536 COVER, R/SEAT RECL INR FIN (EBONY) E (19I) 2004-2009 01
028 19122789 COVER, R/SEAT BK CUSH CTR PIV SUPT (CASHMERE) E (39I) 2007-2009 01
028 88898427 COVER, R/SEAT BK CUSH CTR PIV SUPT (EBONY) E (19I) 2004-2009 01
028 88898428 COVER, R/SEAT BK CUSH CTR PIV SUPT (GRAY) E (13I) 2004-2009 01
029 88992530 BEARING, R/SEAT #2 BK PIV SHF (12MM) E 2004-2009 01
030 88992197 SHAFT, R/SEAT #2 BK PIV E 2004-2009 01
031 19122771 COVER, R/SEAT #2 BK CUSH (CASHMERE) E (392) (EXC AS6) 2007-2009 01
031 19122773 COVER, R/SEAT #2 BK CUSH (CASHMERE) E (AM0, AS6, 392) 2007-2009 01
031 88994519 COVER, R/SEAT #2 BK CUSH (GRAY) E (132) (EXC AS6) 2006-2009 01
031 88994520 COVER, R/SEAT #2 BK CUSH (EBONY) E (192) (EXC AS6) 2004-2009 01
031 88994527 COVER, R/SEAT #2 BK CUSH (GRAY) E (AM0, AS6, 132) 2004-2009 01
031 88994528 COVER, R/SEAT #2 BK CUSH (EBONY) E (AM0, AS6, 192) 2004-2009 01
032 88898294 PAD, R/SEAT #2 BK CUSH (W/HEAD REST HOLES) E 2004-2009 01
033 19122781 COVER, R/SEAT #2 H/RST (ЧАСТЬ OF 34) (CASHMERE) E (392) 2007-2009 02
033 88993119 COVER, R/SEAT #2 H/RST (ЧАСТЬ OF 34) (EBONY) E (192) 2004-2009 02
033 88993121 COVER, R/SEAT #2 H/RST (ЧАСТЬ OF 34) (GRAY) E (132) 2004-2009 02
034 19122780 RESTRAINT, R/SEAT #2 HD (INCLS 33) (CASHMERE) (W/COVER) E (392) 2007-2009 02
034 88993151 RESTRAINT, R/SEAT #2 HD (INCLS 33) (EBONY) (W/COVER) E (192) 2004-2009 02
034 88993152 RESTRAINT, R/SEAT #2 HD (INCLS 33) (GRAY) (W/COVER) E (132) 2004-2009 02
035 19122701 GUIDE, R/SEAT #2 H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) (11.376) E (39I) 2007-2007 03
035 19122702 GUIDE, R/SEAT #2 H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) (11.376) E (39I) 2007-2007 03
035 19122746 GUIDE, R/SEAT #2 H/RST (CASHMERE) (3 5/8 INCHES) (W/O BUTTON) E (AM0, 39I) 2007-2009 01
035 19122747 GUIDE, R/SEAT #2 H/RST (CASHMERE) (3 5/8 INCHES) (W/BUTTON) E (AM0, 39I) 2007-2009 01
035 88993365 GUIDE, R/SEAT #2 H/RST (GRAY) (W/BUTTON) E (13I) 2004-2009 03
035 88993367 GUIDE, R/SEAT #2 H/RST (EBONY) (W/BUTTON) E (19I) 2004-2009 03
035 88993667 GUIDE, R/SEAT #2 H/RST (GRAY) (W/O BUTTON) E (13I) 2004-2009 03
035 88993668 GUIDE, R/SEAT #2 H/RST (EBONY) (W/O BUTTON) E (19I) 2004-2009 03
036 19124502 STRAP, R/SEAT #2 PULL (ЧАСТЬ OF 1) (GRAY) (W/WEBBED STRAP) (11.629) E (13I) 2004-2009 01
036 19124503 STRAP, R/SEAT #2 PULL (ЧАСТЬ OF 1) (EBONY) (W/WEBBED STRAP) (11.629) E (19I) 2004-2009 01
036 19124504 STRAP, R/SEAT #2 PULL (ЧАСТЬ OF 1) (CASHMERE) (W/WEBBED STRAP) (11.629) E (39I) 2007-2009 01
037 COVER, R/SEAT #2 PULL STRAP (ЧАСТЬ OF 1) 2004-2009
038 БОЛТ, R/SEAT #2 BK CUSH PULL STRP (ЧАСТЬ OF 1) 2004-2009
039 19124432 BEZEL KIT, R/SEAT #2 BK CUSH LAT REL HDL (INCLS 40, 41) (ЧАСТЬ OF 1) (EBONY) E (192) 2004-2009 01
039 19124433 BEZEL KIT, R/SEAT #2 BK CUSH LAT REL HDL (INCLS 40, 41) (ЧАСТЬ OF 1) (GRAY) E (132) 2004-2009 01
039 19124434 BEZEL KIT, R/SEAT #2 BK CUSH LAT REL HDL (INCLS 40, 41) (ЧАСТЬ OF 1) (CASHMERE) E (392) 2007-2009 01
040 BEZEL, R/SEAT #2 BK CUSH LAT REL HDL (ЧАСТЬ OF 1, 39) 2004-2009
041 RETAINER, R/SEAT #2 BK CUSH LAT REL HDL BZL (ЧАСТЬ OF 1, 39) 2004-2009
042 БОЛТ, R/SEAT #2 BK CUSH PULL STRP (ЧАСТЬ OF 1) 2004-2009
043 COVER, R/SEAT #2 PULL STRAP (ЧАСТЬ OF 1) 2004-2009
044 19122778 HANDLE, R/SEAT #2 PULL (ЧАСТЬ OF 1) (CASHMERE) (11.610) E (39I) 2007-2009 03
044 88994885 HANDLE, R/SEAT #2 PULL (ЧАСТЬ OF 1) (EBONY) E (19I) 2004-2009 01
044 88994886 HANDLE, R/SEAT #2 PULL (ЧАСТЬ OF 1) (GRAY) E (13I) 2004-2009 01
045 25769663 LABEL, RR CTR ST SAFETY INFO (ЧАСТЬ OF 1) E (AM0) 2004-2009 02
