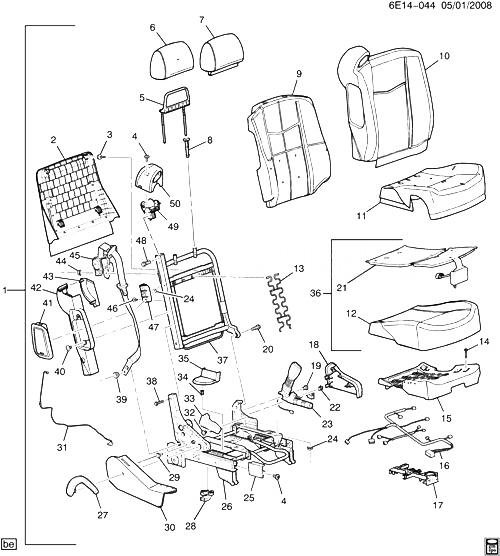

(6E14-044) - 2007-2009 EB СИДЕНЬЕ ПАССАЖИРА (EXC POWER ADJUSTER AH8) CADILLAC - SRX 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10382963 SEAT, PASS (INCLS 2-50) (GRAY) EB (AQ9, 132) (EXC AH8, AL2, AX4, KA1, MTF) 2007-2009 01
001 10382964 SEAT, PASS (INCLS 2-50) (EBONY) EB (AQ9, 192) (EXC AH8, AL2, AX4, KA1, MTF) 2007-2009 01
002 19122658 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (CASHMERE) (W/MESH MAP PKT) EB (39I) 2007-2009 01
002 88895407 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (GRAY) (W/MESH MAP PKT) EB (13I) 2007-2009 01
002 88992614 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (EBONY) (W/MESH MAP PKT) EB (19I) 2007-2009 01
003 10421018 RETAINER, P/SEAT BK CUSH CVR (ЧАСТЬ OF 2) (NATURAL) (4MM HOLE, 33MM) (15.100) E 2007-2009 03
004 88897272 БОЛТ, P/SEAT (TOWER COVER) E 2007-2009 06
005 88897670 SUPPORT, P/SEAT H/RST E 2007-2009 01
006 88898400 PAD, P/SEAT H/RST E 2007-2009 01
007 19122828 COVER, P/SEAT H/RST (CASHMERE) E (392) 2007-2009 01
007 88897971 COVER, P/SEAT H/RST (GRAY) E (132) 2007-2009 01
007 88992582 COVER, P/SEAT H/RST (EBONY) E (192) 2007-2009 01
008 19122625 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) E (19I) 2007-2009 01
008 19122627 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) E (19I) 2007-2009 01
008 19122701 GUIDE, P/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) E (39I) 2007-2009 01
008 19122702 GUIDE, P/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) E (39I) 2007-2009 01
008 88994730 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) E (13I) 2007-2009 01
008 88994731 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) E (13I) 2007-2009 01
009 88898336 PAD, P/SEAT BK CUSH EB (EXC AH8) 2007-2009 01
010 19122819 COVER, P/SEAT BK CUSH (CASHMERE) EB (AQ9, 392) (EXC KA1) 2007-2009 01
010 88994455 COVER, P/SEAT BK CUSH (GRAY) EB (AQ9, 132) (EXC KA1) 2007-2009 01
010 88994456 COVER, P/SEAT BK CUSH (EBONY) EB (AQ9, 192) (EXC KA1) 2007-2009 01
011 19122823 COVER, P/SEAT CUSH (CASHMERE) EB (AQ9, 392) (EXC AH8, AL2, KA1) 2007-2009 01
011 88994471 COVER, P/SEAT CUSH (GRAY) EB (AQ9, 132) (EXC AH8, AL2, KA1, MTF) 2007-2009 01
011 88994472 COVER, P/SEAT CUSH (EBONY) EB (AQ9, 192) (EXC AH8, KA1, MTF) 2007-2009 01
012 PAD, P/SEAT CUSH (ЧАСТЬ OF 36) 2007-2009
013 SUPPORT, P/SEAT BK CUSH PAD (ЧАСТЬ OF 37) 2007-2009
014 БОЛТ, P/SEAT CUSH FRM (ЧАСТЬ OF 15) 2007-2009
015 88897610 РАМА, P/SEAT CUSH (INCLS 14) (MAN) EB (EXC AH8) 2007-2009 01
016 19123445 HARNESS, P/SEAT WRG (INCLS 17) EB26 (AQ9, IL2) (EXC AH8, AL2, AX4, KA1, MTF) 2007-2009 01
017 SHIELD, WRG HARNESS (ЧАСТЬ OF 16) 2007-2009
018 19122660 COVER, P/SEAT RECL LWR FIN (INCLS 22) (CASHMERE) (INR) EB (39I) 2007-2009 01
018 88895371 COVER, P/SEAT RECL LWR FIN (INCLS 22) (GRAY) (INR) EB (13I) 2007-2009 01
018 88992616 COVER, P/SEAT RECL LWR FIN (INCLS 22) (EBONY) (INR) EB (19I) 2007-2009 01
019 88952627 ГАЙКА, P/SEAT BELT (BKL SI) (TUBE NUT) (11.556) E (AQ9) 2007-2009 01
020 88952646 БОЛТ, P/SEAT BK CUSH FRM (11.628) E 2007-2009 01
021 SENSOR, INFL RST FRT PASS PRESENCE (ЧАСТЬ OF 36) 2007-2009
022 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 18) 2007-2009
023 BELT, P/SEAT (BKL SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
024 11517068 NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (INFL RST P/SEAT SI MDL) 2007-2009 04
025 19122813 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) EB (39I) 2007-2009 01
025 88898402 COVER, P/SEAT ADJR FIN (GRAY) (FRT) EB (13I) 2007-2009 01
025 88993349 COVER, P/SEAT ADJR FIN (EBONY) (FRT) EB (19I) 2007-2009 01
026 19123457 ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (MAN) EB (EXC AH8) 2007-2009 01
027 19122674 HANDLE, P/SEAT RECL (CASHMERE) EB (39I) (EXC AH8) 2007-2009 01
027 88949044 HANDLE, P/SEAT RECL (GRAY) EB (13I) (EXC AH8) 2007-2009 01
027 88992628 HANDLE, P/SEAT RECL (EBONY) EB (19I) (EXC AH8) 2007-2009 01
028 15817518 SENSOR, INFL RST FRT PASS POSITION E 2007-2009 01
029 RETAINER, P/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 30) 2007-2009
030 19122809 COVER, P/SEAT OTR RECL FIN (INCLS 29) (CASHMERE) (MANUAL) EB (39I) (EXC AH8) 2007-2009 01
030 88994760 COVER, P/SEAT OTR RECL FIN (INCLS 29) (EBONY) (MANUAL) EB (19I) (EXC AH8) 2007-2009 01
030 88994761 COVER, P/SEAT OTR RECL FIN (INCLS 29) (GRAY) (MANUAL) EB (13I) (EXC AH8) 2007-2009 01
031 15829204 HARNESS, INFL RST WRG E26 2007-2009 01
032 00332364 RETAINER, P/SEAT SHLDR BELT (8.950) E 2007-2009 08
033 88895385 BEZEL, P/SEAT BELT OPG (BKL SI) (GRAY) EB (13I) 2007-2009 01
033 88897619 BEZEL, P/SEAT SHLDR BELT OPG EB 2007-2009 01
033 88992618 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) EB (AQ9, 19I) 2007-2009 01
034 RETAINER, P/SEAT INR ADJR RR FIN CVR (ЧАСТЬ OF 35) 2007-2009
035 19122816 COVER, P/SEAT ADJR FIN (INCLS 34) (CASHMERE) (RR) E (39I) 2007-2009 01
035 88898395 COVER, P/SEAT ADJR FIN (INCLS 34) (GRAY) (RR) E (13I) 2007-2009 01
035 88993350 COVER, P/SEAT ADJR FIN (INCLS 34) (EBONY) (RR) E (19I) 2007-2009 01
036 19124202 МОДУЛЬ KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 12, 21) (INCLS PAD SENSOR ASM) EB (AQ9) 2007-2009 01
037 88849035 РАМА, P/SEAT BK CUSH (INCLS 13) (W/SUSPENSION SUPPORT) EB (EXC AL2) 2007-2009 01
038 88897643 БОЛТ, P/SEAT RECL (RECL TO FRM) E 2007-2009 02
039 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) E 2007-2009 01
040 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK CUSH SI OTR FAC) 2007-2009 07
041 15939007 МОДУЛЬ, P/SEAT SI INFL RST (CASHMERE) EB (39I) 2007-2009 01
041 25760561 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) E (13I) 2007-2007 01
041 25760562 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) EB (19I) 2007-2007 01
042 88897617 PANEL, P/SEAT BK CUSH SI BOLS EB 2007-2009 01
043 88897619 BEZEL, P/SEAT SHLDR BELT OPG EB 2007-2009 01
044 11517996 ГАЙКА, P/SEAT SHLDR BELT RETR (M10X1.5, 11.2 THK) (8.917) E 2007-2009 01
045 BELT, P/SEAT (RETR SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (GRAY) 2007-2009
046 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (P/SEAT SI INFL RST MDL) 2007-2009 02
047 88949040 BRACKET, INFL RST P/SEAT SI MDL (11.561) E 2007-2009 01
048 88897644 БОЛТ, P/SEAT ADJR (ADJR TO FRM) E 2007-2009 02
049 88897641 ROLLER, P/SEAT SHLDR BELT EB 2007-2009 01
050 88897615 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) EB 2007-2009 01
