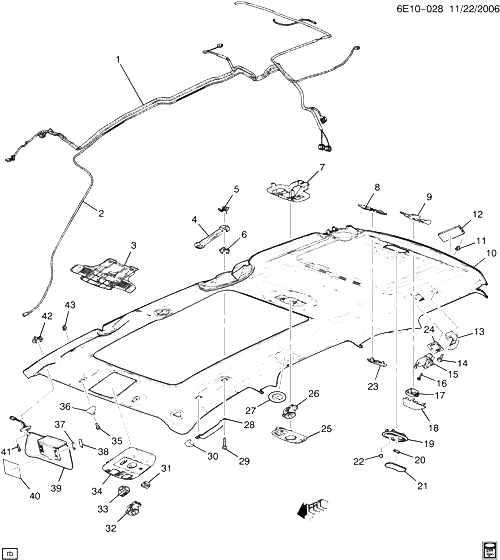

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, DM RDG LP S/S ILLUM MIR WRG (ЧАСТЬ OF 10) |
|
2004-2008 |
|
| 002 |
15218953 |
HOSE, WSWA SOLV CNTNR (RR) (ACDelco #15218953)
| E |
2004-2009 |
01 |
|
| 003 |
19121463 |
RETAINER, RF CNSL (PUSH IN) (SUPT BK PLATE FOR VEHICLES WITH WITHOUT INTRUSION) (FRT CNSL SUPT) (SUPT BK PLT FOR VEHS W/ W/O INTRUSION) |
E |
2006-2008 |
01 |
| 004 |
88952102 |
RETAINER, ASST HDL BRKT (257X56X31) |
E |
2004-2009 |
02 |
| 005 |
25725191 |
CLIP, HDLNG T/PNL (GREEN) (18X12.5, SAE 1050STL) (CLIP TO HOLD M4.2X1.41 SCREW, PNL RING 0.94-3.5)
| EB |
2007-2007 |
04 |
|
| 006 |
88952116 |
BRACKET, ASST HDL (HDLNR SUPT BRKT ASST HNDL) |
E |
2004-2009 |
04 |
| 007 |
88956193 |
RETAINER, RF CNSL (PUSH IN) (ЛЮК MID OH CNSL SUPT) |
E (CF5, C3B) |
2004-2008 |
01 |
| 008 |
88956208 |
SUPPORT, L/GATE TR |
E |
2004-2009 |
01 |
| 008 |
89022467 |
SUPPORT, L/GATE TR |
E |
2004-2009 |
01 |
| 009 |
88956207 |
RETAINER, RF CNSL (PUSH IN) (SUPPORT TRIM BEZEL) |
E |
2004-2008 |
01 |
| 010 |
19151216 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (CF5, C57, UG1, U2V, 39I) (EXC AU5, AU8, UTA, U2K) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151218 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (CF5, C57, U2R, U2V, 13I, 19I) (EXC AU5, AU8, UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151218 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (CF5, C57, U2S, U2Y, 13I, 19I) (EXC UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151219 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (CF5, C57, U2R, U2V, 39I) (EXC AU5, AU8, UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151219 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (CF5, C57, U2S, 39I) (EXC UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151219 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (CF5, C57, U2Y, 39I) (EXC UG1, UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151224 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (C3B, C57, U2R, U2V, 13I, 19I) (EXC AU5, AU8, UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151224 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (C3B, C57, U2S, 13I, 19I) (EXC UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151224 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (C3B, C57, U2Y, 13I, 19I) (EXC UG1, UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151225 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (C3B, C57, U2R, U2V, 39I) (EXC AU5, AU8, UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151225 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (C3B, C57, U2S, 39I) (EXC UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151225 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (C3B, C57, U2Y, 39I) (EXC UG1, UTA, U2K) |
2007-2007 |
01 |
| 010 |
19151228 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (C3B, C57, U2K, U2R, U2S, U2V, 39I) (EXC AU5, AU8, UTA) |
2007-2008 |
01 |
| 010 |
19151230 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (AU5, CF5, C57, UTA, U2S, U2X, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 010 |
19151230 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (AU8, CF5, C57, UTA, U2R, U2S, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 010 |
19151230 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EE (AU5, CF5, C57, U2X, 13I, 19I) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151230 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EE (CF5, C57, U2R, 13I, 19I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151230 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EE (CF5, C57, U2S, U2Y, 13I, 19I) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151231 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (AU8, CF5, C57, UTA, U2R, U2S, U2Y, 39I) |
2007-2007 |
01 |
| 010 |
19151231 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EE (AU5, CF5, C57, U2X, 39I) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151231 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EE (CF5, C57, U2R, 39I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151231 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EE (CF5, C57, U2S, U2Y, 39I) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151233 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (AU5, C3B, C57, UTA, U2S, U2X, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 010 |
19151233 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (AU8, C3B, C57, UTA, U2R, U2S, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 010 |
19151233 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EE (AU5, C3B, C57, U2X, 13I, 19I) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151233 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EE (C3B, C57, U2R, 13I, 19I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151233 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EE (C3B, C57, U2S, U2Y, 13I, 19I) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151234 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (AU5, C3B, C57, UTA, U2S, U2X, U2Y, 39I) |
2007-2007 |
01 |
| 010 |
19151234 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (AU8, C3B, C57, UTA, U2R, U2S, U2Y, 39I) |
2007-2007 |
01 |
| 010 |
19151234 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EE (AU5, C3B, C57, U2X, 39I) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151234 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EE (C3B, C57, U2R, 39I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151234 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EE (C3B, C57, U2S, U2Y, 39I) (EXPORT) |
2007-2007 |
01 |
| 010 |
19151363 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (AU5, C3B, C57, U2S, 13I, 19I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19151364 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (AU5, C3B, C57, U2S, 39I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19167413 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (CF5, C57, U2K, U2R, U2S, U2V, 13I, 19I) (EXC AU5, AU8, UTA) |
2007-2007 |
01 |
| 010 |
19167414 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB (CF5, C57, U2K, U2R, U2S, U2V, 39I) (EXC AU5, AU8, UTA) |
2007-2007 |
01 |
| 010 |
19177860 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB (C3B, C57, U2K, U2R, U2S, U2V, 13I, 19I) (EXC AU5, AU8, UTA) |
2007-2008 |
01 |
| 010 |
19177864 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ EURO АНТЕННА ПРОВОДА) |
EB (AU5, CF5, C57, UTA, U2S, U2X, U2Y, 39I) |
2007-2009 |
01 |
| 010 |
19206988 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, CF5, C57, U2S, 13I, 19I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19206988 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, CF5, C57, U2Y, 13I, 19I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19206989 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, CF5, C57, U2S, 39I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19206989 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, CF5, C57, U2Y, 39I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19206991 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ EURO АНТЕННА ПРОВОДА) |
EB26 (AU8, CF5, C57, U2S, U2Y, 13I, 19I) (EXC UTA) |
2007-2009 |
01 |
| 010 |
19206992 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ EURO АНТЕННА ПРОВОДА) |
EB26 (AU8, CF5, C57, U2S, U2Y, 39I) (EXC UTA) |
2007-2009 |
01 |
| 010 |
19206994 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, CF5, C57, U2S, U2X, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 010 |
19206994 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ JAPAN АНТЕННА ПРОВОДА) |
EE26 (AU5, CF5, C57, UTA, U2S, U2X, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 010 |
19206995 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, CF5, C57, UTA, U2S, U2X, U2Y, 39I) |
2007-2007 |
01 |
| 010 |
19206995 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ JAPAN АНТЕННА ПРОВОДА) |
EE26 (AU5, CF5, C57, U2S, U2X, U2Y, 39I) |
2007-2007 |
01 |
| 010 |
19206997 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, C3B, C57, U2S, 13I, 19I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19206997 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, C3B, C57, U2Y, 13I, 19I) (EXC UG1, UTA) |
2007-2007 |
01 |
| 010 |
19206998 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, C3B, C57, U2S, 39I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19206998 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ JAPAN АНТЕННА ПРОВОДА) |
EB26 (AU5, C3B, C57, U2Y, 39I) (EXC UG1, UTA) |
2007-2007 |
01 |
| 010 |
19207000 |
PANEL, HDLNG TR (INCLS 1) (GRAY) (W/ EURO АНТЕННА ПРОВОДА) |
EB26 (AU8, C3B, C57, U2S, U2Y, 13I, 19I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19207001 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) (W/ EURO АНТЕННА ПРОВОДА) |
EB26 (AU8, C3B, C57, U2S, U2Y, 39I) (EXC UTA) |
2007-2007 |
01 |
| 010 |
19207059 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB26 (AU8, C3B, C57, UTA, U2R, U2S, 13I, 19I) |
2007-2007 |
01 |
| 010 |
19207059 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EB26 (AU8, C3B, C57, UTA, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 010 |
19207059 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EE26 (C3B, C57, U2R, U2S, 13I, 19I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 010 |
19207059 |
PANEL, HDLNG TR (INCLS 1) (GRAY) |
EE26 (C3B, C57, U2Y, 13I, 19I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 010 |
19207060 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB26 (AU8, C3B, C57, UTA, U2R, U2S, 39I) |
2007-2007 |
01 |
| 010 |
19207060 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EB26 (AU8, C3B, C57, UTA, U2Y, 39I) |
2007-2007 |
01 |
| 010 |
19207060 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EE26 (C3B, C57, U2R, U2S, 39I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 010 |
19207060 |
PANEL, HDLNG TR (INCLS 1) (CASHMERE) |
EE26 (C3B, C57, U2Y, 39I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 011 |
22612024 |
CLIP, COAT HOOK (55MM LONG) (PUSH-IN) (15.394)
| E |
2004-2009 |
04 |
|
| 012 |
15811987 |
МОДУЛЬ, RDO ANT (ACDelco #15811987) |
EB (EXC AU5, AU8) |
2007-2009 |
01 |
| 012 |
15811988 |
МОДУЛЬ, RDO ANT (ACDelco #15811988) |
EB (EXC AU5, AU8) |
2007-2009 |
01 |
| 012 |
15811996 |
МОДУЛЬ, RDO ANT (ACDelco #15811996) |
EB26 (AU5) (EXPORT) |
2007-2008 |
01 |
| 012 |
15811997 |
МОДУЛЬ, RDO ANT (ACDelco #15811997) |
E26 (AU5) (EXPORT) |
2007-2008 |
01 |
| 012 |
15812016 |
МОДУЛЬ, RDO ANT (ACDelco #15812016) |
E (AU8) |
2007-2008 |
01 |
| 012 |
15812016 |
МОДУЛЬ, RDO ANT (ACDelco #15812016) |
EE (EXC AU5) |
2007-2008 |
01 |
| 012 |
15812017 |
МОДУЛЬ, RDO ANT (ACDelco #15812017) |
E (AU8) |
2007-2008 |
01 |
| 012 |
15812017 |
МОДУЛЬ, RDO ANT (ACDelco #15812017) |
EE (EXC AU5) |
2007-2008 |
01 |
| 013 |
88956198 |
HOOK, COAT (GRAY) |
E (13I, 19I) |
2004-2009 |
02 |
| 013 |
89026121 |
HOOK, COAT (CASHMERE) |
E (39I) |
2007-2009 |
02 |
| 014 |
11519335 |
БОЛТ, COAT HOOK (M6X1.0X30MM) |
E |
2006-2009 |
02 |
| 015 |
88956201 |
BEZEL, CARGO TIE DN LOOP (GRAY) (POA HDLNG TR MOD) |
E26 (13I, 19I) |
2004-2008 |
01 |
| 015 |
88956204 |
BEZEL, CARGO TIE DN LOOP (GRAY) (POA HDLNG TR MOD) |
E26 (13I, 19I) |
2004-2008 |
01 |
| 015 |
89026122 |
BEZEL, CARGO TIE DN LOOP (CASHMERE) |
E26 (39I) |
2007-2008 |
01 |
| 015 |
89026123 |
BEZEL, CARGO TIE DN LOOP (CASHMERE) |
E26 (39I) |
2007-2008 |
01 |
| 016 |
11609257 |
БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (CARGO TIE DN HOOK) (8.907)
|
2004-2009 |
04 |
|
| 017 |
15766504 |
TELLTALE, INFO CTR (ACDelco #15766504) |
E |
2004-2009 |
01 |
| 018 |
88956226 |
BEZEL, COMMUNICATION CTR CALL SW (GRAY) (RPA TRIM BEZEL) |
E |
2004-2008 |
01 |
| 018 |
89026127 |
BEZEL, COMMUNICATION CTR CALL SW (CASHMERE) (RPA TRIM BEZEL) |
EB (39I) |
2007-2008 |
01 |
| 019 |
15032587 |
ШЛАНГИ, DM RDG LP (INCLS 20) (16.494) |
E |
2004-2009 |
01 |
| 020 |
12450074 |
BULB, TRADE #578 (ЧАСТЬ OF 19) (ACDelco #578)
|
2004-2009 |
03 |
|
| 021 |
15032588 |
LENS, DM RDG LP (3 BULB STYLE) (16.495) |
E |
2004-2009 |
01 |
| 022 |
15166059 |
PUSHBUTTON, RDG LP SW (EBONY) (16.494) |
E |
2004-2009 |
02 |
| 023 |
19177386 |
TRIM, L/GATE (GRAY) |
E (13I, 19I) |
2004-2009 |
01 |
| 023 |
19177388 |
TRIM, L/GATE (CASHMERE) |
E (39I) |
2007-2009 |
01 |
| 023 |
19177390 |
TRIM, L/GATE (GRAY) |
E (13I, 19I) |
2004-2009 |
01 |
| 023 |
19177392 |
TRIM, L/GATE (CASHMERE) |
E (39I) |
2007-2009 |
01 |
| 024 |
88956206 |
PLATE, RF CARGO NET BZL BKG (RETAINER FOR CARGO NET BEZEL) (R/H L/H) (12.815) |
E |
2004-2008 |
02 |
| 025 |
88956195 |
BEZEL, RF CNSL ACSRY SW (INCLS 29) (GRAY) (MIDDLE OH CNSL W/HVAC) |
E (13I, 19I) |
2004-2008 |
01 |
| 025 |
89026119 |
BEZEL, RF CNSL ACSRY SW (INCLS 29) (GRAY) (MIDDLE OH CNSL W/O HVAC) |
E (13I, 19I) |
2004-2009 |
01 |
| 025 |
89026132 |
BEZEL, RF CNSL ACSRY SW (INCLS 29) (CASHMERE) (MID КОНСОЛЬ W/HVAC) |
E (39I) |
2007-2009 |
01 |
| 026 |
21996233 |
CONTROL, AUX BLO (MID OVERHEAD КОНСОЛЬ) (USE ON VEHICLES WITH SNOWFLAKE GRAPHIC SYMBOL) (ACDelco #15-73085) |
E (C57) |
2004-2009 |
01 |
| 027 |
88956165 |
DUCT, RF AUX AIR OTLT (GRAY) |
E (13I, 19I) |
2004-2009 |
02 |
| 027 |
89026131 |
DUCT, RF AUX AIR OTLT (CASHMERE) |
E (39I) |
2007-2009 |
02 |
| 028 |
88952118 |
HANDLE, ASST (INCLS 37) (GRAY) (HDLING TRIM) |
E (13I, 19I) |
2004-2008 |
02 |
| 028 |
89026088 |
HANDLE, ASST (INCLS 37) (CASHMERE) (HDLING TRIM) |
E (39I) |
2007-2008 |
02 |
| 029 |
15714276 |
SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (ЧАСТЬ OF 25) (8.977) |
|
2004-2009 |
02 |
| 030 |
88951937 |
ESCUTCHEON, R/RL FRT ASST STRP (GRAY) (END CAP-ASSIST HANDLE)
| E (13I, 19I) |
2004-2008 |
04 |
|
| 030 |
89026090 |
ESCUTCHEON, R/RL FRT ASST STRP (CASHMERE) (ASSIST HANDLE END CAP) |
E (39I) |
2007-2008 |
04 |
| 031 |
15141050 |
SWITCH, SUN RF (GRAY) (FOR ЗАДНИЙ GLASS СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК (NO VENT FUNCTION)) |
E (13I, 19I) |
2005-2009 |
01 |
| 031 |
15796935 |
SWITCH, SUN RF (CASHMERE) (FOR VEHICLES EQUIPPED WITH СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК ONLY) |
E (39I) |
2007-2009 |
01 |
| 031 |
15796936 |
SWITCH, SUN RF (CASHMERE) (FOR VEHICHLES EQUIPPED WITH ЛЮК AND СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК) |
E (39I) |
2007-2009 |
01 |
| 031 |
21997743 |
SWITCH, SUN RF (GRAY) (FOR ЛЮК/СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК FRONT) |
E (13I, 19I) |
2004-2009 |
01 |
| 032 |
21996232 |
CONTROL, AUX BLO (FRT OVHD КОНСОЛЬ) (ACDelco #15-73084) |
E (C57) |
2004-2008 |
01 |
| 033 |
25749089 |
SWITCH, R/WDO WPR WA (INCLS 37) (EBONY) |
E |
2004-2009 |
01 |
| 034 |
19151184 |
BEZEL, RF CNSL ACSRY SW (GRAY) (W/O DIMMER SWITCH) (STD, W/O HVAC) |
EB (13I, 19I) |
2007-2009 |
01 |
| 034 |
19151185 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) (W/O DIMMER SWITCH) (STD, W/O HVAC) |
EB (39I) |
2007-2009 |
01 |
| 034 |
19151187 |
BEZEL, RF CNSL ACSRY SW (GRAY) (W/O DIMMER SWITCH) (STD, FRT OH КОНСОЛЬ, W/HVAC) |
E (13I, 19I) |
2007-2008 |
01 |
| 034 |
19151188 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) (W/O DIMMER SWITCH) (STD, W/HVAC) |
E (39I) |
2007-2008 |
01 |
| 034 |
19151190 |
BEZEL, RF CNSL ACSRY SW (GRAY) (STD, W/HVAC, INTRUSION SENSOR) |
E (13I, 19I) |
2007-2009 |
01 |
| 034 |
19151191 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) (STD, W/HVAC, INTRUSION SENSOR)
| E (39I) |
2007-2009 |
01 |
|
| 034 |
19151193 |
BEZEL, RF CNSL ACSRY SW (GRAY) (MINI ЛЮК, FRT OVERHEAD) |
EB26 (CF5, C57, U2R, U2S, U2V, U2Y, 13I, 19I) (EXC UTA) |
2007-2007 |
01 |
| 034 |
19151193 |
BEZEL, RF CNSL ACSRY SW (GRAY) (MINI ЛЮК, FRT OVERHEAD) |
EE26 (AU5, CF5, C57, U2S, U2X, U2Y, 13I, 19I) (EXPORT) |
2007-2007 |
01 |
| 034 |
19151196 |
BEZEL, RF CNSL ACSRY SW (GRAY) (FRT OVERHEAD КОНСОЛЬ MINI ЛЮК, W/INTRUSION SENSOR) |
EB26 (AU8, CF5, C57, UTA, U2R, U2S, U2X, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 034 |
19151196 |
BEZEL, RF CNSL ACSRY SW (GRAY) (FRT OVERHEAD КОНСОЛЬ MINI ЛЮК, W/INTRUSION SENSOR) |
EE26 (CF5, C57, U2R, U2S, U2Y, 13I, 19I) (EXC AU5) (EXPORT) |
2007-2007 |
01 |
| 034 |
19151199 |
BEZEL, RF CNSL ACSRY SW (GRAY) (FRT OVERHEAD КОНСОЛЬ, MEGA ЛЮК) |
EE26 (AU5, C3B, C57, U2S, U2X, U2Y, 13I, 19I) (EXPORT) |
2007-2007 |
01 |
| 034 |
19151200 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) (FRT OVERHEAD КОНСОЛЬ, MEGA ЛЮК) |
E26 (39I) |
2007-2007 |
01 |
| 034 |
19151202 |
BEZEL, RF CNSL ACSRY SW (GRAY) (MEGA ЛЮК FRONT OH CNSL W/INTRUSION) |
EB26 (AU8, C3B, C57, UTA, U2R, U2S, U2X, U2Y, 13I, 19I) |
2007-2007 |
01 |
| 034 |
19151202 |
BEZEL, RF CNSL ACSRY SW (GRAY) (MEGA ЛЮК FRONT OH CNSL W/INTRUSION) |
EE26 (C3B, C57, U2R, U2S, U2Y, 13I, 19I) (EXC AU5) |
2007-2007 |
01 |
| 034 |
19151203 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) |
E26 (39I) |
2007-2007 |
01 |
| 034 |
19151293 |
BEZEL, RF CNSL ACSRY SW (GRAY) (STD, W/O HVAC, W/INTRUSION SENSOR) |
E (13I, 19I) |
2007-2009 |
01 |
| 034 |
19151294 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) (STD, W/O HVAC, W/INTRUSION SENSOR) |
E (39I) |
2007-2009 |
01 |
| 034 |
19208437 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) |
EB (39I) (EXC UTA) |
2007-2009 |
01 |
| 034 |
19208726 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) |
E (39I, UTA) |
2007-2007 |
01 |
| 034 |
88956195 |
BEZEL, RF CNSL ACSRY SW (GRAY) (MIDDLE OH CNSL W/HVAC) |
E (13I, 19I) |
2004-2008 |
01 |
| 034 |
89026119 |
BEZEL, RF CNSL ACSRY SW (GRAY) (MIDDLE OH CNSL W/O HVAC) |
E (13I, 19I) |
2004-2009 |
01 |
| 034 |
89026120 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) (MIDDLE OH CNSL W/O HVAC) |
E (39I) |
2007-2009 |
01 |
| 034 |
89026132 |
BEZEL, RF CNSL ACSRY SW (CASHMERE) (MID КОНСОЛЬ W/HVAC) |
E (39I) |
2007-2009 |
01 |
| 035 |
11515517 |
SCREW, PAN HD W/FLAT WA, C/R, M4.2X1.41X35, 8 OD, 6010M, NZ (ЧАСТЬ OF 36) |
|
2004-2009 |
02 |
| 036 |
88952150 |
RETAINER, S/S (INCLS 35, 43) (GRAY) |
E (13I, 19I) |
2004-2008 |
02 |
| 036 |
89026095 |
RETAINER, S/S (INCLS 35, 43) (CASHMERE) |
E (39I) |
2007-2008 |
02 |
| 037 |
09442395 |
BULB, TRADE # 7065 (ЧАСТЬ OF 28, 33, 39) (ACDelco #L7065) |
|
2004-2009 |
02 |
| 038 |
88952168 |
LENS, S/S ILLUM MIR LP (ЧАСТЬ OF 39) (LESS BULB) |
E |
2004-2009 |
02 |
| 039 |
10379015 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 37, 38, 40-42) (CASHMERE) (LH VISOR W/O UNIVERSAL GARAGE DR OPENER) |
E (39I) |
2007-2009 |
01 |
| 039 |
10380126 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 37, 38, 40-42) (CASHMERE) (RH VISOR WITHOUT UGDO) |
E (39I) |
2007-2009 |
01 |
| 039 |
25756063 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 37, 38, 40-42) (GRAY) (RH VISOR WITHOUT UGDO) |
E (13I, 19I) |
2004-2009 |
01 |
| 039 |
25756066 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 37, 38, 40-42) (GRAY) (LH VISOR W/O UGDO) |
EB (13I, 19I) (EXC UG1) |
2004-2009 |
01 |
| 039 |
25756066 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 37, 38, 40-42) (GRAY) (LH VISOR W/O UGDO) |
EE (13I, 19I) (EXPORT) |
2007-2008 |
01 |
| 039 |
25836940 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 37, 38, 40-42) (GRAY) (W/UGDO) (W/LEAR UHR, 3 LED LIGHTS) |
EB26 (13I, 19I) |
2007-2009 |
01 |
| 039 |
25836941 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 37, 38, 40-42) (CASHMERE) (W/UGDO) |
EB26 (39I) |
2007-2009 |
01 |
| 040 |
15006352 |
LABEL, INFL RST SYS WRNG (ЧАСТЬ OF 39) (ENGLISH/FRENCH) |
E |
2004-2009 |
01 |
| 040 |
15006352 |
LABEL, INFL RST SYS WRNG (ЧАСТЬ OF 39) (ENGLISH/FRENCH) |
E |
2004-2009 |
02 |
| 040 |
15116388 |
LABEL, INFL RST SYS WRNG (ЧАСТЬ OF 39) (ENGLISH/SPANISH)
| E |
2004-2009 |
02 |
|
| 040 |
15269813 |
LABEL, INFL RST SYS WRNG (ЧАСТЬ OF 39) (ARABIC) |
E (VBX) (EXPORT) |
2007-2009 |
02 |
| 041 |
11516638 |
SCREW - TAP RND SM WASH HD TY, M4.2X1.4X25, 19.2THD, 8.5 OD (ЧАСТЬ OF 39) (8.906) |
|
2004-2009 |
02 |
| 042 |
21031302 |
REINFORCEMENT, S/S SUPT (ЧАСТЬ OF 39) (ANCHOR PLT/SPIDER CLIP) |
E |
2004-2009 |
AR |
| 043 |
22612024 |
CLIP, S/S SUPT (ЧАСТЬ OF 36) (55MM LONG) (PUSH-IN) (15.394)
| E |
2004-2008 |
02 |
|
