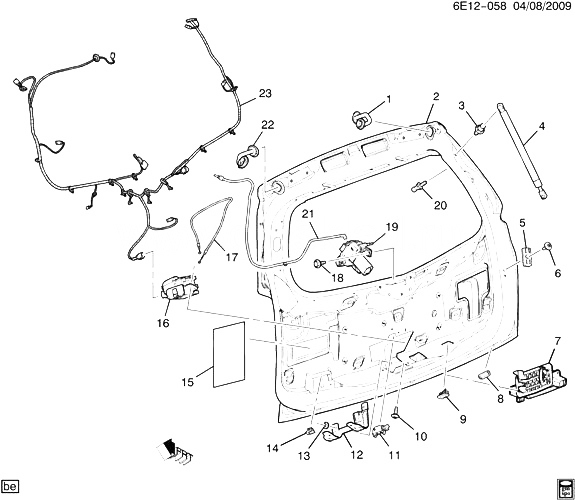

(6E12-058) - 2006-2009 E АРМАТУРА ОТКРЫВАНИЯ (ПОДЪЕМА) ДВЕРИ ЧАСТЬ 2 CADILLAC - SRX 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25771684 GROMMET, L/GATE WRG HARN (2.480) E 2007-2009 01
002 15828682 GATE, LIFT E 2006-2009 01
003 11609990 STUD, L/GATE STRUT (L/GATE SI) (M8X1.25X20) (8.015) E 2006-2009 02
004 15872898 STRUT, L/GATE E 2006-2009 01
004 15872899 STRUT, L/GATE E 2006-2009 01
005 25766856 WEDGE, L/GATE (L/GATE SI) E 2006-2009 02
006 11518446 SCREW-RD WA HD, M6X1X19, 16.38 OD, 12 THD, 10.9, 6138M. (L/GATE WGE (L/GATE SI)) 2006-2009 02
007 10372474 HANDLE, L/GATE O/S PULL (BRONZE) E (53U) 2006-2008 01
007 15898423 HANDLE, L/GATE O/S PULL (GRAY) E26 (30U) 2007-2009 01
007 15898424 HANDLE, L/GATE O/S PULL (BLACK) E26 (41U) 2006-2009 01
007 15898425 HANDLE, L/GATE O/S PULL (GOLD) E26 (51U) 2007-2009 01
007 15898429 HANDLE, L/GATE O/S PULL (BLUE) E26 (78U) 2007-2009 01
007 15898431 HANDLE, L/GATE O/S PULL (RED) E (80U) 2006-2007 01
007 15898434 HANDLE, L/GATE O/S PULL (DIAMOND) E26 (98U) 2007-2009 01
007 25764676 HANDLE, L/GATE O/S PULL (SILVER) E (67U) 2006-2008 01
007 25764677 HANDLE, L/GATE O/S PULL (BLUE) E (25U) 2006-2008 01
007 25802939 HANDLE, L/GATE O/S PULL (PEARL) EB (06U) 2007-2007 01
008 25732248 PLUG, L/GATE INR PNL DRN HOLE E 2007-2007 03
009 15909695 SWITCH, R/CMPT LID REL (ACDelco #1404G) E (TB5) 2007-2007 01
010 11518446 SCREW-RD WA HD, M6X1X19, 16.38 OD, 12 THD, 10.9, 6138M. (L/GATE LAT) 2006-2009 03
011 15141197 SWITCH, L/GATE REL (4.461) E 2006-2009 01
012 25829020 REINFORCEMENT, L/GATE LAT (REINFORCE TAB MY REQ MOD WHEN USED ON 2004-2005) EE26 (EXPORT) 2007-2008 01
012 25829020 REINFORCEMENT, L/GATE LAT (REINFORCE TAB MY REQ MOD WHEN USED ON 2004-2005) EB26 2007-2009 01
013 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (L/GATE O/S HDL) 2006-2009 02
014 11518162 NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (L/GATE OTR PNL) 2006-2009 01
015 25759086 DEADENER, L/GATE OTR PNL (12.981) E 2007-2009 02
016 13501872 LATCH, L/GATE (W/AJAR SW) E 2006-2009 01
017 15243666 CABLE, L/GATE O/S HDL E 2006-2009 01
018 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (R/WDO WPR MOT) 2006-2009 03
019 25805170 MOTOR, R/WDO WPR (W/NOZZLE) (ACDelco #25805170) E 2006-2009 01
020 11609990 STUD, L/GATE STRUT (L/GATE SI) (M8X1.25X20) (8.015) E 2006-2009 02
021 25870667 HOSE, R/WDO WA NOZ (WITH CHECK VLV) E 2006-2009 01
022 25771685 GROMMET, L/GATE WRG HARN (2.480) E 2007-2009 01
023 15806842 HARNESS, L/GATE LK R/WDO DEFG R/WDO WPR WRG EB (EXC T79) 2007-2009 01
023 15806843 HARNESS, L/GATE LK R/WDO DEFG R/WDO WPR WRG EB26 (T79) 2007-2007 01
023 15806843 HARNESS, L/GATE LK R/WDO DEFG R/WDO WPR WRG EE26 (EXPORT) 2007-2007 01
