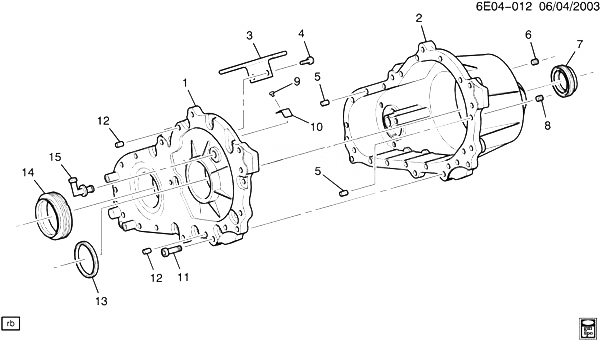

(6E04-012) - 2007-2009 E КОРПУС КП ЧАСТЬ 1 CASE COMPONENTS(MYB,MX7) CADILLAC - SRX 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 CASE, TRFER (FRT HALF) (INCLS 12-14) 2004-2009
001 88996677 CASE, TRFER (FRT HALF) (INCLS 12-14) E 2004-2009 01
002 19133265 CASE, TRFER (RR HALF) (INCLS 5, 7) E 2007-2009 01
003 88996679 SNUBBER, TRFER CASE FRT ВЫХОДНОЙ SHF DRV CHAIN E 2004-2009 01
004 88996680 БОЛТ, TRFER CASE FRT ВЫХОДНОЙ SHF DRV CHAIN SNBR (M5X0.8X16) E 2004-2009 02
005 88984499 PIN, TRFER CASE HALF LOC (ЧАСТЬ OF 2) E 2004-2009 02
006 25522466 PLUG, 1/2-14 X 39/64 (TRFER CASE OIL FILL) (ACDelco #25522466) 2004-2009 01
007 88996657 SEAL, TRFER CASE RR ВЫХОДНОЙ SHF (ЧАСТЬ OF 2) E 2004-2009 01
008 25522466 PLUG, 1/2-14 X 39/64 (TRFER CASE OIL DRN) (ACDelco #25522466) 2004-2009 01
009 88996680 БОЛТ, TRFER CASE VENT BFL (M5X0.8X16) (4.535) E 2004-2009 01
010 88996658 BAFFLE, TRFER CASE VENT E 2004-2009 01
011 89048123 БОЛТ, TRFER CASE HALF (M8X1.25X30) E 2004-2009 17
012 88984499 PIN, TRFER CASE HALF LOC (ЧАСТЬ OF 1) E 2004-2009 02
013 88996656 SEAL, TRFER CASE INPUT SHF (ЧАСТЬ OF 1) E 2004-2009 01
014 88996657 SEAL, TRFER CASE FRT ВЫХОДНОЙ SHF (ЧАСТЬ OF 1) E 2004-2009 01
015 VENT, TRFER CASE 2004-2009
