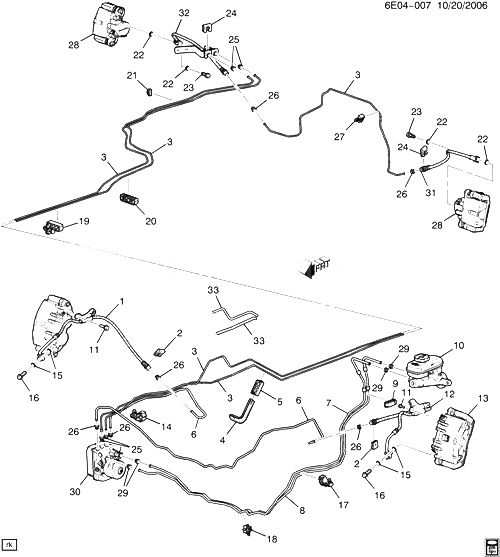

(6E04-007) - 2007-2009 EB ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ CADILLAC - SRX 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15933099 HOSE, FRT BRK (INCLS 15, 16) (ACDelco #176-1495) E 2004-2009 01
002 11569742 RETAINER, FRT BRK HOSE (1 SIDED RETAINER) E 2004-2009 02
003 12547207 TUBING, BULK, 3/16 X 20 FT ROLL, STL (BRK FUEL FEED FUEL RTN EVAP EMIS) (8.964) 2004-2009 AR
004 25761218 BRACKET, FUEL PIPE E 2004-2009 01
005 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE (3.162) E26 (LH2) 2007-2007 01
005 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE E26 (LH2) 2007-2007 01
006 12547207 TUBING, BULK, 3/16 X 20 FT ROLL, STL (FRT BRK) (8.964) 2004-2009 AR
007 10388788 PIPE, BRK PRESS MOD VLV FRT (INCLS 29) EB 2007-2009 01
008 10388794 PIPE, BRK PRESS MOD VLV RR (INCLS 29) EB 2007-2009 01
009 03541444 SPACER, FRT BRK PIPE E 2004-2009 01
010 CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДРР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
011 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE) 2004-2009 04
012 15933098 HOSE, FRT BRK (INCLS 15, 16) (ACDelco #176-1487) EB 2007-2008 01
013 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
014 25743891 RETAINER, RR BRK FRT PIPE (THREE WAY RETAINER SNAP LOCK CLOSURE SINGLE OFFSET FIR-TREE ATTACHMENT) E (LH2, LY7) 2004-2009 02
015 GASKET, FRT BRK HOSE FTG (ЧАСТЬ OF 1, 12) 2007-2009
016 11569737 FITTING, FRT BRK PIPE (ЧАСТЬ OF 1, 12) (7/16-24X0.36, 0.30THD) (0.56 LONG, 3/16TUBE) E 2007-2009 04
017 25743891 RETAINER, FRT BRK PIPE (THREE WAY RETAINER SNAP LOCK CLOSURE SINGLE OFFSET FIR-TREE ATTACHMENT) E 2004-2009 02
018 25737279 CLIP, FRT BRK PIPE (THREE WAY RETAINER SINGLE CENTRAL FIR-TREE ATTACHMENT) E 2004-2009 02
019 15270078 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) E (LH2) 2004-2008 02
019 15270078 RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT) E26 (LY7) 2005-2008 01
019 15270078 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) (3.162) E (LH2) 2004-2008 02
019 15270078 RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT) (3.162) E26 (LY7) 2005-2008 01
020 15270078 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) E (LH2) 2004-2008 02
020 15270078 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) (3.162) E (LH2) 2004-2008 02
020 25688547 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) E (LH2) 2004-2008 01
020 25688547 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) (3.162) E (LH2) 2004-2008 01
020 25749839 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) E (LY7) 2004-2009 01
020 25749839 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) (3.162) E (LY7) 2004-2009 01
021 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) E (LH2) 2004-2009 01
021 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) E (LY7) 2004-2009 02
022 GASKET, RR BRK HOSE FTG (ЧАСТЬ OF 31, 32) 2007-2009
023 FITTING, RR BRK FRT PIPE (ЧАСТЬ OF 31, 32) 2007-2009
024 11569742 RETAINER, RR BRK HOSE (1 SIDED RETAINER) E 2004-2009 02
025 15724650 ГАЙКА, INVERTED FLARED TUBE, 9/16-18, 1/4 TUBE, ZD (BRK PIPE) (4.686) 2004-2009 AR
026 15724650 ГАЙКА, INVERTED FLARED TUBE, 9/16-18, 1/4 TUBE, ZD (BRK PIPE) (4.686) 2004-2009 AR
027 25693890 RETAINER, RR BRK PIPE (HOLDS (1) 4.76 LINE) (W/TREE) E 2004-2009 04
028 CALIPER, RR BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
029 11588803 FITTING, BRK PRESS MOD VLV FRT BRK PIPE (ЧАСТЬ OF 7, 8) (1/2-20X.40, .32 THD) (INVERTED FLARED TUBE) (.62 LONG, 1/4 TUBE) E 2004-2009 02
029 15724650 FITTING, BRK PRESS MOD VLV FRT BRK PIPE (ЧАСТЬ OF 7, 8) (9/16-18 X .40) (INVERTED FLARED TUBE) E 2005-2009 02
030 VALVE, BRK PRESS MOD (СМ. ГРУППУ 04.000 КЛАПАН РЕГУЛИРОВКИ ДАВЛЕНИЯ В ТОРМОЗНОЙ СИСТЕМЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
031 15933091 HOSE, RR BRK (INCLS 22, 23) (ACDelco #15933091) E 2004-2008 01
032 15933092 HOSE, RR BRK (INCLS 22, 23) (ACDelco #15933092) E 2004-2009 01
033 88964150 PROTECTOR, FRT BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) E26 2004-2008 AR
