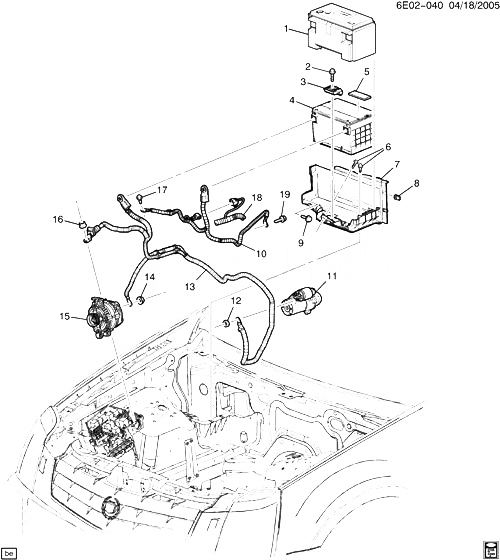

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25747792 |
SHIELD, BAT HT (INSTALLED ON RH SIDE OF CAR) |
E26 |
2006-2007 |
01 |
| 002 |
11509853 |
БОЛТ, HEX W/CON WA, M8X1.25X45, 24 O.D., HDR PT, 9.8, PS (BAT HOLDN RET)
|
2006-2007 |
01 |
|
| 003 |
25558374 |
RETAINER, BAT HOLDN (CENTER SLOT)
| E |
2006-2007 |
01 |
|
| 004 |
88901964 |
АККУМУЛЯТОР, (CCA 650) (SIDE TERM) (260X178X168) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #101-6YR) (PROFESSIONAL - 6 YR) |
EB26 (LY7) |
2006-2007 |
01 |
| 004 |
88901964 |
АККУМУЛЯТОР, (CCA 650) (SIDE TERM) (260X178X168) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #101-6YR) (PROFESSIONAL - 6 YR) |
EE26 (LH2, LY7) |
2007-2007 |
01 |
| 005 |
15204281 |
LABEL, BAT WRNG (INCLUDES SYMBOLS ONLY) |
E (VBX) |
2006-2007 |
01 |
| 006 |
11518646 |
БОЛТ, HEX HD, W/CON WA, M6X1X30, 24.33THD, 17 OD, 9.8, 6138M, BLK (BAT TRAY) |
|
2006-2007 |
05 |
| 007 |
15796853 |
TRAY, BAT (INCLS 8) |
EE (EXPORT) |
2007-2007 |
01 |
| 007 |
15812692 |
TRAY, BAT (INCLS 8) |
EB |
2006-2007 |
01 |
| 008 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (ЧАСТЬ OF 7)
|
2006-2007 |
02 |
|
| 009 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY)
|
2006-2007 |
02 |
|
| 010 |
15804414 |
CABLE, BAT NEG (ACDelco #15804414) |
EE (LY7, JJA, JJB, KG4) (EXPORT) |
2007-2007 |
01 |
| 010 |
15889973 |
CABLE, BAT NEG |
EB (LY7, JJA, KG4) |
2007-2007 |
01 |
| 011 |
|
STARTER, (REMAN) (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ СТАРТЕРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (MAIN АККУМУЛЯТОР TERMINALS AT 1 7 OCLOCK) |
|
2006-2007 |
|
| 012 |
21021808 |
ГАЙКА, STRTR SOL BAT TERM (LARGER) (M8X1.25X6, BRASS) (2.343)
| E |
2006-2007 |
01 |
|
| 013 |
25785031 |
CABLE, BAT POS (ACDelco #25785031) |
EB (LY7, JJA, KG4) |
2007-2007 |
01 |
| 013 |
25834437 |
CABLE, BAT POS (LABELED 25834437) (ACDelco #25834437) |
EE (LY7, JJB, KG4) |
2007-2007 |
01 |
| 014 |
11515535 |
ГАЙКА, BAT WIRE (2.559) |
E (LH2, LY7) |
2006-2007 |
01 |
| 015 |
|
GENERATOR, (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ ГЕНЕРАТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2006-2007 |
|
| 016 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (BAT POS CBL) |
|
2006-2007 |
01 |
| 017 |
11589258 |
БОЛТ, BAT NEG CBL GND (M8X1.25X31)
| E (LH2, LY7) |
2006-2007 |
01 |
|
| 018 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2007 |
|
| 019 |
11517274 |
STUD, HFH M8X1.25X20, M10X1.5X25, 22.3 OD, 9.8, 6280M. (BAT CBL TERM) |
|
2006-2007 |
01 |
