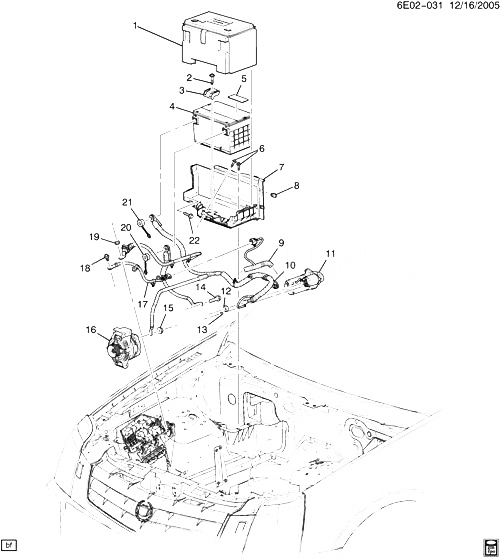

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25747792 |
SHIELD, BAT HT (INSTALLED ON RH SIDE OF CAR) |
E26 |
2006-2007 |
01 |
| 002 |
11509853 |
БОЛТ, HEX W/CON WA, M8X1.25X45, 24 O.D., HDR PT, 9.8, PS (BAT HOLDN RET)
|
2006-2007 |
01 |
|
| 003 |
25558374 |
RETAINER, BAT HOLDN (CENTER SLOT)
| E |
2006-2007 |
01 |
|
| 004 |
88901964 |
АККУМУЛЯТОР, (CCA 650) (SIDE TERM) (260X178X168) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #101-6YR) (PROFESSIONAL - 6 YR) |
EB26 (LH2) |
2006-2007 |
01 |
| 004 |
88901964 |
АККУМУЛЯТОР, (CCA 650) (SIDE TERM) (260X178X168) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #101-6YR) (PROFESSIONAL - 6 YR) |
EE26 (LH2, LY7) |
2007-2007 |
01 |
| 005 |
15204281 |
LABEL, BAT WRNG (INCLUDES SYMBOLS ONLY) |
E (VBX) |
2006-2007 |
01 |
| 006 |
11518646 |
БОЛТ, HEX HD, W/CON WA, M6X1X30, 24.33THD, 17 OD, 9.8, 6138M, BLK (BAT TRAY) |
|
2006-2007 |
05 |
| 007 |
15796853 |
TRAY, BAT (INCLS 8) |
EE (EXPORT) |
2007-2007 |
01 |
| 007 |
15812692 |
TRAY, BAT (INCLS 8) |
EB |
2006-2007 |
01 |
| 008 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (ЧАСТЬ OF 7)
|
2006-2007 |
02 |
|
| 009 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2006-2007 |
|
| 010 |
15804441 |
CABLE, BAT POS (INCLS 21) (ACDelco #15804441) |
EE (LH2, JJA, JJB) (EXPORT) |
2007-2007 |
01 |
| 010 |
15889950 |
CABLE, BAT POS (INCLS 21) (ACDelco #15889950) |
EB (LH2) |
2007-2007 |
01 |
| 011 |
|
STARTER, (REMAN) (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ СТАРТЕРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2006-2007 |
|
| 012 |
21021808 |
ГАЙКА, STRTR SOL BAT TERM (LARGER) (M8X1.25X6, BRASS) (2.343)
| E |
2006-2007 |
01 |
|
| 013 |
11504568 |
ГАЙКА, HEX M5X0.8 PREV TORQ INSERT 9 ZC (SMALLER) |
|
2006-2007 |
01 |
| 014 |
11562004 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT CBL TERM) |
|
2006-2007 |
01 |
| 015 |
11515535 |
ГАЙКА, BAT WIRE (2.559) |
E (LH2, LY7) |
2006-2007 |
01 |
| 016 |
|
GENERATOR, (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ ГЕНЕРАТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2006-2007 |
|
| 017 |
15804415 |
CABLE, BAT NEG (INCLS 20) (ACDelco #15804415) |
EE (LH2, JJA) |
2007-2007 |
01 |
| 017 |
15889974 |
CABLE, BAT NEG (INCLS 20) (ACDelco #15889974) |
EB26 (LH2, JJA) |
2007-2007 |
01 |
| 018 |
11589258 |
БОЛТ, BAT NEG CBL GND (M8X1.25X31)
| E (LH2, LY7) |
2006-2007 |
01 |
|
| 019 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (BAT POS CBL) |
|
2006-2007 |
01 |
| 020 |
12160209 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 17) (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) |
EE (LH2, LY7) |
2007-2007 |
01 |
| 020 |
19116749 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 17) |
EB26 (LH2, JJA, JJB) |
2007-2007 |
01 |
| 021 |
12010050 |
COVER, BAT POS CBL БОЛТ (ЧАСТЬ OF 10) (RED) (HAS SLOTTED HOLE) (SNAPS ON TO АККУМУЛЯТОР БОЛТ) |
EB (LH2) |
2007-2007 |
01 |
| 021 |
12010050 |
COVER, BAT POS CBL БОЛТ (ЧАСТЬ OF 10) (RED) (HAS SLOTTED HOLE) (SNAPS ON TO АККУМУЛЯТОР БОЛТ) |
EE (LH2, LY7) (EXPORT) |
2007-2007 |
01 |
| 022 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY)
|
2006-2007 |
02 |
|
