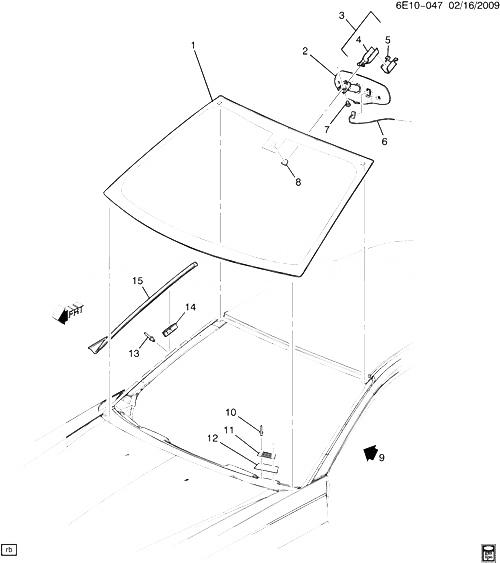

(6E10-047) - 2006 E ВЕТРОВОЕ СТЕКЛО TRIM АРМАТУРА (2ND DES) CADILLAC - SRX 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15879005 ВЕТРОВОЕ СТЕКЛО, (INCLS 8) (INCLS UPPER REVEAL MOLDING) E (EXC A26) 2006-2006 01
001 25919737 ВЕТРОВОЕ СТЕКЛО, (INCLS 8) E (A26, U2R, U2S) (EXPORT) 2006-2009 01
001 25919739 ВЕТРОВОЕ СТЕКЛО, (INCLS 8) E (A26, U2V, U2X, U2Y) (EXPORT) 2006-2006 01
002 15822996 MIRROR, I/S RR VIEW (INCLS 7) (USE T/W 15900947 (COVER) IF REPLACING 25743654) (W/MIC) E (UE1) (EXC DD7) 2006-2009 01
002 15850531 MIRROR, I/S RR VIEW (W/MIC) (INCLS 7) (USE T/W 15900947 (COVER) IF REPLACING PREVIOUS P/N 25743653) E (DD7, UE1) 2006-2009 01
003 15900947 COVER, I/S RR VIEW MIR WRG HARN (W/O LH NOTCH) (INCLS 4, 5) (EBONY) (70MM LONG) E 2006-2009 01
004 15900949 COVER, I/S RR VIEW MIR WRG HARN LWR (ЧАСТЬ OF 3) (EBONY) E (13I, 19I, 39I) 2006-2009 01
005 COVER, I/S RR VIEW MIR WRG HARN UPR (ЧАСТЬ OF 3) 2006-2009
005 15887556 COVER, I/S RR VIEW MIR WRG HARN UPR (W/LH NOTCH) (ЧАСТЬ OF 3) (EBONY) E (13I, 19I, 39I, DD7, DD8) 2006-2009 01
006 HARNESS, DM RDG LP S/S ILLUM MIR WRG (СМ. ГРУППУ 10.000 КРЫША ОТДЕЛКА/INTERIOR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2006-2006
007 БОЛТ, I/S RR VIEW MIR SWIV MT (ЧАСТЬ OF 2) 2006-2006
008 BRACKET, I/S RR VIEW MIR (ЧАСТЬ OF 1) 2006-2006
009 12346392 ADHESIVE KIT, GLASS URETHANE (W/S) (FOR INSTALLATION OF ALL STATIONARY WINDOW GLASS) 2006-2009 AR
010 RIVET, VIN PLT 2006-2006
011 PLATE, VIN (CONTACT APPROPRIATE AUTHORITY GOVERNING MOTOR VEHICLES FOR REPLACEMENT PROCESS) 2006-2006
012 TAPE, VIN PLT 2006-2006
013 11610050 RIVET - POP, 3.25X14.93, 6.65 OD, AA5052, 3.99 - 7.93 GRP RING, (W/S R/MLDG CLIP) (8.967) 2006-2009 04
014 25756944 CLIP, W/S R/MLDG E 2006-2009 04
015 21996462 MOLDING, W/S SI RVL (GRAY) E (46U) 2006-2006 01
015 21996463 MOLDING, W/S SI RVL (GRAY) E (46U) 2006-2006 01
015 21996464 MOLDING, W/S SI RVL (BRONZE) E (53U) 2006-2008 01
015 21996465 MOLDING, W/S SI RVL (BRONZE) E (53U) 2006-2008 01
015 21996466 MOLDING, W/S SI RVL (QUARTZ) E (71U) 2006-2007 01
015 21996467 MOLDING, W/S SI RVL (QUARTZ) E (71U) 2006-2007 01
015 21996468 MOLDING, W/S SI RVL (RED) E (80U) 2006-2007 01
015 21996469 MOLDING, W/S SI RVL (RED) E (80U) 2006-2007 01
015 25763321 MOLDING, W/S SI RVL (WHITE) E (98U) 2006-2009 01
015 25763324 MOLDING, W/S SI RVL (WHITE) E (98U) 2006-2009 01
015 25763329 MOLDING, W/S SI RVL (BLUE) E (25U) 2006-2008 01
015 25763330 MOLDING, W/S SI RVL (BLACK) E (41U) 2006-2009 01
015 25763331 MOLDING, W/S SI RVL (BLACK) E (41U) 2006-2009 01
015 25763332 MOLDING, W/S SI RVL (BLUE) E (25U) 2006-2008 01
015 25764002 MOLDING, W/S SI RVL (SILVER) E (67U) 2006-2008 01
015 25764003 MOLDING, W/S SI RVL (SILVER) E (67U) 2006-2008 01
015 25764004 MOLDING, W/S SI RVL (CHESTNUT) E (42U) 2006-2006 01
015 25764005 MOLDING, W/S SI RVL (CHESTNUT) E (42U) 2006-2006 01
015 25765155 MOLDING, W/S SI RVL (GOLD) E (61U) 2006-2006 01
015 25765156 MOLDING, W/S SI RVL (GOLD) E (61U) 2006-2006 01
