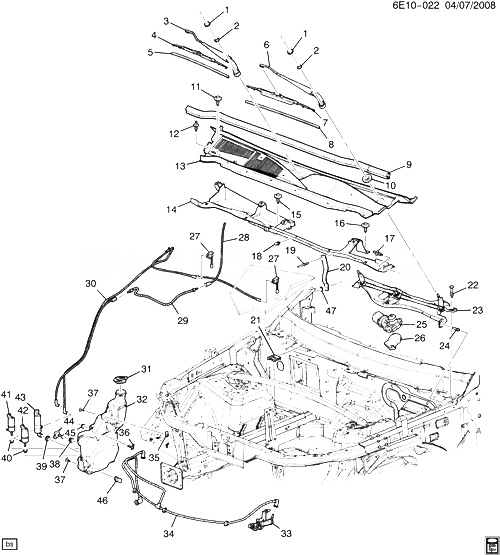

(6E10-022) - 2004-2006 E СТЕКЛООЧИСТИТЕЛЬ-ВЕТРОВОГО СТЕКЛА CADILLAC - SRX 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25797175 CAP, WSW ARM NUT (FOR FINE THREAD PIVOT SHAFTS) E 2004-2009 02
002 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (WSW ARM) (2.383) 2004-2006 02
003 88958239 ARM, WSW E 2004-2006 01
004 12487638 BLADE, WSW (INCLS 5) EB26 2004-2009 01
005 88892785 WIPER, W/S (ЧАСТЬ OF 4) (21) (530MM) (DELMEX DE JUARE) (INSERT) E 2004-2006 01
006 88958241 ARM, WSW E 2004-2006 01
007 12487636 BLADE, WSW (INCLS 8) EB26 2004-2009 01
008 12367281 WIPER, W/S (ЧАСТЬ OF 7) (22) (565MM) (DELMEX DE JUARE) (INSERT) E 2004-2006 01
009 25773454 SEAL, КАПОТ RR (ЧАСТЬ OF 13) E 2004-2006 01
010 GROMMET, WSW ARM PIV (ЧАСТЬ OF 13) 2004-2006
011 11609489 БОЛТ, HEX W/ WASHER, 4.2X1.41X25, 14.5 THD17 OD, GM6010M STL, GMW4205 (AIR INL GRL PNL) 2005-2009 11
012 10134407 RETAINER, AIR INL GRL PNL (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272) E 2004-2009 02
013 25902704 PANEL, AIR INL GRL (UPR) (INCLS 9, 10) E 2004-2006 01
014 25768133 PANEL, AIR INL GRL (LWR) (INCLS 18-20) E 2004-2006 01
015 11609489 БОЛТ, HEX W/ WASHER, 4.2X1.41X25, 14.5 THD17 OD, GM6010M STL, GMW4205 (AIR INL GRL) 2005-2006 03
016 11609489 БОЛТ, HEX W/ WASHER, 4.2X1.41X25, 14.5 THD17 OD, GM6010M STL, GMW4205 (AIR INL GRL PNL) 2005-2009 11
017 10134407 RETAINER, AIR INL GRL PNL (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272) E 2004-2009 02
018 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (ЧАСТЬ OF 14) 2004-2009 09
019 10125439 RIVET, FLAT HD, 3 LEG EXPANSION, M4.8 SHAFT, 23.5 LG, 9.8 O.D., AL (ЧАСТЬ OF 14) 2004-2009 01
020 25764351 BRACKET, AIR INL GRL PNL (ЧАСТЬ OF 14) E 2004-2006 01
021 11589267 ГАЙКА, AIR INL HSG (10.230) E 2004-2009 02
022 БОЛТ, WSW SYS MDL (ЧАСТЬ OF 23) 2004-2006
023 19208922 МОДУЛЬ, WSW SYS (INCLS 22, 25, 26) (USE FINE THREAD CAP AND NUT) (10.159) E 2004-2006 01
024 11570235 STUD, WSW SYS MDL E 2006-2009 01
025 88958251 MOTOR, WSW (ЧАСТЬ OF 23) (ACDelco #88958251) E 2004-2006 01
026 88958172 COVER KIT, WSW MOT (ЧАСТЬ OF 23) E 2004-2006 01
027 10366565 NOZZLE, WSWA (HTD) E26 (XA7) 2005-2009 02
027 15778747 NOZZLE, WSWA E (EXC XA7) 2004-2009 02
028 15218953 HOSE, WSWA SOLV CNTNR (СМ. ГРУППУ 12.000 СТЕКЛООЧИСТИТЕЛЬ-ЗАДНЕГО СТЕКЛА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (RR) (ACDelco #15218953) E 2004-2009 01
029 HOSE, WSWA SOLV CNTNR 2006-2009
030 15218962 HOSE, WSWA SOLV CNTNR (TO WSWA NOZ) E 2004-2009 01
031 25731418 CAP, WSWA SOLV CNTNR (W/ISO SYMBOL) E 2004-2009 01
032 88958248 CONTAINER, WSWA SOLV E (EXC CE4) 2004-2006 01
032 88958249 CONTAINER, WSWA SOLV E (CE4) 2004-2006 01
033 25767592 NOZZLE, HDLP WA E (CE4) 2004-2006 01
033 25767593 NOZZLE, HDLP WA E (CE4) 2004-2006 01
034 25890367 HOSE, HDLP WA E (CE4) 2004-2006 01
035 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (WSWA SOLV CNTNR) 2004-2009 02
036 11517641 STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (WSWA SOLV CNTNR) 2004-2009 01
037 11518094 БОЛТ-HES W/FL WA, M6X1X21, 11.75 THD, 24 OD, 9.8, 7114M, MACH, DOG-PT (WSWA SOLV CNTNR) 2004-2009 03
038 12487588 SEAL, WSWA SOLV LVL SW (16.065) E 2004-2009 01
039 GROMMET, WSWA SOLV CNTNR (ЧАСТЬ OF 43) 2004-2006
040 GROMMET, R/WDO WA PUMP (ЧАСТЬ OF 41, 42) 2004-2006
041 12487643 PUMP KIT, WSWA W/ SEAL (INCLS 40) (ACDelco #12487643) E 2004-2009 01
042 88958155 PUMP, R/WDO WA (INCLS 40) (INCLS GROMMET) (ACDelco #88958155) E 2004-2009 01
043 88958121 PUMP, HDLP WA (INCLS 39) (LOCATED IN WSW TANK) (ACDelco #88958121) E 2004-2009 01
044 12487599 SWITCH, WSWA SOLV LVL (IF USING ORIG CNTR, CUSTOMER MAY NEED TO USE 12487589 IND) E 2004-2009 01
045 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (WSWA SOLV CNTNR) 2004-2009 01
046 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (WSWA SOLV CNTNR) 2004-2009 01
047 11589145 ГАЙКА, PUSH ON, M10, 20.0 OD, GMW3359 (AIR INL GRL PNL) 2004-2009 01
