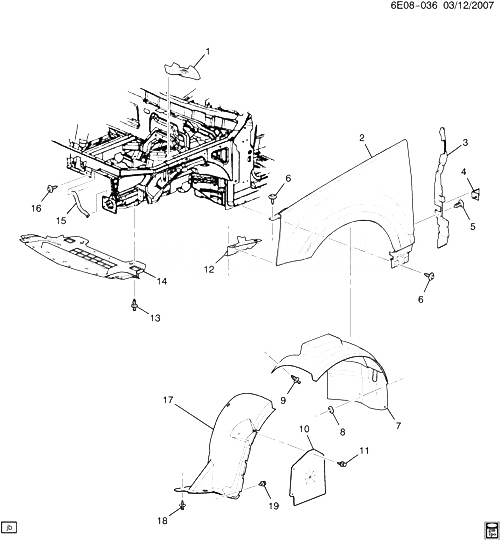

(6E08-036) - 2004-2006 E КРЫЛО КОЛЕСНАЯ КОРОБКА ПЕРЕДНЯЯ CADILLAC - SRX 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25734326 INSULATOR, FRT W/H PNL EB26 2004-2006 01
002 88890925 КРЫЛО, FRT (INCLS 12) E (EXC T90) 2004-2006 01
002 88890926 КРЫЛО, FRT (INCLS 12) E (EXC T90) 2004-2006 01
002 88890927 КРЫЛО, FRT (INCLS 12) E (T90) (EXPORT) 2004-2006 01
002 88890928 КРЫЛО, FRT (INCLS 12) E (T90) (EXPORT) 2004-2006 01
003 25734327 INSULATOR, F/FDR (INCLS 5) E 2004-2006 01
003 25734328 INSULATOR, F/FDR (INCLS 5) E 2004-2006 01
004 25724779 BRACKET, F/FDR RR CTR E 2004-2006 02
005 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (ЧАСТЬ OF 3) 2004-2006 02
006 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/FDR) 2004-2006 16
007 15829491 LINER, FRT W/H FRT E 2004-2006 01
007 15925401 LINER, FRT W/H FRT E 2004-2006 01
008 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (F/FDR RR CTR BRKT) 2004-2006 02
009 11518017 RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (FRT W/H LNR) 2004-2006 06
010 25772196 SHIELD, ENG FRT SPH (RUBBER FLAP) E 2004-2006 02
011 11518017 RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (ENG FRT SPH SHLD (PUSH IN)) 2004-2006 12
012 REINFORCEMENT, F/FDR FRT LWR (ЧАСТЬ OF 2) 2004-2006
013 14093088 RETAINER, F/CMPT SPH SHLD (PUSH IN) (NYLON) (8.153) E 2004-2006 14
014 25802220 DEFLECTOR, FRT AIR E26 2004-2006 01
015 25772204 BRACE, F/END SH MET DIAG (MIDDLE SECTION OF THE BRACE ASM IS FLAT AND HAS A ЧАСТЬ NUMBER STAMPING OF 25772204) E 2004-2006 02
016 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/END SH MET DIAG BR) 2004-2006 02
017 15926323 EXTENSION, FRT BPR FASCIA E 2004-2006 01
017 25770515 EXTENSION, FRT BPR FASCIA E 2004-2006 01
018 14093088 RETAINER, FRT BPR FASCIA EXTN (NYLON) (8.153) E 2004-2006 04
019 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR FASCIA EXTN) (8.950) (PUSH IN) 2004-2006 08
