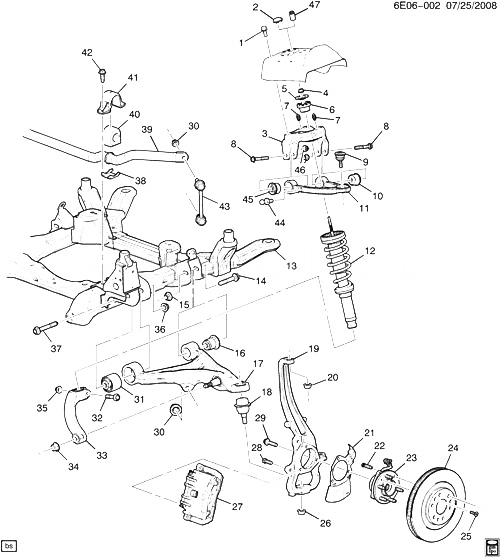

(6E06-002) - 2004-2009 E ПОДВЕСКА-ПЕРЕДНЯЯ CADILLAC - SRX 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11519393 БОЛТ, HEX W/CON ПРУЖИНА WA, M12X1.75X50, 35 OD, 42 THD, 10.9, 7114M (FRT S/ABS UPR BRKT) 2004-2009 10
002 15815517 ГАЙКА, FRT S/ABS STUD E (FE3, F55) 2006-2009 02
002 25700262 PLUG, FRT S/ABS ACC HOLE E (FE1) 2004-2009 02
003 19181783 BRACKET, FRT UPR CONT ARM (INCLS 6-11, 44-46) E (FE3, 7SA, 7SB, 7SC, 7CC, 7SD) 2004-2009 01
003 19181784 BRACKET, FRT UPR CONT ARM (INCLS 6-11, 44-46) EB (FE1, 6NA, 6NB, 6NC) 2004-2006 01
003 19181785 BRACKET, FRT UPR CONT ARM (INCLS 6-11, 44-46) EB (FE1, 7NA, 7NB, 7NC) 2004-2006 01
003 25847433 BRACKET, FRT UPR CONT ARM (INCLS 6-11, 44-46) E (FE3, 6SA, 6SB, 6SC, 6SC, 6CC) 2004-2009 01
004 ГАЙКА, FRT S/ABS (*KIT1) 2004-2009
005 WASHER, FRT S/ABS (*KIT1) 2004-2009
006 MOUNT, FRT SUSP STRUT (ЧАСТЬ OF 3) 2004-2009
007 LOCATOR, FRT SUSP STRUT UPR (ЧАСТЬ OF 3) 2004-2009
008 11515784 БОЛТ, HEX FLNG HD (12X1.75X75) (PZOR 10.9) (ЧАСТЬ OF 3) 2004-2009 02
009 STUD, FRT UPR CONT ARM BALL (ЧАСТЬ OF 3) 2004-2009
010 BUSHING, FRT UPR CONT ARM (RR) (ЧАСТЬ OF 3) 2004-2009
011 ARM, FRT UPR CONT (ЧАСТЬ OF 3) 2004-2009
012 АМОРТИЗАТОР KIT, FRT SHK (СМ. ГРУППУ 07.000 АМОРТИЗАТОР/ПЕРЕДНЯЯ СТОЙКА ПРУЖИНА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 47) 2004-2009
013 25807366 РАМА, DRIVETRAIN FRT SUSP E (MV3, MX5) (EXC TY6) 2005-2006 01
013 25807367 РАМА, DRIVETRAIN FRT SUSP E (M22, M82) (EXC TY6) 2005-2006 01
013 25807368 РАМА, DRIVETRAIN FRT SUSP EB26 (MV3, MX5, TY6) (EXPORT) 2005-2006 01
013 25807369 РАМА, DRIVETRAIN FRT SUSP EB26 (M22, M82, TY6) (EXPORT) 2005-2006 01
014 11519151 БОЛТ, FRT LWR CONT ARM (FRT) (HFH, M14X2X110) (POINTED POINT) (7.039) E26 2004-2008 02
015 03537773 ГАЙКА, FRT LWR CONT ARM RR (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) (5.383) EB 2004-2006 02
016 BUSHING, FRT LWR CONT ARM RR (ЧАСТЬ OF 17) 2004-2009
017 25862781 ARM, FRT LWR CONT (INCLS 16, 18, 31) E26 2004-2009 01
017 25862782 ARM, FRT LWR CONT (INCLS 16, 18, 31) E26 2004-2009 01
018 STUD, FRT LWR CONT ARM BALL (ЧАСТЬ OF 17) 2004-2009
019 18048936 KNUCKLE, STRG E (MX0, MX7) 2004-2008 01
019 18048937 KNUCKLE, STRG E 2004-2008 01
020 11519879 ГАЙКА, FRT UPR CONT ARM BALL STUD (M12X1.75X16.75, 28 OD) (8.915) E 2004-2009 02
021 18047194 SHIELD, FRT BRK (6.323) E (EXC JE2) 2004-2009 01
021 18047195 SHIELD, FRT BRK (6.323) E (EXC JE2) 2004-2009 01
021 18061004 SHIELD, FRT BRK E (JE2) 2004-2009 01
021 18061005 SHIELD, FRT BRK E (JE2) 2004-2009 01
022 09595178 STUD, FRT WHL (ЧАСТЬ OF 23) (БОЛТ-ROUND HEAD, M12X1.5X40, W/SERRATIONS, GM6177M STL, GMW14) E 2004-2009 AR
023 12413103 HUB, FRT WHL (W/BRG) (INCLS 22) (W/WHL SPD SEN) (ACDelco #FW149) E (M22, M82, JE5) 2004-2007 02
023 12413105 HUB, FRT WHL (W/BRG) (INCLS 22) (INCLS SPEED SENSOR) (ACDelco #FW150) E26 (JE2, JE5, MX7) 2006-2006 02
023 12413105 HUB, FRT WHL (W/BRG) (INCLS 22) (INCLS SPEED SENSOR) (ACDelco #FW150) E26 (JE5, MV3, MX5) (EXC JE2) 2006-2006 02
024 18048934 ROTOR, FRT BRK (ACDelco #18048934) E 2004-2009 02
024 19175345 ROTOR, FRT BRK (ACDelco #18A1754) (DURASTOP) EB26 (LY7) 2004-2009 02
024 19175345 ROTOR, FRT BRK (ACDelco #18A1754) (DURASTOP) EB26 (LH2) 2006-2009 02
024 19241906 ROTOR, FRT BRK (ACDELCO ADVANTAGE) EB26 (LY7) 2004-2009 02
024 19241906 ROTOR, FRT BRK (ACDELCO ADVANTAGE) EB26 (LH2) 2006-2009 02
025 11515720 БОЛТ, FRT BRK ROT (M6X1X20, 12.3 OD) (FLAT 6 LOBED) (14.5 THD) (8.908) E 2004-2009 02
026 10282253 ГАЙКА, S/KNU (M14X2.0 6H THD) (6.164) E 2004-2007 02
027 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
028 18060356 БОЛТ, FRT BRK CLPR E 2004-2009 04
029 18060469 БОЛТ, FRT WHL HUB E 2004-2009 06
030 11588357 ГАЙКА, FRT STAB SHF LINK (AT SHF) (M12X1.75, 13.5 THK) (14.875) E 2004-2008 02
031 BUSHING, FRT LWR CONT ARM (FRT) (ЧАСТЬ OF 17) 2004-2009
032 11519961 БОЛТ-HFH M12X1.75X75, 28.25 THD, 26.6 OD, 10.9, 7114M, MACH, HDR-PT (FRT S/ABS YOKE) 2004-2009 02
033 25764673 YOKE, FRT S/ABS E 2004-2009 01
033 25764674 YOKE, FRT S/ABS E 2004-2009 01
034 11516383 ГАЙКА, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (FRT LWR CONT ARM) 2004-2009 02
035 11516078 ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (FRT S/ABS YOKE) 2004-2009 02
036 03537773 ГАЙКА, FRT LWR CONT ARM FRT (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) (5.383) E 2004-2008 02
037 11519151 БОЛТ, FRT LWR CONT ARM (HFH, M14X2X110) (POINTED POINT) (7.039) E 2004-2008 02
038 25750245 RETAINER, FRT STAB SHF INSL E 2004-2009 02
039 10368394 SHAFT, FRT STAB EB26 2004-2008 01
040 25759231 INSULATOR, FRT STAB SHF E 2004-2008 02
041 10364742 CЛАМПА, FRT STAB SHF INSL E 2004-2008 02
042 11515775 БОЛТ, HFH, M12X1.75X30, 10.9, 7114M (FRT STAB SHF INSL CLA) 2004-2009 04
043 15231140 LINK, FRT STAB SHF E 2004-2008 02
044 STUD, FRT UPR CONT ARM BALL (ЧАСТЬ OF 3) 2004-2009
045 BUSHING, FRT UPR CONT ARM (FRT) (ЧАСТЬ OF 3) 2004-2009
046 03537772 ГАЙКА, FRT UPR CONT ARM (ARM TO ARM BRKT) (ЧАСТЬ OF 3) (M12X1.75) (8.917) E 2004-2009 02
047 15815517 ГАЙКА, FRT S/ABS STUD (ЧАСТЬ OF 12) E (FE3, F55) 2006-2009 02
K01 88952018 WASHER KIT, FRT S/ABS (INCLS 4, 5) (INCLS 2-WASHERS AND 1-NUT) E (EXC FE3) 2005-2009 02
