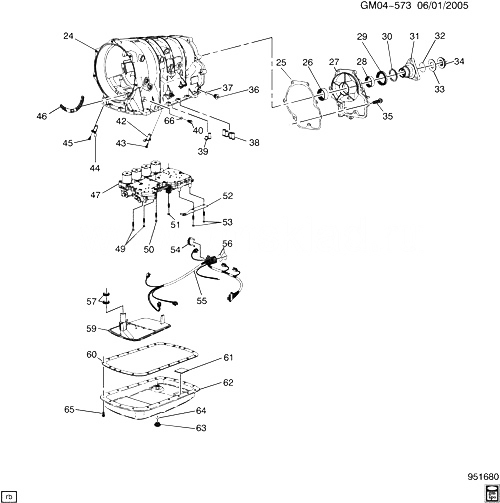

(GM04-573) - 2004-2009 E АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M82) (5L40E) CASE ДЕТАЛИ КОМПЛЕКТА CADILLAC - SRX 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
024 CASE, A/TRNS 2004-2009
025 96042861 GASKET, A/TRNS CASE EXTN (*KIT1) E (M82, M22) 2006-2006 01
026 24237771 BEARING, ВЫХОДНОЙ SHF (ЧАСТЬ OF 27) EB26 2006-2006 01
027 96042860 EXTENSION, A/TRNS CASE (INCLS 26, 28, 29) E (M82) 2006-2009 01
028 24237771 BEARING, ВЫХОДНОЙ SHF (ЧАСТЬ OF 27) EB26 2006-2006 01
029 96041851 SEAL, PROP SHF TRANS FLG FLUID (ЧАСТЬ OF 27) (*KIT1) E26 (LY7, M82) 2005-2009 01
030 RING, PROP SHF TRANS FLG RET (ЧАСТЬ OF 34) 2004-2009
031 FLANGE, TRANS PROP SHF 2005-2007
031 96042984 FLANGE, ВЫХОДНОЙ SHF E (LY7, M82) 2006-2009 01
032 SEAL, PROP SHF TRANS FLG (O RING) (ЧАСТЬ OF 34) 2004-2009
033 WASHER, PROP SHF TRANS FLG THR (ЧАСТЬ OF 34) 2004-2009
034 96041805 NUT KIT, ВЫХОДНОЙ SHFT (INCLS 30, 32, 33) (M6X1.0X16) E (M22, M82, MX5, MV3) 2004-2006 01
035 96025472 БОЛТ, A/TRNS CASE EXTN (M8X1.25X33) E (M22, MX5, MV3, M82) 2004-2006 07
036 96042793 PLUG, A/TRNS FLUID LVL HOLE (ЧАСТЬ OF 59) (*KIT1) E (MV3, M22, MX5, M82) 2005-2006 01
037 SEAL, TRANS FLUID FIL PLUG (ЧАСТЬ OF 59) 2004-2009
038 96041778 SLEEVE, CTR SUPT FLUID PASG (INCLS 39) (*KIT1) E (MV3, M22, MX5, M82) 2004-2006 01
039 SLEEVE, O/D CLU FLUID PASG (ЧАСТЬ OF 38) 2004-2009
040 96042539 PLUG, A/TRNS FLUID PRESS TEST HOLE E (MV3, M22, MX5, M82) 2004-2006 01
042 96041860 SENSOR, A/TRNS INPUT ВЫХОДНОЙ SPD (4.329) E 2004-2006 01
042 96041860 SENSOR, A/TRNS INPUT ВЫХОДНОЙ SPD E 2004-2006 01
043 96025052 БОЛТ, A/TRNS INPUT ВЫХОДНОЙ SPD SEN (M 6 X 1.0) E 2004-2006 02
044 96041860 SENSOR, A/TRNS INPUT ВЫХОДНОЙ SPD (4.329) E 2004-2006 01
044 96041860 SENSOR, A/TRNS INPUT ВЫХОДНОЙ SPD E 2004-2006 01
045 96025052 БОЛТ, A/TRNS INPUT ВЫХОДНОЙ SPD SEN (M 6 X 1.0) E 2004-2006 02
046 GASKET, A/TRNS ГИДРОНАСОС CVR (*KIT1) 2004-2009
047 96042963 VALVE, CONT (W/BODY VLV) (СМ. ГРУППУ 04.000 CONTROL VALVE BODY ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS SPACER PLATE GASKET) E (MX5, M82) 2004-2009 01
049 96021290 БОЛТ, VLV BODY (M8X1X50) E (MV3, M22, M82, MX5) 2004-2006 08
050 96021012 БОЛТ, VLV BODY (M6X1X67.4) E (MV3, M22, M82, MX5) 2004-2006 02
051 96021012 БОЛТ, VLV BODY (M6X1X67.4) E (MV3, M22, M82, MX5) 2004-2006 02
052 96042712 DETENT, MAN SHFT E (M82, MX5, M22, MV3) 2004-2006 01
053 БОЛТ, MAN SHFT DTNT 2004-2009
054 96017928 CLIP, WRG HARN E (LH2, LY7) 2004-2006 01
055 96042847 HARNESS, A/TRNS WRG E (LY7, LH2) 2005-2006 01
055 96042847 HARNESS, A/TRNS WRG (2.480) E (LY7, LH2) 2005-2006 01
056 96041849 SEAL, A/TRNS WRG CONN (O RING) (*KIT1) E 2004-2006 01
057 SEAL, A/TRNS FLUID FLTR (ЧАСТЬ OF 59) 2004-2009
059 96042545 FILTER KIT, A/TRNS FLUID (INCLS 36, 37, 57, 63, 64) (INCLS SEALS) (ACDelco #96042545) (CODE 3GBG) E (MV3, M22, M82, MX5) 2005-2006 01
060 96042862 GASKET, A/TRNS FLUID PAN (*KIT1) E (M82, MX5, M22, MV3) 2006-2006 01
061 08654701 MAGNET, A/TRNS FLUID PAN (ACDelco #8654701) E (MV3, M22, M82, MX5) 2004-2006 01
062 96043177 PAN KIT, A/TRNS FLUID (INCLS 63, 64) E (MV3, M22, M82, MX5) 2005-2006 01
063 90502556 PLUG, A/TRNS FLUID PAN DRN (ЧАСТЬ OF 59, 62) (INCLS 64) (M14) (*KIT1) (1.453) E (MV3, M22, MX5, M82) 2004-2006 01
064 90528145 SEAL, A/TRNS FLUID PAN DRN PLUG (O RING) (ЧАСТЬ OF 59, 62, 63) (18 X 2) (*KIT1) (1.456) E (MV3, MX5, M22, M82) 2004-2006 01
065 96020254 БОЛТ, A/TRNS FLUID PAN (M6X1.0X16) E (MV3, M22, M82, MX5) 2004-2006 20
066 SEAL, A/TRNS FLUID PRESS TEST HOLE PLUG 2004-2009
K01 96042945 ТРАНСМИССИЯ KIT, AUTO (SERV OVERHAUL W/GSKT, SEAL, RET) (INCLS 25, 29, 36, 38, 46, 56, 60, 63, 64) E (LY7, M82) 2005-2009 01
