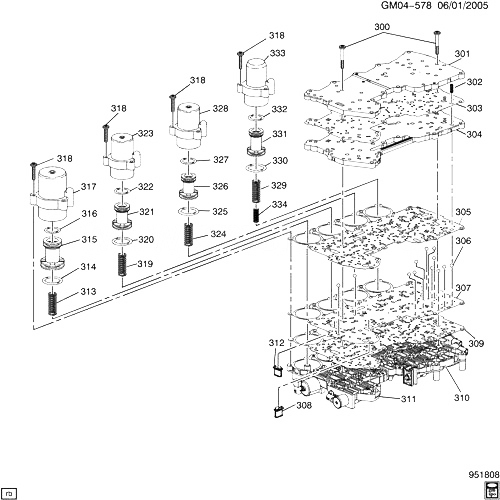

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 300 |
96020027 |
БОЛТ, C/VLV CHAN PLT |
E (M22, MV3) |
2006-2006 |
09 |
| 301 |
|
PLATE, C/VLV CHAN |
|
2004-2006 |
|
| 302 |
|
ПРУЖИНА, C/VLV CHAN PLT BALL CHK VLV |
|
2004-2006 |
|
| 303 |
|
GASKET, C/VLV CHAN PLT (*KIT2) |
|
2004-2006 |
|
| 304 |
|
PLATE, C/VLV CHAN |
|
2004-2006 |
|
| 305 |
|
GASKET, C/VLV BODY SPCR PLT (*KIT2) |
|
2004-2006 |
|
| 306 |
|
VALVE, C/VLV BODY BALL CHK (*KIT2) |
|
2004-2006 |
|
| 307 |
|
PLATE, C/VLV BODY SPCR |
|
2004-2006 |
|
| 308 |
24209145 |
ФИЛЬТР, PRESS CONT SOL VLV FLUID (*KIT2) (ACDelco #24209145)
| E (M22, MV3) |
2006-2006 |
01 |
|
| 309 |
|
GASKET, C/VLV BODY (*KIT2) |
|
2004-2006 |
|
| 310 |
|
BODY, C/VLV RR (СМ. ГРУППУ 04.000 CONTROL BODY/ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2006 |
|
| 311 |
|
BODY, C/VLV FRT |
|
2004-2006 |
|
| 312 |
24209145 |
ФИЛЬТР, PRESS CONT SOL VLV FLUID (*KIT2) (ACDelco #24209145)
| E (M22, MV3) |
2006-2006 |
01 |
|
| 313 |
|
ПРУЖИНА, DIR CLU ACCUM PSTN |
|
2004-2006 |
|
| 314 |
|
RING, DIR CLU ACCUM PSTN FLUID SEAL (*KIT2) |
|
2004-2006 |
|
| 315 |
|
PISTON, DIR CLU ACCUM |
|
2004-2006 |
|
| 316 |
|
RING, DIR CLU ACCUM PSTN FLUID SEAL (*KIT2) |
|
2004-2006 |
|
| 317 |
|
ШЛАНГИ, DIR CLU ACCUM |
|
2004-2006 |
|
| 318 |
|
БОЛТ, INTER CLU ACCUM |
|
2004-2006 |
|
| 318 |
|
БОЛТ, O/D CLU ACCUM |
|
2004-2006 |
|
| 318 |
|
БОЛТ, 2ND CLU ACCUM |
|
2004-2006 |
|
| 318 |
96025325 |
БОЛТ, DIR CLU ACCUM (4.265) |
E (M22, MV3) |
2006-2006 |
03 |
| 319 |
|
ПРУЖИНА, O/D CLU ACCUM PSTN |
|
2004-2006 |
|
| 320 |
|
RING, O/D CLU ACCUM PSTN FLUID SEAL |
|
2004-2006 |
|
| 321 |
|
PISTON, O/D CLU ACCUM |
|
2004-2006 |
|
| 322 |
|
RING, O/D CLU ACCUM PSTN FLUID SEAL |
|
2004-2006 |
|
| 323 |
|
ШЛАНГИ, O/D CLU ACCUM |
|
2004-2006 |
|
| 324 |
|
ПРУЖИНА, INTER CLU ACCUM PSTN |
|
2004-2006 |
|
| 325 |
|
RING, INTER CLU ACCUM PSTN FLUID SEAL |
|
2004-2006 |
|
| 326 |
|
PISTON, INTER CLU ACCUM |
|
2004-2006 |
|
| 327 |
|
RING, INTER CLU ACCUM PSTN FLUID SEAL |
|
2004-2006 |
|
| 328 |
|
ШЛАНГИ, INTER CLU ACCUM |
|
2004-2006 |
|
| 329 |
|
ПРУЖИНА, 2ND CLU ACCUM PSTN |
|
2004-2006 |
|
| 330 |
|
RING, 2ND CLU ACCUM PSTN FLUID SEAL (*KIT2) |
|
2004-2006 |
|
| 331 |
|
PISTON, 2ND CLU ACCUM |
|
2004-2006 |
|
| 332 |
|
RING, 2ND CLU ACCUM PSTN FLUID SEAL (*KIT2) |
|
2004-2006 |
|
| 333 |
|
ШЛАНГИ, 2ND CLU ACCUM |
|
2004-2006 |
|
| 334 |
|
ПРУЖИНА, 2ND CLU ACCUM PSTN CUSH |
|
2004-2006 |
|
| K02 |
96042987 |
GASKET KIT, A/TRNS (INCLS 303, 305, 306, 308, 309, 312, 314, 316, 330, 332) (4.265) |
E (M22, MV3) |
2004-2006 |
01 |
