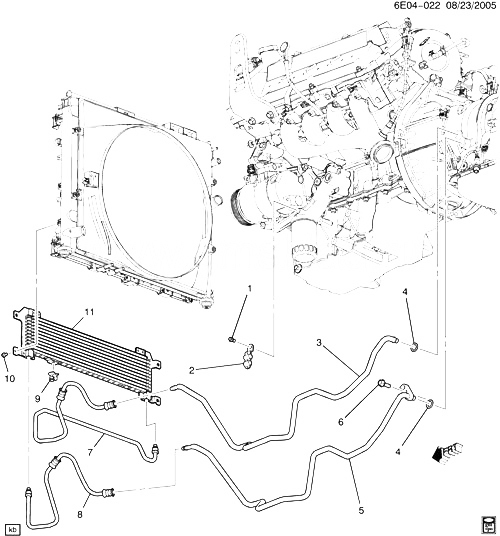

(6E04-022) - 2006 E АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА (V92) CADILLAC - SRX 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2006-2009 01
002 89022494 BRACKET, TRANS FLUID CLR E (LH2, LY7) 2006-2007 01
003 19129780 HOSE, TRANS FLUID CLR UPR (W/O BLOCK) E (LH2) 2006-2006 01
003 19129782 HOSE, TRANS FLUID CLR UPR (W/O BLOCK) E (LY7, V92) 2006-2006 01
004 19130214 SEAL, TRANS FLUID CLR HOSE CONN (O RING) E (LH2, LY7, JJA) 2006-2007 02
005 19129779 HOSE, TRANS FLUID CLR LWR (W/BLOCK) E (LH2) 2006-2006 01
005 19129781 HOSE, TRANS FLUID CLR LWR (W/BLOCK) E (LY7, V92) 2006-2006 01
006 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2006-2009 01
007 PIPE, TRANS FLUID CLR LWR (ЧАСТЬ OF 11) 2006-2006
008 PIPE, TRANS FLUID CLR UPR (ЧАСТЬ OF 11) 2006-2006
009 CLIP, TRANS FLUID CLR PIPE (ЧАСТЬ OF 11) 2006-2006
010 БОЛТ, TRANS FLUID CLR (ЧАСТЬ OF 11) 2006-2006
011 89022522 COOLER, TRANS FLUID (INCLS 7-10) E (LH2, LY7, V92) 2006-2007 01
