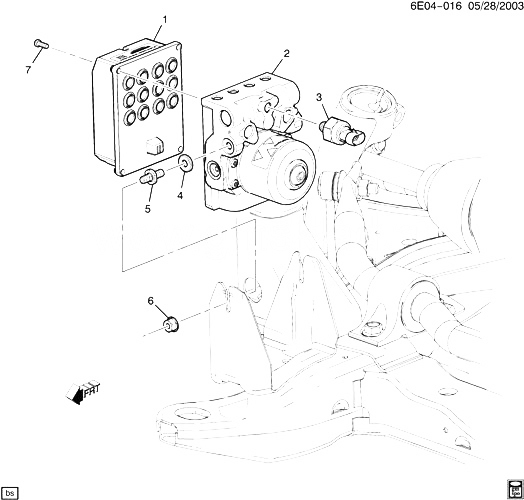

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89060339 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (REQS PROGRAMMINGBRK APPLY SEN REQS CALNREFER TO SERV INFO) (ACDelco #89060339)
| E26 (FE1, FE3) |
2005-2006 |
01 |
|
| 002 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3, 4) (ACDelco #89060233)
| E26 (FE1) |
2005-2006 |
01 |
|
| 002 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3, 4) (ACDelco #89060233)
| E26 (FE3, Q15) |
2005-2006 |
01 |
|
| 002 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3, 4) (ACDelco #89060233)
| E26 (FE3, Q16) |
2005-2009 |
01 |
|
| 003 |
25743362 |
SENSOR, BRK PRESS MOD VLV PRESS (ЧАСТЬ OF 2) (ACDelco #25743362)
| E26 |
2005-2009 |
01 |
|
| 004 |
25741456 |
INSULATOR, BRK PRESS MOD VLV (ЧАСТЬ OF 2) |
E |
2005-2009 |
03 |
| 005 |
11588304 |
STUD, FLANGE DOUBLE END, M8X14 UNTHD, M8X1.25X13, 17 OD, 5.8, GM4345M (BRK PRESS MOD VLV BRKT) |
|
2004-2009 |
02 |
| 006 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (BRK PRESS MOD VLV BRKT) (8.915) (ACDelco #11514596) |
|
2004-2009 |
02 |
| 007 |
11508351 |
SCREW, PAN HD, C/R, 5X0.8X13, 9.3 OD, FULL THD, THD RLLR, 6171M, PC (BRK PRESS MOD VLV) (8.977) |
|
2004-2009 |
04 |
