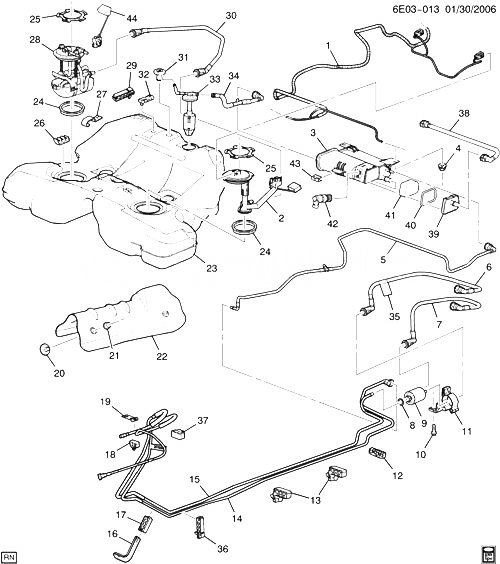

(6E03-013) - 2004-2009 E СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ (LH2/4.6A) CADILLAC - SRX 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15924706 HARNESS, FUEL SDR WRG (3.115) E26 2004-2008 01
001 15924706 HARNESS, FUEL SDR WRG E26 2004-2008 01
002 88965813 SENDER KIT, FUEL (INCLS 24) (FOR AUXILARY МОДУЛЬ) (ACDelco #MU1579) E 2005-2007 01
003 19177355 CANISTER, EVAP EMIS (CANISTER WITHOUT COVER OR FILTER) (INCLS 39, 43) (ACDelco #215-644) E26 2004-2007 01
004 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT) 2004-2009 01
005 15278918 PIPE, EVAP EMIS CNSTR PURGE E 2005-2006 01
006 15219486 PIPE, FUEL FEED RR (INCLS 35) E 2005-2009 01
007 15219484 PIPE, FUEL RTN RR E 2005-2009 01
008 22514722 SEAL, FUEL FEED FRT PIPE (O RING) (ЧАСТЬ OF PIPE, FEED RTN ASM BUNDLE) (7.35MM ID X 1.66MM THK) (ACDelco #217-452) E (LH2, LY7) 2004-2009 01
009 25763176 ФИЛЬТР, FUEL (ACDelco #GF897) E (LH2, LY7) 2004-2009 01
010 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT) 2004-2009 01
011 25701014 RETAINER, FUEL FLTR E (LH2, LY7) 2004-2007 01
012 25688547 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) E (LH2) 2004-2007 01
013 15270078 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) E (LH2) 2004-2007 02
014 25917777 PIPE, EVAP EMIS CNSTR PURGE E (LH2) 2005-2006 01
015 10360402 PIPE, FUEL FEED (INCLS 19) E26 (LH2) 2005-2007 01
015 25917776 PIPE, FUEL FEED (INCLS 19) E (LH2) 2005-2009 01
016 25761218 BRACKET, FUEL PIPE E 2004-2009 01
017 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE (3.162) E26 2004-2006 01
017 25761217 CLIP, FUEL FEED EVAP EMIS FRT PIPE E26 2004-2006 01
018 25765594 CLIP, FUEL FEED EVAP EMIS FRT PIPE (42.10MM LENGTH) (3.162) E (LH2) 2004-2007 01
018 25765594 CLIP, FUEL FEED EVAP EMIS FRT PIPE (42.10MM LENGTH) E (LH2) 2004-2007 01
019 LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 15) 2004-2009
020 25679213 PIN, F/TNK UPR SHLD E 2004-2009 04
021 RETAINER, F/TNK SHLD (ЧАСТЬ OF 23) 2004-2009
022 25679209 SHIELD, F/TNK E 2005-2009 01
023 25894460 TANK, FUEL (INCLS 21, 26, 27, 31, 33, 34) E 2005-2007 01
024 25901272 SEAL, FUEL SDR (ЧАСТЬ OF 2, 28, 44) (ACDelco #G37) E 2004-2009 02
025 25740096 CAM, FUEL SDR (ACDelco #TR23) E 2005-2009 02
026 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (ЧАСТЬ OF 23) 2004-2009
027 RETAINER, FUEL SDR (ЧАСТЬ OF 23) 2004-2009
028 19181827 МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 24) (ACDelco #M10201) E26 2004-2008 01
028 19181827 МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 24) (3.107) (ACDelco #M10201) E26 2004-2008 01
029 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) E 2004-2009 01
029 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) E 2004-2009 01
030 15951521 PIPE, FUEL SDR FUEL FEED (INCLS CONN) (PIPE ATTACHES TO SENDING UNITS INSIDE OF GAS TANK) E 2004-2006 01
031 VALVE, F/TNK FIL HOSE CHK (ЧАСТЬ OF 23) 2004-2009
032 16238399 SENSOR, F/TNK PRESS (ACDelco #16238399) E 2005-2009 01
033 VALVE, F/TNK VENT (ЧАСТЬ OF 23) 2004-2009
034 VALVE, F/TNK VENT (ЧАСТЬ OF 23) 2004-2009
035 LABEL, FUEL FEED RTN PIPE CAUTION (ЧАСТЬ OF 6) 2004-2009
036 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) E26 (LH2) 2004-2008 01
036 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) (3.162) E (LH2) 2004-2008 01
037 25751324 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 7.95 9.5 DIA FUEL LINE, HAS CHRISTMAS TREE RETAINER) (3.162) E (LH2) 2004-2009 01
037 25751324 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 7.95 9.5 DIA FUEL LINE, HAS CHRISTMAS TREE RETAINER) E (LH2) 2004-2009 01
038 17114722 HOSE, EVAP EMIS CNSTR AIR INL (3.130) (ACDelco #219-366) E26 2004-2008 01
039 17114723 COVER, EVAP EMIS CNSTR AIR INL OPG (ЧАСТЬ OF 3) E26 2004-2007 01
040 SEAL, EVAP EMIS CNSTR FLTR (ЧАСТЬ OF 41) 2004-2009
041 19177365 FILTER KIT, EVAP EMIS CNSTR (W/ SEAL) (INCLS 40) E26 2004-2007 01
042 25932573 VALVE, EVAP EMIS CNSTR VENT SOL (ACDelco #214-2230) E26 2006-2008 01
043 RETAINER, EVAP EMIS CNSTR (ЧАСТЬ OF 3) 2004-2009
044 88967139 SENSOR KIT, FUEL LVL (PRIMARY) (INCLS 24) (ACDelco #SK1161) E 2004-2007 01
