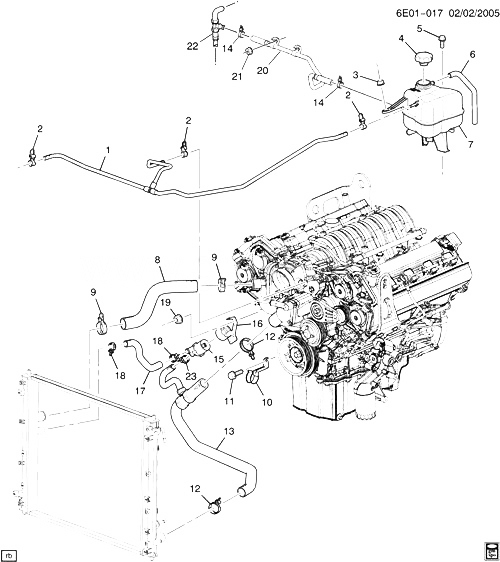

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88956903 |
HOSE, RAD SURGE TK INL (INCLS 2)
| E (LH2, JJA) |
2004-2006 |
01 |
|
| 002 |
11570614 |
CЛАМПА-ПРУЖИНАBAND, 15 NOMINAL DIA, 15 THK, STL, ROBO (ЧАСТЬ OF 1) |
|
2004-2006 |
03 |
| 003 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (RAD SURGE TK)
|
2004-2006 |
01 |
|
| 004 |
15075118 |
CAP, RAD SURGE TK (ЧАСТЬ OF 7) (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98)
| E |
2004-2006 |
01 |
|
| 005 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (RAD SURGE TK) (ACDelco #11517518)
|
2004-2006 |
01 |
|
| 006 |
25757865 |
HOSE, RAD SURGE TK OVFL (ЧАСТЬ OF 7) |
E |
2004-2006 |
01 |
| 007 |
25767641 |
TANK, RAD SURGE (INCLS 4, 6) (INCLS LOW COOLANT SWITCH) (ACDelco #25767641)
| E |
2004-2006 |
01 |
|
| 008 |
89023434 |
HOSE, RAD INL (INCLS 9)
| E (LH2, V92) |
2004-2006 |
01 |
|
| 009 |
11516233 |
CЛАМПА-ПРУЖИНАBAND, TYPE A, 15 WID, 40 HOSE OD, 6150M, 7111M, MM (ЧАСТЬ OF 8)
|
2004-2006 |
02 |
|
| 010 |
15261734 |
BRACKET, RAD OTLT HOSE |
E (LH2, V92) |
2005-2006 |
01 |
| 011 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (RAD OTLT HOSE BRKT) (T/W 12345493 REPLCS 25534835)
|
2004-2006 |
01 |
|
| 012 |
11516233 |
CЛАМПА-ПРУЖИНАBAND, TYPE A, 15 WID, 40 HOSE OD, 6150M, 7111M, MM (ЧАСТЬ OF 13)
|
2004-2006 |
02 |
|
| 013 |
89023436 |
HOSE, RAD OTLT (INCLS 12, 23) |
E (LH2, V92) |
2004-2006 |
01 |
| 014 |
11517136 |
CЛАМПА, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (ЧАСТЬ OF 20) |
(LH2) |
2004-2006 |
02 |
| 015 |
25746579 |
PUMP, AUX WAT (INCLS 16-18) (ACDelco #251-683) |
E (LH2, V92) |
2004-2006 |
01 |
| 016 |
|
BRACKET, AUX W/PMP (ЧАСТЬ OF 15) |
|
2004-2006 |
|
| 017 |
88958083 |
HOSE, AUX W/PMP OTLT (ЧАСТЬ OF 15) (INCLS 18) |
E (LH2, V92) |
2004-2006 |
01 |
| 018 |
|
CЛАМПА, AUX W/PMP OTLT HOSE (ЧАСТЬ OF 15, 17) |
|
2004-2006 |
|
| 019 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (AUX W/PMP) |
|
2004-2006 |
02 |
| 020 |
88956890 |
HOSE, RAD SURGE TK OTLT (INCLS 14) (8.846) |
E (LH2) |
2004-2006 |
01 |
| 021 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (RAD SURGE TK OTLT HOSE CLIP BRKT) |
|
2004-2006 |
02 |
| 022 |
|
HOSE, HTR INL OTLT (СМ. ГРУППУ 08.000 ШЛАНГИИ ТРУБКИ НАГРЕВАТЕЛЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2006 |
|
| 023 |
11570614 |
CЛАМПА-ПРУЖИНАBAND, 15 NOMINAL DIA, 15 THK, STL, ROBO (ЧАСТЬ OF 13) |
|
2004-2006 |
01 |
