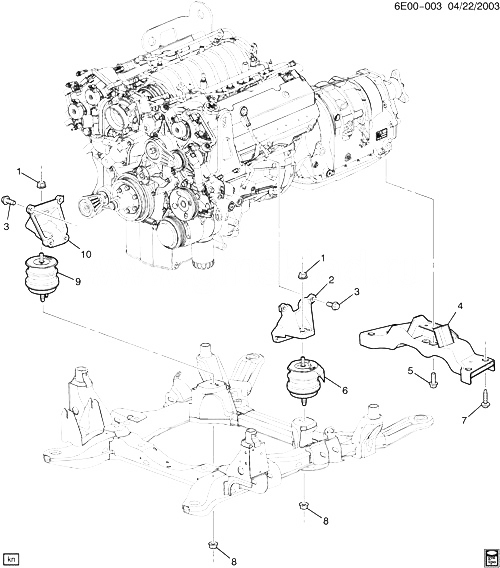

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11517780 |
ГАЙКА, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT)
|
2004-2006 |
02 |
|
| 002 |
25762620 |
BRACKET, ENG MT |
E (LH2, MV3, M22) |
2004-2006 |
01 |
| 003 |
11516328 |
БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (ENG MT BRKT)
|
2004-2006 |
08 |
|
| 004 |
25892303 |
MOUNT, TRANS RR |
E (M22, M82) |
2004-2006 |
01 |
| 005 |
11515775 |
БОЛТ, HFH, M12X1.75X30, 10.9, 7114M (TRANS MT)
|
2004-2006 |
02 |
|
| 006 |
25971086 |
MOUNT, ENG
| E (LH2, MV3, M22) |
2005-2006 |
01 |
|
| 007 |
11517383 |
БОЛТ, HEX W/CON SPR WASH, M10X1.5X55, 28 OD, 37 THD, 10.9, 7114M (TRANS RR MT BRKT) |
|
2004-2006 |
04 |
| 008 |
11517780 |
ГАЙКА, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT FRM SI)
|
2004-2006 |
02 |
|
| 009 |
25971085 |
MOUNT, ENG
| E (LH2, MV3) |
2004-2006 |
01 |
|
| 009 |
25971087 |
MOUNT, ENG |
E (LH2, M22) |
2005-2006 |
01 |
| 010 |
25716470 |
BRACKET, ENG MT |
E (LH2, MV3) |
2004-2006 |
01 |
| 010 |
25762621 |
BRACKET, ENG MT |
E (LH2, M22) |
2004-2006 |
01 |
