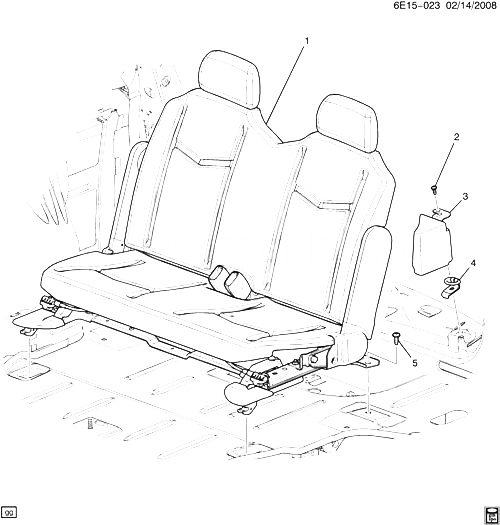

(6E15-023) - 2004-2009 E ЗАДНЕЕ СИДЕНЬЕ #2 КРЕПЛЕНИЕ(AM0) CADILLAC - SRX 2005
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | SEAT, RR #2 (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) | 2004-2006 | |||
| 002 | 11609257 | БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (CARGO TIE DN HOOK) (8.907)|
| 2004-2009 |
04 |
|
| 003 | 25746011 | SUPPORT, R/SEAT #2 BK CUSH | E | 2004-2009 | 01 |
| 003 | 25746012 | SUPPORT, R/SEAT #2 BK CUSH | E | 2004-2009 | 01 |
| 004 | 25764204 | HOOK, CARGO TIE DN (W/STRAIGHT BRKT)| E |
2004-2009 |
04 |
|
| 005 | 11609257 | БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (R/SEAT #2) (8.907)|
| 2004-2009 |
03 |
|
