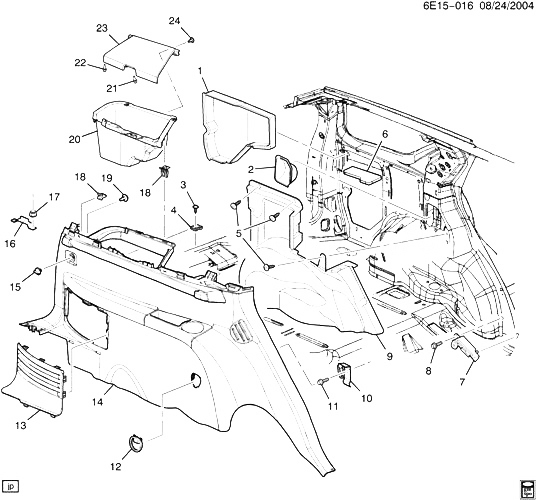

(6E15-016) - 2005 E ОТДЕЛКА/QUARTER-LH CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10374321 BARRIER, QTR INR PNL RR SND E 2005-2005 01
002 25762934 BARRIER, C/PLR INR PNL SND E 2005-2005 01
003 15714276 SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (ЧАСТЬ OF 14) (8.977) 2005-2005 01
004 25605716 ГАЙКА, ASST HDL (ЧАСТЬ OF 14) (13.8 X 14.9, 15.3) (U-SHAPED) (8.133) E 2005-2005 01
005 20030401 RETAINER, RR W/H INR PNL FRT SND BARR (BLACK) (12.804) E 2005-2005 04
006 25753659 INSULATOR, C/PLR INR PNL (STUFFER-SEAT BELT) E 2005-2005 02
007 BRACKET, BODY SI RR LWR T/PNL 2005-2005
008 11517484 БОЛТ-HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (BODY SI RR LWR T/PNL BRKT) 2005-2005 01
009 10374313 BARRIER, RR W/H INR PNL SND E 2005-2005 01
010 25764204 HOOK, CARGO TIE DN (W/STRAIGHT BRKT) E 2005-2005 04
011 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (CARGO TIE DN HOOK) (8.907) 2005-2005 04
012 25764200 BEZEL, CARGO TIE DN LOOP (GRAY) (W/CHILD RESTRAINT) E (13I) 2005-2005 02
012 25764201 BEZEL, CARGO TIE DN LOOP (NEUTRAL) (W/CHILD RESTRAINT) E (70I) 2005-2005 02
012 25764202 BEZEL, CARGO TIE DN LOOP (EBONY) (W/CHILD RESTRAINT) E (19I) 2005-2005 02
013 89022739 GRILLE, RDO R/Q TR PNL SPKR (ЧАСТЬ OF 14) (GRAY) E (13I) 2005-2005 01
013 89022740 GRILLE, RDO R/Q TR PNL SPKR (ЧАСТЬ OF 14) (NEUTRAL) E26 (70I) 2005-2005 01
013 89022741 GRILLE, RDO R/Q TR PNL SPKR (ЧАСТЬ OF 14) (BLACK) E (19I) 2005-2005 01
014 25764782 PANEL, BODY SI LWR TR (INCLS 3, 4, 13, 15, 18-24) (GRAY) E (13I) 2005-2005 01
014 25764783 PANEL, BODY SI LWR TR (INCLS 3, 4, 13, 15, 18-24) (EBONY) E (19I) 2005-2005 01
014 25764784 PANEL, BODY SI LWR TR (INCLS 3, 4, 13, 15, 18-24) (NEUTRAL) E (70I) 2005-2005 01
015 21994244 HOOK, CONVENIENCE NET SNAP (ЧАСТЬ OF 14) E 2005-2005 01
016 25755415 BRACKET, R/FLR PNL CPT RET E 2005-2005 02
017 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/FLR PNL CPT RET BRKT) 2005-2005 04
018 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 14) 2005-2005 19
019 11609374 БОЛТ-WASHER, M6X1X16, 17 OD, 12 THD, 9.8, GMW3359, 1.47 H-REG FL WA. (ЧАСТЬ OF 14) 2005-2005 01
020 COMPARTMENT, BODY SI RR STOW (ЧАСТЬ OF 14) 2005-2005
021 BUMPER, BODY SI T/PNL OPG ACC CVR (ЧАСТЬ OF 14) 2005-2005
022 22611883 BUMPER, BODY SI T/PNL OPG ACC CVR (ЧАСТЬ OF 14) (BLACK) (6.6 DIA X 4.7 H) (10.263) E26 2005-2005 02
023 88957062 LID, CARGO BOX STOW BOX (ЧАСТЬ OF 14) (GRAY) E (13I, 19I) 2005-2005 01
023 88957063 LID, CARGO BOX STOW BOX (ЧАСТЬ OF 14) (NEUTRAL) E (70I) 2005-2005 01
024 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 14) 2005-2005 04
