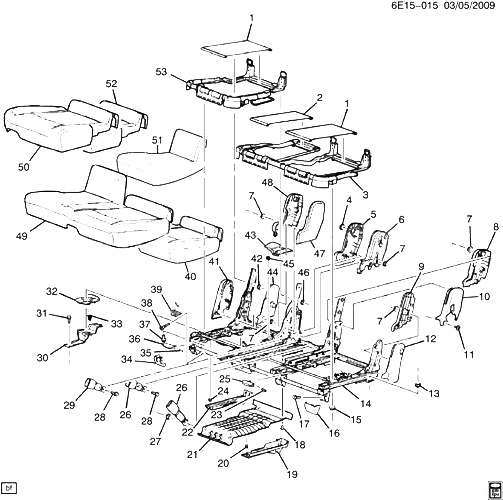

(6E15-015) - 2004-2009 E ЗАДНЕЕ СИДЕНЬЕ-CUSHION CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88898379 SUPPORT, R/SEAT CUSH PAD WIRE (LH/RH) (OUTBOARD) (*KIT1) E 2004-2009 02
002 88898380 SUPPORT, R/SEAT CUSH PAD WIRE (CTR) (*KIT1) E 2004-2009 01
003 88995274 РАМА, R/SEAT CUSH (*KIT1) (11.419) E 2005-2009 01
004 88992509 CAP, R/SEAT BK CUSH PNL БОЛТ (NEUTRAL) (FLIP FOLD) (*KIT1) E (70I) 2004-2005 01
004 88993147 CAP, R/SEAT BK CUSH PNL БОЛТ (EBONY) (INNER) (*KIT1) E (19I) 2004-2009 01
004 88993148 CAP, R/SEAT BK CUSH PNL БОЛТ (GRAY) (INNER) (*KIT1) E (13I) 2004-2009 01
005 88994634 COVER, R/SEAT HGE FIN (EBONY) (60% SIDE-OUTER) (*KIT1) E (19I) 2004-2009 01
005 88995147 COVER, R/SEAT HGE FIN (GRAY) (60% SIDE-OUTER) (*KIT1) E (13I) 2004-2009 01
005 88995149 COVER, R/SEAT HGE FIN (NEUTRAL) (60% SIDE-OUTER) (*KIT1) E (70I) 2004-2005 01
006 88994576 COVER, R/SEAT HGE FIN (GRAY) (60% SIDE-INNER) (*KIT1) E (13I) 2004-2009 01
006 88994577 COVER, R/SEAT HGE FIN (EBONY) (60% SIDE-INNER) (*KIT1) E (19I) 2004-2009 01
006 88994578 COVER, R/SEAT HGE FIN (NEUTRAL) (60% SIDE-INNER) (*KIT1) E (70I) 2004-2005 01
007 16512106 ГАЙКА, R/SEAT BK CUSH PIV SUPT (M4X0.7, 4.85MM THK) (*KIT1) (2.679) E 2004-2009 13
008 88992359 COVER, R/SEAT HGE FIN (GRAY) (60% SIDE-CTR) (*KIT1) E (13I) 2004-2009 01
008 88992360 COVER, R/SEAT HGE FIN (EBONY) (60% SIDE-CTR) (*KIT1) E (19I) 2004-2009 01
008 88992361 COVER, R/SEAT HGE FIN (NEUTRAL) (60% SIDE-CTR) (*KIT1) E (70I) 2004-2005 01
009 88994579 COVER, R/SEAT HGE FIN (GRAY) (60% SIDE-INNER) (*KIT1) E (13I) 2004-2009 01
009 88994580 COVER, R/SEAT HGE FIN (EBONY) (60% SIDE-INNER) (*KIT1) E (19I) 2004-2009 01
009 88994581 COVER, R/SEAT HGE FIN (NEUTRAL) (60% SIDE-INNER) (*KIT1) E (70I) 2004-2005 01
010 88994564 COVER, R/SEAT HGE FIN (GRAY) (60% SIDE-CTR) (*KIT1) E (13I) 2004-2009 01
010 88994565 COVER, R/SEAT HGE FIN (EBONY) (60% SIDE-CTR) (*KIT1) E (19I) 2004-2009 01
010 88994566 COVER, R/SEAT HGE FIN (NEUTRAL) (CTR) (*KIT1) E (70I) 2004-2005 01
011 11515893 SCREW, RD WA HD, SELF TAP, M4.2X1.4X13, 8.63 O.D., STL, NIOR (R/SEAT CUSH) (*KIT1) 2004-2009 08
012 88993131 COVER, R/SEAT HGE FIN (NEUTRAL) (60% SIDE-OUTER) (*KIT1) E (70I) 2004-2005 01
012 88993132 COVER, R/SEAT HGE FIN (EBONY) (60% SIDE-OUTER) (*KIT1) E (192) 2004-2009 01
012 88994567 COVER, R/SEAT HGE FIN (GRAY) (60% SIDE-OUTER) (*KIT1) E (13I) 2004-2009 01
013 11514598 ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (R/SEAT) 2004-2009 04
014 88994828 ADJUSTER, R/SEAT (INCLS 23, 25, 35, 36) (W/АМОРТИЗАТОР PADS) (DEALER MAY ALSO NEED TO ORDER 88993028 CABLE) (*KIT1) E 2004-2009 01
015 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (R/SEAT CUSH FRM) (*KIT1) 2004-2009 02
016 88898360 COVER, R/SEAT ADJR FIN OTR LWR FRT (NEUTRAL) (*KIT1) E (70I) 2004-2005 01
016 88898361 COVER, R/SEAT ADJR FIN OTR LWR FRT (EBONY) (*KIT1) E (19I) 2004-2009 01
016 88898362 COVER, R/SEAT ADJR FIN OTR LWR FRT (GRAY) (*KIT1) E (13I) 2004-2009 01
017 11515776 БОЛТ, HFH, M12X1.75X35, 31 THD, 26.6 OD, 10.9 MAT, 7114M FIN, MACH (R/SEAT) (*KIT1) 2004-2009 04
018 88993063 БОЛТ, R/SEAT (8-18X0.5, 0.44 OD) (CONTROL HEADS BOTTOM PANEL MTG) (*KIT1) E 2004-2009 AR
019 88992995 COVER, R/SEAT LAT FIN (EBONY) (OUTBOARD) (*KIT1) E 2004-2009 01
020 RETAINER, R/SEAT LAT FIN CVR (*KIT1) 2004-2009
021 88993442 COVER, R/SEAT CUSH (EBONY) (UNDERSIDE) (*KIT1) E (192) (EXC ATZ) 2004-2009 01
022 88992996 COVER, R/SEAT LAT FIN (K1) (EBONY) (INBOARD) E 2004-2009 01
023 PIN, R/SEAT ADJR LAT REL HDL PIV (ЧАСТЬ OF 14) (*KIT1) 2004-2009
024 RETAINER, R/SEAT LAT FIN CVR (*KIT1) 2004-2009
025 HANDLE, R/SEAT ADJR (ЧАСТЬ OF 14) (*KIT1) 2004-2009
026 88957465 BELT KIT, R/SEAT (BKL SI) (GRAY) (USED FOR BOTH LH CTR POSITIONS) (*KIT1) E (13I) 2004-2009 01
026 88957466 BELT KIT, R/SEAT (BKL SI) (NEUTRAL) (USED FOR BOTH LH CTR POSITIONS) (*KIT1) E (70I) (EXC ATZ) 2004-2005 01
026 88957467 BELT KIT, R/SEAT (BKL SI) (EBONY) (USED FOR BOTH LH CTR POSITIONS) (*KIT1) E (19I) 2004-2009 01
027 11517996 ГАЙКА, R/SEAT BELT (BKL SI) (M10X1.5, 11.2 THK) (*KIT1) (8.917) E26 (AX4) (EXC ATZ) (EXPORT) 2004-2009 02
028 88993060 БОЛТ, R/SEAT BELT (LAT SI) (M10X1.5X28, 20 OD) (40% BK LATCH MTG) (*KIT1) E (EXC ATZ) 2004-2009 02
029 88957462 BELT KIT, R/SEAT (BKL SI) (GRAY) (*KIT1) E (13I) 2004-2009 01
029 88957463 BELT KIT, R/SEAT (BKL SI) (NEUTRAL) (*KIT1) E (70I) (EXC ATZ) 2004-2005 01
029 88957464 BELT KIT, R/SEAT (BKL SI) (EBONY) (*KIT1) E (19I) 2004-2009 01
030 25746134 BRACKET, R/SEAT RR (ПОЛ OUTBOARD) (*KIT1) E 2004-2009 01
030 25768184 BRACKET, R/SEAT RR (W/WELD STUD ATTACH) (*KIT1) E 2004-2009 01
031 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (R/SEAT RR BRKT) (*KIT1) (8.907) 2004-2009 04
032 15251030 COVER, R/SEAT HGE FIN (INCLS 33) (GRAY) (SEAT LATCH ПОЛ TRIM) (*KIT1) E (13I) 2004-2009 01
032 25756531 COVER, R/SEAT HGE FIN (INCLS 33) (NEUTRAL) (SEAT LATCH ПОЛ TRIM) (*KIT1) E (70I) 2004-2005 01
032 25756532 COVER, R/SEAT HGE FIN (INCLS 33) (EBONY) (SEAT LATCH ПОЛ TRIM) (*KIT1) E (19I) 2004-2005 01
033 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 32) (*KIT1) 2004-2009 01
034 88898357 COVER, R/SEAT ADJR FIN OTR LWR FRT (NEUTRAL) (*KIT1) E (70I) 2004-2005 01
034 88898358 COVER, R/SEAT ADJR FIN OTR LWR FRT (EBONY) (*KIT1) E (19I) 2004-2009 01
034 88898359 COVER, R/SEAT ADJR FIN OTR LWR FRT (GRAY) (*KIT1) E (13I) 2004-2009 01
035 PIN, R/SEAT ADJR LAT REL HDL PIV (ЧАСТЬ OF 14) (*KIT1) 2004-2009
036 HANDLE, R/SEAT ADJR (ЧАСТЬ OF 14) (*KIT1) 2004-2009
037 11515893 SCREW, RD WA HD, SELF TAP, M4.2X1.4X13, 8.63 O.D., STL, NIOR (R/SEAT CUSH) (*KIT1) 2004-2009 08
038 11515759 БОЛТ, FLG HD (M8-1.25X35)9.8 ZOR (R/SEAT CUSH FRM) (*KIT1) 2004-2009 02
039 88993779 ПРУЖИНА, R/SEAT ADJR LAT (*KIT1) E 2004-2009 02
040 88898278 PAD, R/SEAT CUSH (*KIT1) E 2004-2009 01
041 88994570 COVER, R/SEAT HGE FIN (GRAY) (40% SIDE-OUTER) (*KIT1) E (13I) 2004-2009 01
041 88994571 COVER, R/SEAT HGE FIN (EBONY) (40% SIDE-OUTER) (*KIT1) E (19I) 2004-2009 01
041 88994572 COVER, R/SEAT HGE FIN (NEUTRAL) (40% SIDE-OUTER) (*KIT1) E (70I) 2004-2005 01
042 ГАЙКА, R/SEAT (*KIT1) 2004-2009
043 COVER, R/SEAT TRK FIN (*KIT1) 2004-2009
044 88992380 COVER, R/SEAT HGE FIN (EBONY) (40% SIDE-INNER) (*KIT1) E (19I) 2004-2009 01
044 88994582 COVER, R/SEAT HGE FIN (GRAY) (40% SIDE-INNER) (*KIT1) E (13I) 2004-2009 01
044 88994584 COVER, R/SEAT HGE FIN (NEUTRAL) (40% SIDE-INNER) (*KIT1) E (70I) 2004-2005 01
045 CLIP, R/SEAT TRK FINCOVER (*KIT1) 2004-2009
046 16512106 ГАЙКА, R/SEAT BK CUSH PIV SUPT (M4X0.7, 4.85MM THK) (*KIT1) (2.679) E 2004-2009 13
047 88993140 COVER, R/SEAT HGE FIN (NEUTRAL) (40% SIDE-OUTER) (*KIT1) E (70I) 2004-2005 01
047 88994573 COVER, R/SEAT HGE FIN (GRAY) (40% SIDE-OUTER) (*KIT1) E (13I) 2004-2009 01
047 88994574 COVER, R/SEAT HGE FIN (EBONY) (40% SIDE-OUTER) (*KIT1) E (19I) 2004-2009 01
048 88994585 COVER, R/SEAT HGE FIN (GRAY) (40% SIDE-INNER) (*KIT1) E (13I) 2004-2009 01
048 88994586 COVER, R/SEAT HGE FIN (EBONY) (40% SIDE-INNER) (*KIT1) E (19I) 2004-2009 01
048 88994587 COVER, R/SEAT HGE FIN (NEUTRAL) (40% SIDE-INNER) (*KIT1) E (70I) 2004-2005 01
049 88995692 COVER, R/SEAT CUSH (GRAY) (*KIT1) E (132) (EXC ATZ) 2005-2009 01
049 88995693 COVER, R/SEAT CUSH (EBONY) (*KIT1) E (192) (EXC ATZ) 2005-2009 01
049 88995694 COVER, R/SEAT CUSH (NEUTRAL) (*KIT1) E (702) (EXC ATZ) 2005-2005 01
050 88995688 COVER, R/SEAT CUSH (GRAY) (*KIT1) E (132) (EXC ATZ) 2005-2009 01
050 88995689 COVER, R/SEAT CUSH (EBONY) (*KIT1) E (192) (EXC ATZ) 2005-2009 01
050 88995690 COVER, R/SEAT CUSH (NEUTRAL) (*KIT1) E (702) (EXC ATZ) 2004-2005 01
051 88993665 PAD, R/SEAT CUSH (KICKUP) (*KIT1) E 2004-2009 01
052 88898279 PAD, R/SEAT CUSH (*KIT1) E 2004-2009 01
053 88995275 РАМА, R/SEAT CUSH (*KIT1) E 2005-2009 01
