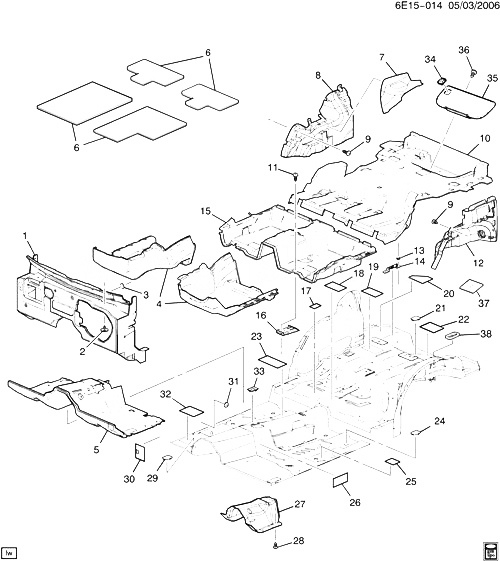

(6E15-014) - 2004-2005 E ПОКРЫТИЕ ПОЛА (EXC (D7E)) CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25762814 BARRIER, DA PNL INTR SND E (LH2) 2004-2005 01
001 25762814 BARRIER, DA PNL INTR SND E (LY7) 2004-2005 01
002 20030401 RETAINER, DA PNL SND BARR (BLACK) E 2004-2005 02
003 10009923 ГАЙКА, БОЛТ RETAINING ПРУЖИНА, M8X1.25, 25 O.D., ZOR (DA PNL SND BARR) 2004-2005 02
004 25766135 ПОКРЫТИЕ, F/FLR PNL (GRAY) E (MV3, MX5, 13I) 2004-2005 01
004 25766136 ПОКРЫТИЕ, F/FLR PNL (GRAY) E (MV3, MX5, 13I) 2004-2005 01
004 25766137 ПОКРЫТИЕ, F/FLR PNL (GRAY) E (M22, M82, 13I) 2004-2005 01
004 25766138 ПОКРЫТИЕ, F/FLR PNL (GRAY) E (M22, M82, 13I) 2004-2005 01
004 25766139 ПОКРЫТИЕ, F/FLR PNL (NEUTRAL) E (MV3, MX5, 70I) 2004-2005 01
004 25766140 ПОКРЫТИЕ, F/FLR PNL (NEUTRAL) E (MV3, MX5, 70I) 2004-2005 01
004 25766141 ПОКРЫТИЕ, F/FLR PNL (NEUTRAL) E (M22, M82, 70I) 2004-2005 01
004 25766142 ПОКРЫТИЕ, F/FLR PNL (NEUTRAL) E (M22, M82, 70I) 2004-2005 01
004 25766143 ПОКРЫТИЕ, F/FLR PNL (EBONY) E (M22, M82, 19I) 2004-2005 01
004 25766144 ПОКРЫТИЕ, F/FLR PNL (EBONY) E (MV3, MX5, 19I) 2004-2005 01
004 25766145 ПОКРЫТИЕ, F/FLR PNL (EBONY) E (MV3, MX5, 19I) 2004-2005 01
004 25766146 ПОКРЫТИЕ, F/FLR PNL (EBONY) E (M22, M82, 19I) 2004-2005 01
005 25733062 BARRIER, F/FLR PNL F/FLR CNSL SND E (MV3, MX5) 2004-2005 01
005 25734207 BARRIER, F/FLR PNL F/FLR CNSL SND E (M22, M82) 2004-2005 01
006 25735478 MAT PKG, FRONT ЗАДНИЙ ПОКРЫТИЕ (GRAY) (3.130 KGS) (NO LOGO) (15.286) EB26 (MV3, MX5, 13I) 2004-2005 01
006 25735479 MAT PKG, FRONT ЗАДНИЙ ПОКРЫТИЕ (GRAY) (2.873 KGS) (NO LOGO) (15.286) EB26 (M22, M82, 13I) 2004-2005 01
006 25738164 MAT PKG, FRONT ЗАДНИЙ ПОКРЫТИЕ (NEUTRAL) (2.873 KGS) (NO LOGO) (15.286) EB26 (M22, M82, 70I) 2004-2005 01
006 25739046 MAT PKG, FRONT ЗАДНИЙ ПОКРЫТИЕ (NEUTRAL) (2.620 KGS) (NO LOGO) (15.286) EB26 (MV3, MX5, 70I) 2004-2005 01
006 25748376 MAT PKG, FRONT ЗАДНИЙ ПОКРЫТИЕ (EBONY) (2.876 KGS) (NO LOGO) (15.286) EB26 (MV3, MX5, 19I) 2004-2005 01
006 25748378 MAT PKG, FRONT ЗАДНИЙ ПОКРЫТИЕ (EBONY) (2.873 KGS) (NO LOGO) EB26 (M22, M82, 19I) 2004-2005 01
007 DEADENER, RR W/H PNL 2004-2005
008 25733073 BARRIER, RR W/H INR PNL SND E 2004-2005 01
009 20030401 RETAINER, RR W/H INR PNL FRT SND BARR (BLACK) (12.804) E 2004-2005 04
010 15944184 ПОКРЫТИЕ, LOAD FLR (INCLS 34-36) (GRAY) E (AM0, 13I) (EXC D7E) 2004-2005 01
010 15944185 ПОКРЫТИЕ, LOAD FLR (INCLS 34-36) (EBONY) E (AM0, 19I) (EXC D7E) 2004-2005 01
010 15944192 ПОКРЫТИЕ, LOAD FLR (INCLS 34-36) (GRAY) E (13I) (EXC AM0, D7E) 2004-2005 01
010 15944193 ПОКРЫТИЕ, LOAD FLR (INCLS 34-36) (EBONY) E (19I) (EXC AM0, D7E) 2004-2005 01
010 25766150 ПОКРЫТИЕ, LOAD FLR (INCLS 34-36) (NEUTRAL) E (AM0, 70I) (EXC D7E) 2004-2005 01
010 25766156 ПОКРЫТИЕ, LOAD FLR (INCLS 34-36) (NEUTRAL) E (70I) (EXC AM0, D7E) 2004-2005 01
011 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (FLR RR AIR OTLT DUCT (PUSH ON)) 2004-2005 02
012 10374313 BARRIER, RR W/H INR PNL SND E 2005-2005 01
013 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/FLR PNL CPT RET BRKT) 2004-2005 04
014 25755415 BRACKET, R/FLR PNL CPT RET E 2004-2005 02
015 15939897 ПОКРЫТИЕ, R/FLR PNL CTR (EBONY) E (19I) 2004-2005 01
015 15944180 ПОКРЫТИЕ, R/FLR PNL CTR (GRAY) E (13I) 2004-2005 01
015 25766128 ПОКРЫТИЕ, R/FLR PNL CTR (NEUTRAL) E (70I) 2004-2005 01
016 25719080 DUCT, FLR RR AIR OTLT (EXT USED ON LH RH ENDS) E 2004-2005 02
017 DEADENER, FLR PNL R/SEAT 2004-2005
018 DEADENER, FLR PNL R/SEAT (CENTER) 2004-2005
019 DEADENER, R/CMPT FLR PNL 2004-2005
020 DEADENER, R/CMPT FLR PNL 2004-2005
021 15908858 PLUG, R/FLR PNL DRN HOLE (38.1 MM) E 2004-2005 03
022 DEADENER, SPA WHL PKT 2004-2005
023 DEADENER, FLR PNL RR 2004-2005
024 15908858 PLUG, F/FLR PNL DRN HOLE (38.1 MM) E 2004-2005 06
025 DEADENER, FLR PNL 2004-2005
026 DEADENER, FLR PNL TUN 2004-2005
027 25784232 INSULATOR, EXH H/SHLD (INCLS 28) (RWD) (12.980) E26 (M22, M82) 2004-2005 01
027 25964067 INSULATOR, EXH H/SHLD (INCLS 28) E (MV3, MX5) 2004-2005 01
028 RETAINER, INS FLR PNL TUN (ЧАСТЬ OF 27) 2004-2005
029 15908858 PLUG, DA HOLE (38.1 MM) (12.980) E 2004-2005 04
030 25722024 BARRIER, DA PNL INTR SND (TWO PIECE) E 2004-2005 02
031 21110669 BARRIER, RKR INR PNL SND (35 MM) (ROUND) (12.179) E26 2004-2005 02
032 DEADENER, FLR PNL FRT 2004-2005
033 11518598 PLUG, 45X65X10.6, FITS 30X50 HOLE IN 1MM THK , STL, PL (FLR PNL DRN HOLE) 2004-2005 02
034 15117947 LATCH, R/CMPT FLR STOW COMPT (ЧАСТЬ OF 10) (BLACK) (16.565) E (EXC D7E) 2004-2005 01
035 COVER, R/CMPT FLR PNL HOLE (ЧАСТЬ OF 10) 2004-2005
036 БОЛТ, R/COMPT STOW TRAY DR HGE (ЧАСТЬ OF 10) 2004-2005
037 25769368 ПОКРЫТИЕ, R/END TR FIN PNL (EBONY) E (19I) 2004-2005 01
037 25769369 ПОКРЫТИЕ, R/END TR FIN PNL (GRAY) E (13I) 2004-2005 01
037 25769370 ПОКРЫТИЕ, R/END TR FIN PNL (NEUTRAL) E (70I) 2004-2005 01
038 25762949 SEAL, КОНДИЦИОНЕР EVPR BLO MDL E 2004-2005 01
