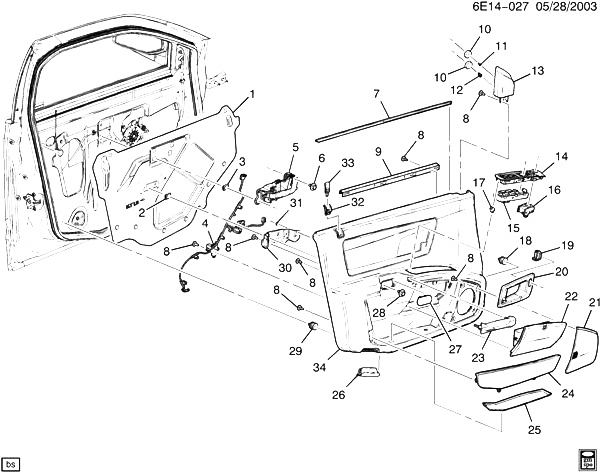

(6E14-027) - 2004-2006 E ОБЛИЦОВКА ПЕРЕДНЕЙ ВОДИТЕЛЬСКОЙ ДВЕРИ CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15218754 DEFLECTOR, FRT S/D WAT E 2004-2006 01
002 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) E 2004-2006 04
003 03907444 ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT S/D I/S HDL) 2004-2006 02
004 25746686 HARNESS, S/D WRG (LHRH) E (A45, B19, DR2, DR4) 2004-2006 01
004 25746688 HARNESS, S/D WRG E (DR5) 2004-2006 01
005 25759729 HANDLE, FRT S/D I/S (HIGH LUSTER) E 2004-2006 01
006 12337828 SCREW, HEX W/FLAT WA, TAP, M6.3X1.81X20, 13.2 O.D., AB PT, STL, PZ0R (FRT S/D I/S HDL) 2004-2006 02
007 CHANNEL, FRT S/D WDO (ЧАСТЬ OF 34) 2004-2006
008 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (FRT S/D) 2004-2006 14
009 25758328 SEALING STRIP, FRT S/D WDO INR E 2004-2006 01
009 25795707 SEALING STRIP, FRT S/D WDO INR E 2004-2006 01
010 GROMMET, FRT S/D TR RET (ЧАСТЬ OF 13) 2004-2006
011 RETAINER, FRT S/D UPR FRT T/PNL (RPR) (ЧАСТЬ OF 13) 2004-2006
012 RETAINER, FRT S/D UPR FRT T/PNL (RPR) (ЧАСТЬ OF 13) 2004-2006
013 89038823 PANEL, FRT S/D UPR FRT TR (INCLS 10-12) E26 2004-2006 01
014 88983972 BEZEL, SI WDO SW (INCLS 17) (EBONY) E (DR5, 19I) (EXC A45, B19) 2004-2006 01
014 88983974 BEZEL, SI WDO SW (INCLS 17) (EBONY) E (A45, B19, DR2, 19I) 2004-2006 01
014 88983975 BEZEL, SI WDO SW (INCLS 17) (EBONY) (MONOTONE W/O WOOD) (W/FOLD MEMORY) (W/PLASTIC HANDLE) E (A45, DR4, 19I) 2005-2006 01
014 89038787 BEZEL, SI WDO SW (INCLS 17) (PEWTER/NEUTRAL) (USED W/WOOD HANDLE) E (A45, DR4, 70I) 2005-2005 01
014 89038788 BEZEL, SI WDO SW (INCLS 17) (PEWTER/GRAY) (USED W/WOOD HANDLE) E (A45, DR4, 13I) 2005-2006 01
014 89038790 BEZEL, SI WDO SW (INCLS 17) (NEUTRAL) (USED W/PLASTIC HANDLE) E (A45, B19, DR2, 70I) 2004-2005 01
014 89038791 BEZEL, SI WDO SW (INCLS 17) (GRAY) E (A45, B19, DR2, 13I) 2004-2006 01
014 89038887 BEZEL, SI WDO SW (INCLS 17) (NEUTRAL) E (DR5, 70I) (EXC A45, B19) 2004-2005 01
015 10363778 SWITCH, SI WDO (MAS) (EBONY) (LOCK/UNLOCK, TRUNK REL, MEMORY, OSRV MIRROR) E (DR2, DR5, 13I, 19I, 70I) 2004-2005 01
015 10363780 SWITCH, SI WDO (MAS) (EBONY) E (DR4, 13I, 19I, 70I) 2004-2005 01
016 25749090 SWITCH, D/SEAT ADJR MEMORY (EBONY) E 2004-2006 01
017 RETAINER, FRT S/D ACSRY SW MT PLT (ЧАСТЬ OF 14) 2004-2006
018 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (FRT S/D T/PNL) 2004-2006 03
019 25752613 SWITCH, DR LK (EBONY) E 2004-2006 04
020 25752963 BEZEL, FRT S/D I/S HDL (EBONY) E 2004-2005 01
021 89038827 GRILLE, RDO FRT SPKR (NEUTRAL) E (70I) 2004-2005 01
021 89038828 GRILLE, RDO FRT SPKR (GRAY) E (13I) 2004-2006 01
021 89038829 GRILLE, RDO FRT SPKR (EBONY) E (19I) 2004-2006 01
022 89038836 COMPARTMENT, FRT S/D (NEUTRAL) E (70I) 2004-2005 01
022 89038837 COMPARTMENT, FRT S/D (PEWTER) E (13I) 2004-2006 01
022 89038838 COMPARTMENT, FRT S/D (EBONY) E (19I) 2004-2006 01
023 88983942 HANDLE, FRT S/D PULL (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) E (19I) (EXC B19) 2004-2006 02
023 89038778 HANDLE, FRT S/D PULL (NEUTRAL) (BURL WALNUT WOOD HANDLE) E (B19, 70I) 2004-2005 02
023 89038779 HANDLE, FRT S/D PULL (GRAY) (BURL WALNUT WOOD HANDLE) E (B19, 13I) 2004-2006 02
023 89038781 HANDLE, FRT S/D PULL (NEUTRAL) (КРАСКАED) E (70I) (EXC B19) 2004-2005 02
023 89038782 HANDLE, FRT S/D PULL (GRAY) (КРАСКАED) E (13I) (EXC B19) 2004-2006 02
023 89040111 HANDLE, FRT S/D PULL (EBONY) (BURL WALNUT WOOD HANDLE) E (B19, 19I) 2004-2006 02
024 89038831 POCKET, FRT S/D MAP (NEUTRAL) E (70I) 2004-2005 01
024 89038832 POCKET, FRT S/D MAP (GRAY) E (13I) 2004-2006 01
024 89038833 POCKET, FRT S/D MAP (EBONY) E (19I) 2004-2006 01
025 89038834 LINER, FRT S/D PULL CUP EB26 2004-2006 01
026 12482519 ЛАМПА, CTSY (IN DOOR) E (A45, DR4) (EXC B19) 2005-2006 01
027 25727743 COVER, FRT S/D T/PNL (GRAY) E (13I) 2004-2006 02
027 25727745 COVER, FRT S/D T/PNL (NEUTRAL) E (70I) 2004-2005 02
027 25748814 COVER, FRT S/D T/PNL (EBONY) E (19I) 2004-2006 02
028 БОЛТ, FRT S/D PULL HDL (ЧАСТЬ OF 34) 2004-2006
029 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (FRT S/D T/PNL) 2004-2006 05
030 88952741 BRACKET, FRT S/D PULL HDL E 2004-2006 01
031 ГАЙКА, FRT S/D I/S HDL (ЧАСТЬ OF 34) 2004-2006
032 88952714 BEZEL, FRT S/D LKG ROD P/BUT (GRAY) E (13I) 2004-2006 02
032 88952716 BEZEL, FRT S/D LKG ROD P/BUT (NEUTRAL) E (70I) 2004-2005 02
032 88983938 BEZEL, FRT S/D LKG ROD P/BUT (EBONY) (SATIN CHROME PULL CAP) E (19I) 2004-2006 02
033 25751121 KNOB, FRT S/D LKG ROD (GRAY) E (13I) 2004-2006 02
033 25751122 KNOB, FRT S/D LKG ROD (NEUTRAL) E (70I) 2004-2005 02
033 25751335 KNOB, FRT S/D LKG ROD (EBONY) E (19I) 2004-2006 02
034 89042150 TRIM, FRT S/D (INCLS 7, 28, 31) (NEUTRAL) EB26 (70I) 2004-2005 01
034 89042151 TRIM, FRT S/D (INCLS 7, 28, 31) (GRAY) EB26 (13I) 2004-2006 01
034 89042152 TRIM, FRT S/D (INCLS 7, 28, 31) (EBONY) EB26 (A45, B19, DR2, DR4, 19I) 2004-2006 01
034 89042152 TRIM, FRT S/D (INCLS 7, 28, 31) (EBONY) EB26 (DR5, 19I) (EXC A45, B19) 2004-2006 01
