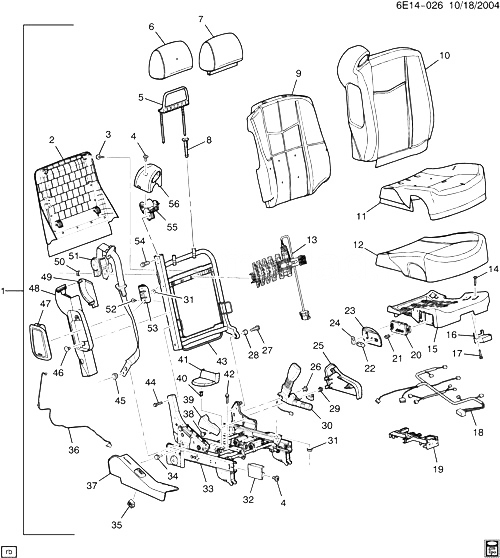

(6E14-026) - 2004-2006 EB СИДЕНЬЕ ПАССАЖИРА (POWER ADJUSTER AH8) CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, PASS (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-56) 2004-2006
002 88895405 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (NEUTRAL) (W/MESH MAP PKT) E (70I) 2004-2005 01
002 88895407 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (GRAY) (W/MESH MAP PKT) EB (13I) 2004-2006 01
002 88992614 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (EBONY) (W/MESH MAP PKT) EB (19I) 2004-2006 01
003 10421018 RETAINER, P/SEAT BK CUSH CVR (ЧАСТЬ OF 2) (NATURAL) (4MM HOLE, 33MM) (15.100) E 2004-2006 03
004 88897272 БОЛТ, P/SEAT (TOWER COVER) E 2004-2006 06
005 88897670 SUPPORT, P/SEAT H/RST E 2004-2006 01
006 88898400 PAD, P/SEAT H/RST E 2004-2006 01
007 88897970 COVER, P/SEAT H/RST (NEUTRAL) E (702) 2004-2005 01
007 88897971 COVER, P/SEAT H/RST (GRAY) E (132) 2004-2006 01
007 88992582 COVER, P/SEAT H/RST (EBONY) E (192) 2004-2006 01
008 19122625 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) E (19I) 2004-2006 01
008 19122627 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) E (19I) 2004-2006 01
008 88994276 GUIDE, P/SEAT H/RST (NEUTRAL) (W/BUTTON) E (70I) 2004-2005 01
008 88994279 GUIDE, P/SEAT H/RST (NEUTRAL) (W/O BUTTON) E (70I) 2004-2005 01
008 88994730 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) E (13I) 2004-2006 01
008 88994731 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) E (13I) 2004-2006 01
009 88994771 PAD, P/SEAT BK CUSH E (AH8) 2004-2006 01
010 88994454 COVER, P/SEAT BK CUSH (NEUTRAL) E (AQ9, 702) (EXC KA1) 2004-2005 01
010 88994455 COVER, P/SEAT BK CUSH (GRAY) EB (AQ9, 132) (EXC KA1) 2004-2006 01
010 88994456 COVER, P/SEAT BK CUSH (EBONY) EB (AQ9, 192) (EXC KA1) 2004-2006 01
010 88994462 COVER, P/SEAT BK CUSH (NEUTRAL) E (AQ9, KA1, 702) 2004-2005 01
010 88994463 COVER, P/SEAT BK CUSH (GRAY) EB (AQ9, KA1, 132) 2004-2006 01
010 88994464 COVER, P/SEAT BK CUSH (EBONY) (W/2 TERMINALS) EB (AQ9, KA1, 192) 2004-2006 01
011 88992579 COVER, P/SEAT CUSH (EBONY) EB (AH8, AL2, AQ9, 192) (EXC KA1) 2004-2006 01
011 88994478 COVER, P/SEAT CUSH (NEUTRAL) EB (AH8, AL2, AQ9, 702) (EXC KA1) 2004-2005 01
011 88994479 COVER, P/SEAT CUSH (GRAY) EB (AH8, AQ9, 132) (EXC KA1) 2004-2006 01
011 88994494 COVER, P/SEAT CUSH (NEUTRAL) EB (AH8, AL2, AQ9, KA1, 702) 2004-2005 01
011 88994495 COVER, P/SEAT CUSH (GRAY) EB (AH8, AQ9, KA1, 132) 2004-2006 01
011 88994496 COVER, P/SEAT CUSH (EBONY) EB (AH8, AQ9, KA1, 192) 2004-2006 01
012 88898333 PAD, P/SEAT CUSH E 2004-2006 01
013 88994089 LUMBAR SUB, P/SEAT (W/LUMBAR MOTOR) EB (AL2) 2004-2006 01
014 БОЛТ, P/SEAT CUSH FRM (ЧАСТЬ OF 15) 2004-2006
015 88895458 РАМА, P/SEAT CUSH (INCLS 14) (PWR) E (AH8) 2004-2006 01
016 10399538 МОДУЛЬ, P/SEAT HTR CONT E 2004-2006 01
017 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (P/SEAT) (8.977) 2004-2006 02
018 88897626 HARNESS, P/SEAT CONT MDL WRG (INCLS 19) E (AH8, AQ9, IL2) (EXC AX4, KA1, MTF) 2004-2005 01
018 88994093 HARNESS, P/SEAT CONT MDL WRG (INCLS 19) E (AH8, AL2, AQ9, IL2) (EXC AX4, KA1, MTF) 2004-2006 01
018 88994094 HARNESS, P/SEAT CONT MDL WRG (INCLS 19) E26 (AH8, AL2, AQ9, IL2, KA1) 2004-2006 01
019 SHIELD, WRG HARNESS (ЧАСТЬ OF 18) 2004-2006
020 12450264 SWITCH, P/SEAT RECL (8-WAY) EB (AH8) 2004-2006 01
021 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 23) 2004-2006
022 25671087 KNOB, P/SEAT ADJR SW (NEUTRAL) E (70I) 2004-2005 01
022 25721217 KNOB, P/SEAT ADJR SW (GRAY) E (13I) 2004-2006 01
022 25749092 KNOB, P/SEAT ADJR SW (EBONY) E (19I) 2004-2006 01
023 88895397 BEZEL, P/SEAT ADJR SW (INCLS 21) (NEUTRAL) E (AH8, 70I) 2004-2005 01
023 88895399 BEZEL, P/SEAT ADJR SW (INCLS 21) (GRAY) EB (AH8, 13I) 2004-2006 01
023 88992624 BEZEL, P/SEAT ADJR SW (INCLS 21) (EBONY) EB (AH8, 19I) 2004-2006 01
024 25671097 KNOB, P/SEAT RECL (NEUTRAL) E (70I) 2004-2005 01
024 25721215 KNOB, P/SEAT RECL (GRAY) E (13I) 2004-2006 01
024 25749094 KNOB, P/SEAT RECL (EBONY) EB (19I) 2004-2006 01
025 88895369 COVER, P/SEAT RECL LWR FIN (INCLS 29) (NEUTRAL) (INR) E (70I) 2004-2005 01
025 88895371 COVER, P/SEAT RECL LWR FIN (INCLS 29) (GRAY) (INR) E (13I) 2004-2006 01
025 88992616 COVER, P/SEAT RECL LWR FIN (INCLS 29) (EBONY) (INR) E (19I) 2004-2006 01
026 88952627 ГАЙКА, P/SEAT BELT (BKL SI) (PREРОЛИК НАТЯЖИТЕЛЬ) (TUBE NUT) (11.556) E (AQ9, AX4) 2004-2006 01
027 88952646 БОЛТ, P/SEAT BK CUSH (INCLS 28) (11.628) E 2004-2006 01
028 BUSHING, P/SEAT BK CUSH PIV (ЧАСТЬ OF 27) 2004-2006
029 21303269 CLIP, NARROW POINT - 0.63 SPR STL SAE 1050, GM 4345M 6D 96/48 YELLOW CR (ЧАСТЬ OF 25) 2004-2006 02
030 BELT, P/SEAT (BKL SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2006
031 11517068 ГАЙКА, INFL RST P/SEAT SI MDL (M6X1X3, 14.2 O.D.) (8.917) EB 2004-2006 04
032 88898352 COVER, P/SEAT ADJR FIN (NEUTRAL) (FRT) E (70I) 2004-2005 01
032 88898402 COVER, P/SEAT ADJR FIN (GRAY) (FRT) E (13I) 2004-2006 01
032 88993349 COVER, P/SEAT ADJR FIN (EBONY) (FRT) E (19I) 2004-2006 01
033 88995058 ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PWR) E (AH8) 2004-2006 01
034 10285935 RETAINER, P/SEAT RECL (ЧАСТЬ OF 37) (WHITE) (4MM HOLE, 25.5MM LONG) (MALE PUSH-IN) (14.630) E 2004-2005 03
035 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) E (AL2, 19I) 2004-2006 01
035 25772912 SWITCH, P/SEAT LUMBAR CONT (NEUTRAL) E (AL2, 70I) 2004-2006 01
035 25772913 SWITCH, P/SEAT LUMBAR CONT (GRAY) E (AL2, 13I) 2004-2006 01
036 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) E (AQ9) 2004-2006 01
037 88994767 COVER, P/SEAT RECL LWR FIN (INCLS 34) (NEUTRAL) (OTR) (W/LUMBAR SWITCH BEZEL) E (AH8, AL2, 70I) 2004-2005 01
037 88994768 COVER, P/SEAT RECL LWR FIN (INCLS 34) (EBONY) (OTR) (W/LUMBAR SWITCH BEZEL) EB (AH8, AL2, 19I) 2004-2006 01
037 88994769 COVER, P/SEAT RECL LWR FIN (INCLS 34) (GRAY) (OTR) (W/LUMBAR SWITCH BEZEL) EB (AH8, AL2, 13I) 2004-2006 01
038 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT SHLDR BELT) 2004-2006 01
039 88992618 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) EB (AQ9, 19I) 2004-2006 01
040 RETAINER, P/SEAT INR ADJR RR FIN CVR (ЧАСТЬ OF 41) 2004-2006
041 88898393 COVER, P/SEAT ADJR FIN (INCLS 40) (NEUTRAL) (RR) E (70I) 2004-2005 01
041 88898395 COVER, P/SEAT ADJR FIN (INCLS 40) (GRAY) (RR) E (13I) 2004-2006 01
041 88993350 COVER, P/SEAT ADJR FIN (INCLS 40) (EBONY) (RR) E (19I) 2004-2006 01
042 11609257 БОЛТ, P/SEAT ADJR (W/BELT) (M12X1.75X34) (8.907) E 2004-2006 02
043 88849035 РАМА, P/SEAT BK CUSH (W/SUSPENSION SUPPORT) EB (EXC AL2) 2004-2006 01
043 88994109 РАМА, P/SEAT BK CUSH (W/LUMBAR КРЕПЛЕНИЕ) EB (AL2) 2004-2006 01
044 88897643 БОЛТ, P/SEAT RECL (RECL TO FRM) E 2004-2006 02
046 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK CUSH) 2004-2006 07
047 25760561 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) E (13I) 2004-2005 01
047 25760562 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) EB (19I) 2004-2006 01
047 25760563 МОДУЛЬ, P/SEAT SI INFL RST (NEUTRAL) E (70I) 2004-2005 01
048 88897617 PANEL, P/SEAT BK CUSH SI BOLS EB 2004-2006 01
049 88897619 BEZEL, P/SEAT SHLDR BELT OPG EB 2004-2006 01
051 BELT, P/SEAT (RETR SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2006
052 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (P/SEAT SI INFL RST MDL) 2004-2006 02
053 88949040 BRACKET, INFL RST P/SEAT SI MDL (11.561) E 2004-2006 01
054 88897644 БОЛТ, P/SEAT ADJR (ADJR TO FRM) E 2004-2006 02
055 88897641 ROLLER, P/SEAT SHLDR BELT EB 2004-2006 01
056 88897615 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) EB 2004-2006 01
