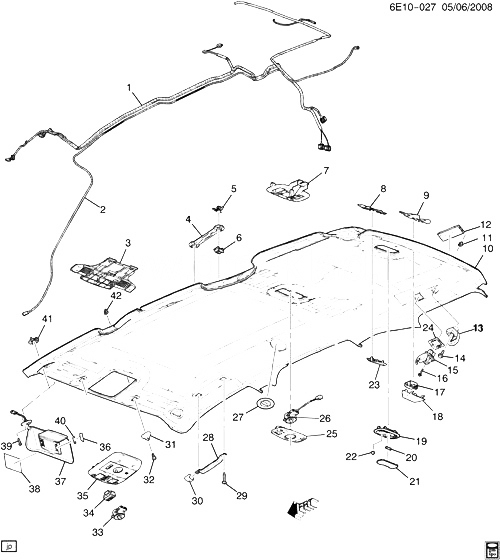

(6E10-027) - 2004-2008 E КРЫША HEADLINER (ИСКЛЮЧАЯ ЛЮК CF5,C3B) CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, DM RDG LP S/S ILLUM MIR WRG (ЧАСТЬ OF 10) 2004-2008
002 15218953 HOSE, WSWA SOLV CNTNR (RR) (ACDelco #15218953) E 2004-2009 01
003 19121463 RETAINER, RF CNSL (PUSH IN) (SUPT BK PLATE FOR VEHICLES WITH WITHOUT INTRUSION) (FRT CNSL SUPT) (SUPT BK PLT FOR VEHS W/ W/O INTRUSION) E 2004-2005 01
004 88952102 RETAINER, ASST HDL BRKT (257X56X31) E 2004-2009 02
005 25725191 CLIP, HDLNG T/PNL (ЧАСТЬ OF 28) (GREEN) (18X12.5, SAE 1050STL) (CLIP TO HOLD M4.2X1.41 SCREW, PNL RING 0.94-3.5) E 2004-2006 04
006 88952116 BRACKET, ASST HDL (HDLNR SUPT BRKT ASST HNDL) E 2004-2009 04
007 88956192 RETAINER, RF CNSL (PUSH IN) (MIDDLE CNSL SUPPORT) E (EXC CF5, C3B) 2004-2006 01
008 88956208 SUPPORT, L/GATE TR E 2004-2009 01
008 89022467 SUPPORT, L/GATE TR E 2004-2009 01
009 88956207 RETAINER, RF CNSL (PUSH IN) (SUPPORT TRIM BEZEL) E 2004-2006 01
010 89026135 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (UA6, U2R, U2S, U57, U66, 13I, 19I) (EXC AU5, AU8, CF5, C3B, C57, UG1) 2005-2005 01
010 89026136 PANEL, HDLNG TR (INCLS 1, 35) (NEUTRAL) E (UA6, U2R, U2S, U57, U66, 70I) (EXC AU5, AU8, CF5, C3B, C57, UG1) 2005-2005 01
010 89026139 PANEL, HDLNG TR (INCLS 1, 35) (NEUTRAL) E (AU5, C57, UA6, U2X, U57, 70I) (EXC CF5, C3B) 2005-2005 01
010 89026139 PANEL, HDLNG TR (INCLS 1, 35) (NEUTRAL) E (C57, UA6, U2R, U57, U66, 70I) (EXC AU5, AU8, CF5, C3B, UG1) 2005-2005 01
010 89026139 PANEL, HDLNG TR (INCLS 1, 35) (NEUTRAL) E (C57, UA6, U2S, U57, 70I) (EXC AU8, CF5, C3B) 2005-2005 01
010 89026139 PANEL, HDLNG TR (INCLS 1, 35) (NEUTRAL) E (C57, UA6, U2S, U66, 70I) (EXC AU5, AU8, CF5, C3B) 2005-2005 01
010 89026139 PANEL, HDLNG TR (INCLS 1, 35) (NEUTRAL) E (C57, UA6, U2V, U57, 70I) (EXC AU5, AU8, CF5, C3B) 2005-2005 01
010 89026139 PANEL, HDLNG TR (INCLS 1, 35) (NEUTRAL) E (C57, UA6, U2Y, U57, 70I) (EXC AU5, AU8, CF5, C3B, UG1) 2005-2005 01
010 89026250 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (AU8, C57, UA2, U2S, U2Y, U57, 13I, 19I) (EXC CF5, C3B) 2005-2006 01
010 89026251 PANEL, HDLNG TR (INCLS 1, 35) (NEUTRAL) E (AU8, C57, UA2, U2S, U2Y, U57, 70I) (EXC CF5, C3B) 2005-2005 01
010 89026722 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (C57, UA6, U2R, U57, 13I, 19I) (EXC AU5, AU8, CF5, C3B, UG1) 2004-2005 01
010 89026722 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (C57, UA6, U2R, U66, 13I, 19I) (EXC AU5, AU8, CF5, C3B, UG1) 2004-2005 01
010 89026722 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (C57, UA6, U2S, U57, 13I, 19I) (EXC AU8, CF5, C3B) 2004-2005 01
010 89026722 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (C57, UA6, U2S, U66, 13I, 19I) (EXC AU5, AU8, CF5, C3B) 2004-2005 01
010 89026722 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (AU5, C57, UA6, U2X, U57, 13I, 19I) (EXC CF5, C3B) 2004-2006 01
010 89026722 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (C57, UA6, U2V, U57, 13I, 19I) (EXC AU5, AU8, CF5, C3B) 2004-2006 01
010 89026722 PANEL, HDLNG TR (INCLS 1, 35) (GRAY) E (C57, UA6, U2Y, U57, 13I, 19I) (EXC AU5, AU8, CF5, C3B, UG1) 2005-2005 01
011 22612024 CLIP, COAT HOOK (ЧАСТЬ OF 13) (55MM LONG) (PUSH-IN) (15.394) E 2004-2009 04
012 19115770 МОДУЛЬ, RDO ANT (ACDelco #19115770) E (AU8) (EXPORT) 2005-2005 01
012 19115773 RECEIVER, R/CON DR LK THEFT DTRNT (9.645) (ACDelco #19115773) E (AU5) (EXPORT) 2005-2005 01
012 19115773 МОДУЛЬ, RDO ANT (ACDelco #19115773) E (AU5) (EXPORT) 2005-2005 01
012 19115773 RECEIVER, R/CON DR LK THEFT DTRNT (9.645) (ACDelco #19115773) E (AU5) (EXPORT) 2005-2005 01
012 25757629 МОДУЛЬ, RDO ANT (ACDelco #25757629) E (AU8) 2004-2006 01
012 25757631 МОДУЛЬ, RDO ANT (ACDelco #25757631) E26 (EXC AU5, AU8) 2004-2006 01
012 25773482 МОДУЛЬ, RDO ANT (ACDelco #25773482) E26 (AU5) (EXPORT) 2005-2006 01
012 89047510 RECEIVER, R/CON DR LK THEFT DTRNT (10.485) E26 (EXC AU5, AU8) 2004-2005 01
012 89047510 RECEIVER, R/CON DR LK THEFT DTRNT E26 (EXC AU5, AU8) 2004-2005 01
013 88956198 HOOK, COAT (INCLS 11, 14) (GRAY) E (13I, 19I) 2004-2009 02
013 88956199 HOOK, COAT (INCLS 11, 14) (NEUTRAL) E (70I) 2004-2005 02
014 11516633 SCREW, ROUND LARGE CROWN HD 4.2X1.4X35 11.3OD C/R TAP 6136M P-PT. (ЧАСТЬ OF 11) 2004-2009 02
015 88956201 BEZEL, RF CARGO NET (GRAY) (POA HDLNG TR MOD) E (13I, 19I) 2004-2009 01
015 88956202 BEZEL, RF CARGO NET (NEUTRAL) E (70I) 2004-2005 01
015 88956204 BEZEL, RF CARGO NET (GRAY) (POA HDLNG TR MOD) E (13I, 19I) 2004-2009 01
015 88956205 BEZEL, RF CARGO NET (NEUTRAL) E (70I) 2004-2005 01
016 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (CARGO TIE DN HOOK) (8.907) 2004-2009 04
017 15766504 TELLTALE, INFO CTR (ACDelco #15766504) E 2004-2009 01
018 88956226 BEZEL, COMMUNICATION CTR CALL SW (GRAY) (RPA TRIM BEZEL) E 2004-2008 01
018 88956227 BEZEL, COMMUNICATION CTR CALL SW (NEUTRAL) E (70I) 2004-2005 01
019 15032587 ШЛАНГИ, DM RDG LP (INCLS 20) (16.494) E 2004-2009 01
020 12450074 BULB, TRADE #578 (ЧАСТЬ OF 19) (ACDelco #578) 2004-2009 01
021 15032588 LENS, DM RDG LP (3 BULB STYLE) (16.495) E 2004-2009 01
022 15166059 PUSHBUTTON, RDG LP SW (EBONY) (16.494) E 2004-2009 02
023 19177386 TRIM, L/GATE (GRAY) E26 (13I, 19I) 2004-2009 01
023 19177387 TRIM, L/GATE (NEUTRAL) E26 (70I) 2004-2005 01
023 19177390 TRIM, L/GATE (GRAY) E26 (13I, 19I) 2004-2009 01
023 19177391 TRIM, L/GATE (NEUTRAL) E26 (70I) 2005-2005 01
024 88956206 PLATE, RF CARGO NET BZL BKG (RETAINER FOR CARGO NET BEZEL) (R/H L/H) (12.815) E 2004-2008 02
025 88956195 BEZEL, RF CNSL ACSRY SW (MIDDLE OVERHEAD КОНСОЛЬ) (GRAY) (MIDDLE OH CNSL W/HVAC) E (13I, 19I) 2004-2009 01
025 88956196 BEZEL, RF CNSL ACSRY SW (MIDDLE OVERHEAD КОНСОЛЬ) (NEUTRAL) (W/ HVAC) E (C57, 70I) 2004-2005 01
026 21996233 CONTROL, AUX BLO (MID OVERHEAD КОНСОЛЬ) (USE ON VEHICLES WITH SNOWFLAKE GRAPHIC SYMBOL) (ACDelco #15-73085) E (C57) 2004-2009 01
027 88956165 DUCT, RF AUX AIR OTLT (GRAY) E (13I, 19I) 2004-2009 02
027 88956166 DUCT, RF AUX AIR OTLT (NEUTRAL) E (70I) 2004-2005 02
028 25770386 HANDLE, ASST (INCLS 5, 29) (GRAY) (2ND SEAT B/PLR) E (13I, 19I) 2004-2009 01
028 25770387 HANDLE, ASST (INCLS 5, 29) (NEUTRAL) (2ND SEAT B/PLR) E (70I) 2004-2005 01
028 25770389 HANDLE, ASST (INCLS 5, 29) (GRAY) (2ND SEAT B/PLR) E (13I, 19I) 2004-2009 01
028 25770390 HANDLE, ASST (INCLS 5, 29) (NEUTRAL) (2ND SEAT B/PLR) E (70I) 2004-2005 01
029 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 28) 2004-2009 04
030 88951937 ESCUTCHEON, R/RL FRT ASST STRP (GRAY) (END CAP-ASSIST HANDLE) E (13I, 19I) 2004-2008 04
030 88951938 ESCUTCHEON, R/RL FRT ASST STRP (NEUTRAL) E (70I) 2004-2005 04
031 88952150 RETAINER, S/S (INCLS 32, 42) (GRAY) E (13I, 19I) 2004-2008 02
031 88952151 RETAINER, S/S (INCLS 32, 42) (NEUTRAL) E (70I) 2004-2005 02
032 11515517 SCREW, PAN HD W/FLAT WA, C/R, M4.2X1.41X35, 8 OD, 6010M, NZ (ЧАСТЬ OF 31) 2004-2009 02
033 21996232 CONTROL, AUX BLO (FRT OVHD КОНСОЛЬ) (ACDelco #15-73084) E (C57) 2004-2009 01
034 25749089 SWITCH, R/WDO WPR WA (EBONY) E 2004-2009 01
035 19121833 BEZEL, RF CNSL ACSRY SW (ЧАСТЬ OF 10) (GRAY) (STD BEZEL/ INTRUSION SENSOR HOLE) E26 (13I, 19I) (EXC CF5) 2005-2006 01
035 19149350 BEZEL, RF CNSL ACSRY SW (ЧАСТЬ OF 10) (GRAY) (FRT OHC W/O HVAC, INCLS MECH CLIPS DIMMER SWITCH W/DEFLECTOR) (16.745) E (13I, 19I) 2004-2005 01
035 19149351 BEZEL, RF CNSL ACSRY SW (ЧАСТЬ OF 10) (NEUTRAL) (FRT OHC W/O HVAC, INCLS MECH CLIPS DIMMER SWITCH W/DEFLECTOR) (16.745) E (70I) 2004-2005 01
035 19149354 BEZEL, RF CNSL ACSRY SW (ЧАСТЬ OF 10) (GRAY) (FRT OHC W/HVAC, INCLS MECH CLIPS DIMMER SWITCH W/DEFLECTOR) E (13I, 19I) 2004-2005 01
035 19149355 BEZEL, RF CNSL ACSRY SW (ЧАСТЬ OF 10) (NEUTRAL) (FRT OHC W/HVAC, INCLS MECH CLIPS DIMMER SWITCH W/DEFLECTOR) E (70I) (EXC CF5) 2004-2005 01
036 88952168 LENS, S/S ILLUM MIR LP (ЧАСТЬ OF 37) (LESS BULB) E 2004-2009 02
037 25756063 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 36, 38-41) (GRAY) (RH VISOR WITHOUT UGDO) E (13I, 19I) 2004-2009 01
037 25756064 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 36, 38-41) (NEUTRAL) (RH VISOR WITHOUT UGDO) E (70I) 2004-2005 01
037 25756066 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 36, 38-41) (GRAY) (LH VISOR W/O UGDO) EB (13I, 19I) (EXC UG1) 2004-2009 01
037 25756067 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 36, 38-41) (NEUTRAL) (LH VISOR W/O UGDO) E (70I) (EXC UG1) 2004-2005 01
037 25756069 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 36, 38-41) (GRAY) (LH VISOR W/UGDO) E (UG1, 13I, 19I) 2004-2006 01
037 25756070 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 36, 38-41) (NEUTRAL) (LH VISOR W/UGDO) E (70I, UG1) 2004-2005 01
038 15006352 LABEL, INFL RST SYS WRNG (ЧАСТЬ OF 37) (ENGLISH/FRENCH) E 2004-2009 01
038 15006352 LABEL, INFL RST SYS WRNG (ЧАСТЬ OF 37) (ENGLISH/FRENCH) E 2004-2009 02
038 15116388 LABEL, INFL RST SYS WRNG (ЧАСТЬ OF 37) (ENGLISH/SPANISH) E 2004-2009 02
038 15766601 LABEL, INFL RST SYS WRNG (ЧАСТЬ OF 37) (ENGLISH/ARABIC) E (VBX) (EXPORT) 2005-2006 02
039 11516638 SCREW - TAP RND SM WASH HD TY, M4.2X1.4X25, 19.2THD, 8.5 OD (ЧАСТЬ OF 37) (8.906) 2004-2009 02
040 25759050 BULB-RDG LP (ЧАСТЬ OF 37) (ACDelco #25759050) 2004-2009 02
041 21031302 REINFORCEMENT, S/S SUPT (ЧАСТЬ OF 37) (ANCHOR PLT/SPIDER CLIP) E 2004-2009 AR
042 22612024 CLIP, S/S SUPT (ЧАСТЬ OF 31) (55MM LONG) (PUSH-IN) (15.394) E 2004-2008 02
