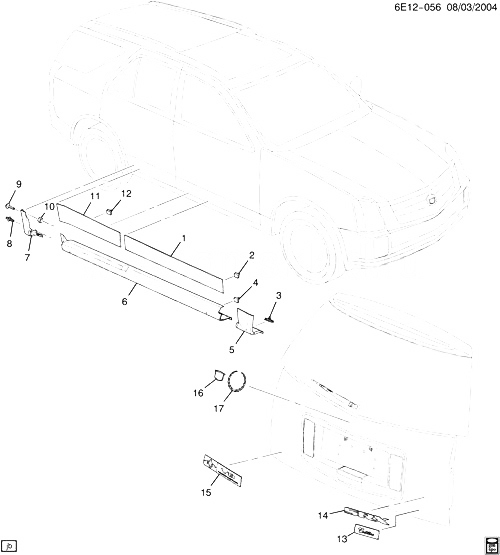

(6E12-056) - 2005 E МОЛДИНГИ-BELOW BELT CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88980893 MOLDING, FRT S/D LWR (INCLS 2) (КРАСКА TO MATCH) E26 2005-2005 01
001 88980895 MOLDING, FRT S/D LWR (INCLS 2) (КРАСКА TO MATCH) E26 2005-2005 01
002 25724529 RETAINER, FRT S/D LWR MLDG (ЧАСТЬ OF 1) (NATURAL) (20.0MM X 13.0MM) (EXCLUDES SEAL) (8.309) E 2005-2005 16
003 25648693 RETAINER, RKR PNL MLDG LWR (ЧАСТЬ OF 5, 6) (GRAY) E 2005-2005 10
004 11561820 CLIP, RKR PNL MLDG (ЧАСТЬ OF 5, 6) (51MM X 22.5MM) E26 2005-2005 02
004 25724529 CLIP, RKR PNL MLDG (ЧАСТЬ OF 5, 6) (NATURAL) (20.0MM X 13.0MM) (EXCLUDES SEAL) (2LH/2RH) E 2005-2005 04
005 88980898 MOLDING, RKR PNL FRT (INCLS 3, 4) (PRIMED) (КРАСКА TO MATCH) E 2005-2005 01
005 88980899 MOLDING, RKR PNL FRT (INCLS 3, 4) (PRIMED) (КРАСКА TO MATCH) E 2005-2005 01
006 88980742 MOLDING, RKR PNL (INCLS 3, 4) (КРАСКА TO MATCH) E 2005-2005 01
006 88980743 MOLDING, RKR PNL (INCLS 3, 4) (КРАСКА TO MATCH) E 2005-2005 01
007 88980507 MOLDING, RKR PNL RR (PRIMED) (КРАСКА TO MATCH) E 2005-2005 01
007 88980508 MOLDING, RKR PNL RR (PRIMED) (КРАСКА TO MATCH) E 2005-2005 01
008 11518017 RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (RR W/H PNL LNR) 2005-2005 12
009 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR W/H PNL LNR) 2005-2005 06
010 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RKR PNL RR MLDG) 2005-2005 02
011 88980488 MOLDING, RR S/D LWR (INCLS 12) (КРАСКА TO MATCH) E26 2005-2005 01
011 88980489 MOLDING, RR S/D LWR (INCLS 12) (КРАСКА TO MATCH) E26 2005-2005 01
012 25724529 RETAINER, RR S/D LWR MLDG (ЧАСТЬ OF 11) (NATURAL) (20.0MM X 13.0MM) (EXCLUDES SEAL) (8.309) E 2005-2005 08
013 10387855 EMBLEM, L/GATE (CHROME) (CADILLAC) (FOR EXPORT ONLY) E (LH2, B57) (EXPORT) 2005-2005 01
013 10387855 EMBLEM, L/GATE (CHROME) (CADILLAC) (FOR EXPORT ONLY) E (LY7, B57) (EXPORT) 2005-2005 01
014 10363600 PLATE, L/GATE NA (CHROME) (SRX) E 2005-2005 01
015 10334040 PLATE, L/GATE NA (V-8 NORTHSTAR) E 2005-2005 01
016 25761283 EMBLEM, L/GATE (CHROME) (CREST) E 2005-2005 01
017 25761282 EMBLEM, L/GATE (CHROME) (WREATH) E 2005-2005 01
