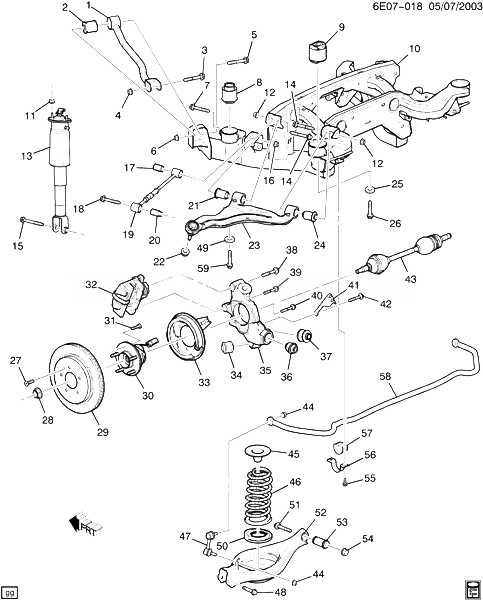

(6E07-018) - 2004-2009 E ЗАДНЯЯ ПОДВЕСКА CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25716358 ARM, RR SUSP TRAILING (INCLS 2) E26 2004-2009 01
001 25721399 ARM, RR SUSP TRAILING (INCLS 2) E26 2004-2009 01
002 BUSHING, RR SUSP TRAILING ARM (ЧАСТЬ OF 1) 2004-2009
003 11519149 БОЛТ, RR SUSP TRAILING ARM (ЗАДНИЙ) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) E (FE1, FE3) 2004-2009 02
004 11516382 ГАЙКА, RR SUSP TRAILING ARM (ЗАДНИЙ) (M14X2X15) (W/O J CLIP RETAINER) (8.917) E (FE1, FE3) 2004-2009 02
005 11519149 БОЛТ, RR SUSP TRAILING ARM (ЗАДНИЙ) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) E26 (FE1, FE3) 2004-2009 02
006 11516382 ГАЙКА, RR SUSP TRAILING ARM (ЗАДНИЙ) (M14X2X15) (W/O J CLIP RETAINER) (8.917) E (FE1, FE3) 2004-2009 02
007 11519078 БОЛТ, RR SUSP ADJ LINK (OUTER) (M14X2X110) (W/CON WASHER) (5.506) E26 2004-2009 02
008 MOUNT, RR SUSP SUPT (ЧАСТЬ OF 10) 2004-2009
009 MOUNT, RR SUSP SUPT (ЧАСТЬ OF 10) 2004-2009
010 25821862 SUPPORT, RR SUSP (INCLS 8, 9) E (FE1, FE3) (EXC TY6) 2005-2007 01
010 25821863 SUPPORT, RR SUSP (INCLS 8, 9) E26 (FE1, FE3, TY6) (EXPORT) 2005-2007 01
011 11516076 ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (RR S/ABS) 2004-2009 01
012 11516382 ГАЙКА, RR SUSP UPR CONT ARM (INNER) (M14X2X15) (W/O J CLIP RETAINER) (8.917) E (FE1, FE3) 2004-2009 04
013 15145221 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #580-337) E (FE3, F55) (EXC TY6) 2005-2005 02
013 15210815 АМОРТИЗАТОР, RR SHK (W/UPR MT) EB (FE3, F55, TY6) (EXPORT) 2005-2005 02
013 21992495 АМОРТИЗАТОР, RR SHK (W/UPR MT) E (FE1) 2004-2006 02
014 11519150 БОЛТ, RR SUSP UPR CONT ARM (FRT) (M14X2X100) E26 (FE1, FE3) 2004-2008 04
014 11588419 БОЛТ, RR SUSP UPR CONT ARM (FRT INNER) (SILVER) (M14X2X105, 10.9, 38THD) (REDUCED BODY) (8.900) E26 (FE1, FE3, TY6) (EXPORT) 2005-2009 02
015 11517901 БОЛТ-HEX, M14X2X90, 34 THD, 28 OD, 10.9, 7114, MACH, HDR-PT (RR S/ABS) 2004-2009 02
016 11516382 ГАЙКА, RR SUSP ADJ LINK (INNER) (M14X2X15) (W/O J CLIP RETAINER) (8.917) E (FE1, FE3) 2004-2009 02
017 BUSHING, RR SUSP ADJ LINK (ЧАСТЬ OF 19) 2004-2009
018 11519149 БОЛТ, RR SUSP ADJ LINK (INNER) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) E26 (FE1, FE3) 2004-2009 02
019 25716355 LINK, RR SUSP ADJ (INCLS 17, 20) E26 2004-2009 02
020 BUSHING, RR SUSP ADJ LINK (ЧАСТЬ OF 19) 2004-2009
021 BUSHING, RR SUSP UPR CONT ARM (ЧАСТЬ OF 23) 2004-2009
022 03537773 ГАЙКА, RR SUSP UPR CONT ARM (OUTER) (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) E 2004-2009 02
023 15267619 ARM, RR SUSP UPR CONT (INCLS 21, 24) E26 (FE1, FE3) 2004-2008 01
023 15267620 ARM, RR SUSP UPR CONT (INCLS 21, 24) E26 (FE1, FE3) 2004-2009 01
024 BUSHING, RR SUSP UPR CONT ARM (ЧАСТЬ OF 23) 2004-2009
025 11588475 WASHER, RR SUSP (FLAT W/SLOT, 14.75X86X4, GMW2M STEEL, GMW3044) E26 2004-2009 02
026 11518653 БОЛТ, HFLGE, M14X2X136, 66 THD, 30.5 OD, 10.9, 7114M, MACH, DOG POINT (RR SUSP) 2004-2009 02
027 11515720 SCREW, FLAT 6 LOBED, M6X1X20, 14.5 THD, 9.8, T-30 TORX, HDR PT (RR BRK ROT (PUSH ON)) (8.908) 2004-2009 04
028 10289657 ГАЙКА, RR WHL DRV UJT SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE) (6.056) E 2004-2008 02
029 15235141 ROTOR, RR BRK (ACDelco #177-0911) E 2004-2009 02
030 89047639 HUB, RR WHL (W/WHL SPD SEN) (INCLS 31) (6 STUD HUB) (ACDelco #RW20-19) E26 2004-2009 02
031 БОЛТ, RR WHL HUB (ЧАСТЬ OF 30) 2004-2009
032 CALIPER, RR BRK (СМ. ГРУППУ 05.000 CALIPER/ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
033 BRAKE, RR (СМ. ГРУППУ 05.000 СТОЯНОЧНЫЙ ТОРМОЗ ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
034 BUSHING, RR SUSP TRAILING ARM (ЧАСТЬ OF 35) 2004-2009
035 88951999 KNUCKLE, RR SUSP (INCLS 34, 36, 37) E 2004-2009 01
035 88952000 KNUCKLE, RR SUSP (INCLS 34, 36, 37) E 2004-2009 01
036 BUSHING, RR SUSP LWR CONT ARM (ЧАСТЬ OF 35) 2004-2009
037 BUSHING, RR SUSP SUPT (ЧАСТЬ OF 35) 2004-2009
038 11518337 БОЛТ, HFH M12X1.75X75, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, REDUCED BODY (RR BRK CLPR BRKT) 2004-2009 02
039 11519097 БОЛТ, HFH M12X1.75X55, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, RED BODY. (RR BRK CLPR BRKT) 2004-2009 02
040 11519097 БОЛТ, RR WHL HUB (HFH M12X1.75X55, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, RED BODY.) (8.900) E 2004-2009 03
041 25693149 BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) E 2004-2009 01
041 25693150 BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) E 2004-2009 01
042 11515771 БОЛТ, HFH, REDUCED BODY, M10X1.5X55, 30THD, 22.3 O.D., 10.9, 7114 (PARK BRK CBL BRKT) 2004-2009 04
043 SHAFT KIT, RR WHL DRV (СМ. ГРУППУ 05.000 ВАЛ ЗАДНЕЙ ОСИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
044 11516078 ГАЙКА, RR STAB SHF LINK (M12X1.75X18) (8.917) E (FE1, FE3) 2004-2009 04
045 20765234 INSULATOR, RR SPR UPR E26 2004-2009 02
046 10356529 ПРУЖИНА, RR E (8GF, 8GJ, 8GK, 9GF, 9GJ, 9GK) 2004-2005 02
046 10356529 ПРУЖИНА, RR E (8MA, 8MB, 8MC, 9MA, 9MB, 9MC) 2004-2008 02
046 10356530 ПРУЖИНА, RR E (8GD, 9GD) 2004-2005 02
046 10356530 ПРУЖИНА, RR E (8MD, 9MD) 2004-2008 02
047 15895319 LINK, RR STAB SHF E 2004-2009 01
047 15895320 LINK, RR STAB SHF E 2004-2009 01
048 11519707 БОЛТ, RR SUSP LWR CONT ARM (OUTER) (M14X2X76) (HEX HD W/CON WA) E26 (FE1, FE3) 2004-2009 02
049 11588481 WASHER, RR SUSP (FLAT W/SPL SLOT, 16.75X86X4.0, GMW2M-ST-S-HR1 STEEL, GMW3044) E26 2004-2009 02
050 25707735 INSULATOR, RR SPR LWR E (FE1, FE3) 2004-2009 02
051 11519151 БОЛТ, RR SUSP LWR CONT ARM (INNER) (HFH, M14X2X110) (POINTED POINT) (7.039) E26 (FE1, FE3) 2004-2009 02
052 25768320 ARM, RR SUSP LWR CONT (INCLS 53) E26 2004-2009 01
052 25768321 ARM, RR SUSP LWR CONT (INCLS 53) E26 2004-2009 01
053 BUSHING, RR SUSP LWR CONT ARM (ЧАСТЬ OF 52) 2004-2009
054 03537773 ГАЙКА, RR SUSP LWR CONT ARM (INNER) (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) E 2004-2009 02
055 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (RR STAB SHF BRKT) 2004-2009 04
056 25719675 BRACKET, RR STAB SHF E 2004-2009 02
057 25758596 INSULATOR, RR STAB SHF E 2004-2009 02
058 25768322 SHAFT, RR STAB (22MM SOLID) E 2004-2009 01
059 11518927 БОЛТ, RR SUSP (M16X2X136) (8.900) E 2004-2009 02
