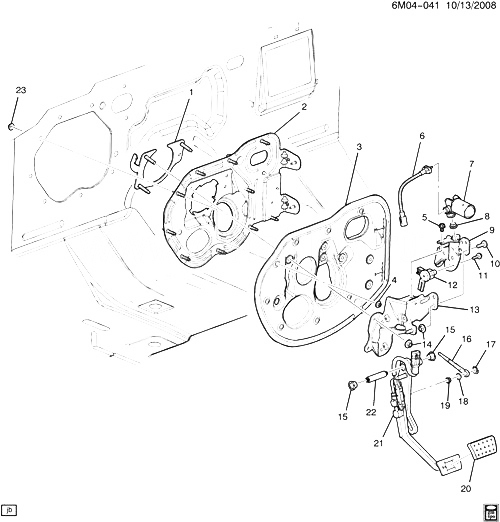

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25741052 |
BRACKET, BRK PED BRKT |
EB |
2004-2009 |
01 |
| 002 |
25764209 |
REINFORCEMENT, DA PNL BRK PED BRKT (WITHOUT ТОРМОЗНОЙ УСИЛИТЕЛЬ BRACKET) |
EB26 |
2004-2007 |
01 |
| 003 |
25732428 |
BARRIER, BRK PED BRKT SND |
EB26 |
2004-2009 |
01 |
| 004 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR)
|
2004-2009 |
05 |
|
| 005 |
|
БОЛТ, BRK PED BRKT BR (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 006 |
89047778 |
CABLE, BRK PED ADJR ACTR
| EB26 (JF4) |
2004-2009 |
01 |
|
| 007 |
89047780 |
MOTOR KIT, BRK ACCEL PED ADJR ACTR
| EB26 (JF4) |
2004-2005 |
01 |
|
| 008 |
|
RIVET, BRK PED BRKT (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 009 |
|
BRACKET, BRK PED (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 010 |
|
STUD, BRK PED BRKT (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 011 |
11609999 |
SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (BRK PED POSN SEN) |
|
2004-2009 |
01 |
| 012 |
89047699 |
SENSOR KIT, BRK PED POSN
| EB26 |
2004-2009 |
01 |
|
| 013 |
|
BRACKET, BRK PED (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 014 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT)
|
2004-2009 |
05 |
|
| 015 |
|
BUSHING, BRK PED PIV (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 016 |
|
ROD, BRK PED PUSH (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 017 |
25697461 |
RETAINER, BRK PED PUSH ROD BOOT (ЧАСТЬ OF 21) |
EB |
2004-2009 |
01 |
| 018 |
|
SEAL, BRK PED PUSH ROD (O RING) (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 019 |
10434956 |
BUSHING, BRK PED PUSH ROD (ЧАСТЬ OF 21) |
E |
2004-2009 |
01 |
| 020 |
|
COVER, BRK PED (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 021 |
10368488 |
PEDAL, BRK (INCLS 5, 8-10, 13, 15-20, 22) |
E (JF4) |
2004-2006 |
01 |
| 022 |
|
PIN, BRK PED PIV (ЧАСТЬ OF 21) |
|
2004-2006 |
|
| 023 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA PNL REINF)
|
2004-2009 |
09 |
|
