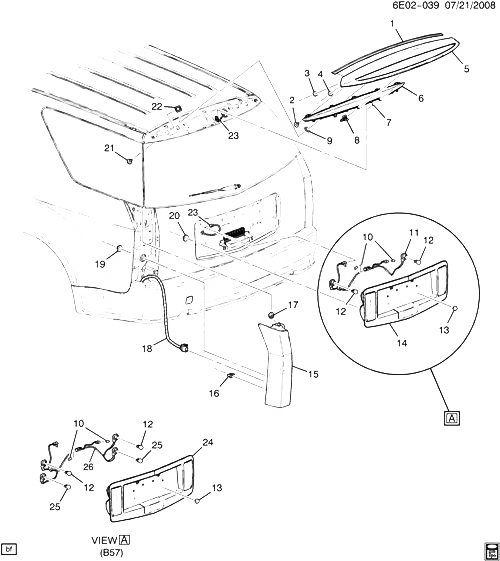

(6E02-039) - 2005-2009 E ЗАДНИЕ ФАРЫ CADILLAC - SRX 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25773051 WEATHERSTRIP, L/GATE UPR E 2005-2009 01
002 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (L/GATE APLQ) (8.977) 2005-2009 05
003 15211328 GASKET, HIGH MT S/LP (USED W/BEZEL 12335827) E 2005-2009 03
004 15211327 GASKET, HIGH MT S/LP (USED WITH BEZEL 12335827) (ON TAB SEAL-T/LP HSG S/LP (ON STUD) E 2005-2008 02
005 19121111 BEZEL, HIGH MT S/LP (MUST ALSO ORDER GASKETS 15211328, 15211327, 25759092.) E 2005-2005 01
006 15930616 ЛАМПА, HIGH MT STOP E 2005-2005 01
007 15213960 GASKET, HIGH MT S/LP (USED WITH BEZEL 12335827) (ON STUD) E 2005-2006 02
008 11588650 CLIP, 12X14X16.6, GM4345M (L/GATE APLQ) 2005-2009 03
009 25759092 GASKET, HIGH MT S/LP (38 OD X 28 ID X 9.5 THICK) E 2005-2006 03
010 01999382 BULB, (ЧАСТЬ OF 14, 24) (ACDelco #W5WLL) (LONGER LIFE) 2005-2009 02
011 HARNESS, RR LIC PLT LP WRG (ЧАСТЬ OF 14) 2005-2009
012 12450108 BULB, TRADE #3157KX (ЧАСТЬ OF 14, 24) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON) 2005-2009 02
013 25735605 BUMPER, RR LIC PLT PKT (ЧАСТЬ OF 14, 24) (2.662) E 2005-2009 02
014 12335850 ЛАМПА, B/U RR LIC (W/RR LIC PLT PKT) (INCLS 10-13) (КРАСКА TO MATCH) E (EXC T79) 2005-2009 01
015 25936964 ЛАМПА, TAIL E (EXC T79) 2005-2006 01
015 25936965 ЛАМПА, TAIL E (EXC T79) 2005-2006 01
015 25936966 ЛАМПА, TAIL E (T79) (EXPORT) 2005-2006 01
015 25936967 ЛАМПА, TAIL E (T79) (EXPORT) 2005-2006 01
016 25736754 RETAINER, T/LP (PUSH IN) (14 X 21MM HEAD) E 2005-2006 02
017 11519918 RETAINER, T/LP (PUSH IN) (16MM ROUND HEAD) (2.664) E 2005-2006 02
018 HARNESS, BODY WRG (СМ. ГРУППУ 13.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2009
019 11517736 ГАЙКА, HEX, M6X1, 5.7 HIGH, 24 OD, 9, 7111M, W/2.5 THK SEALING WA (T/LP) 2005-2009 04
020 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (B/U RR LIC PLT LP) 2005-2009 05
021 11517230 БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (L/GATE UPR SI APLQ) 2005-2009 07
022 89025118 GASKET, HIGH MT S/LP E 2005-2006 03
023 15211652 HARNESS, L/GATE LK R/WDO DEFG R/WDO WPR WRG E (EXC AC8, T79) 2005-2005 01
023 15211653 HARNESS, L/GATE LK R/WDO DEFG R/WDO WPR WRG E (T79) (EXPORT) 2005-2005 01
024 12335851 ЛАМПА, B/U RR FOG RR LIC PLT (INCLS 10, 12, 13, 25, 26) (КРАСКА TO MATCH) (2.697) E (T79) (EXPORT) 2005-2006 01
024 12335851 ЛАМПА, B/U RR FOG RR LIC PLT (INCLS 10, 12, 13, 25, 26) (КРАСКА TO MATCH) E (T79) (EXPORT) 2005-2006 01
024 12335851 ЛАМПА, B/U RR FOG RR LIC PLT (INCLS 10, 12, 13, 25, 26) (КРАСКА TO MATCH) (2.697) E (T79) (EXPORT) 2005-2006 01
025 12450108 BULB, TRADE #3157KX (RR FOG LP) (ЧАСТЬ OF 24) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON) 2005-2009 02
026 HARNESS, L/GATE LK R/WDO DEFG R/WDO WPR WRG (ЧАСТЬ OF 24) 2005-2009
