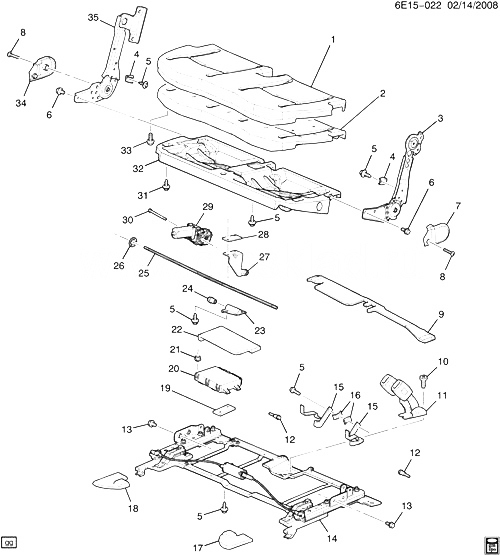

(6E15-022) - 2004-2009 E ЗАДНЕЕ СИДЕНЬЕ #2 CUSHION(AM0) CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88994522 COVER, R/SEAT #2 CUSH (NEUTRAL) E (702) 2004-2005 01
001 88994523 COVER, R/SEAT #2 CUSH (GRAY) E (132) 2004-2009 01
001 88994524 COVER, R/SEAT #2 CUSH (EBONY) E (192) 2004-2009 01
002 88898295 PAD, R/SEAT #2 CUSH E 2004-2009 01
003 88898301 RECLINER, R/SEAT (#2) E 2004-2009 01
004 88992526 SUPPORT, R/SEAT E 2004-2009 02
005 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (R/SEAT #2) (8.977) 2004-2009 17
006 11516941 БОЛТ, HEX HD CONICAL SPR WA, M10X1.5X20 (R/SEAT RECL) 2004-2009 08
007 88898436 COVER, R/SEAT RECL OTR FIN (NEUTRAL) (LOWER) E (70I) 2004-2005 01
007 88898438 COVER, R/SEAT RECL OTR FIN (GRAY) (LOWER) (#2) E (13I) 2004-2009 01
007 88992531 COVER, R/SEAT RECL OTR FIN (EBONY) (LOWER) (#2) E (19I) 2004-2009 01
008 15659231 БОЛТ, R/SEAT #2 (PLASTICS TO РАМА) (M4.2X1.41X16 TORX RND HD) (16.069) E 2004-2009 AR
009 88898430 COVER, R/SEAT ADJR TRK FIN CVR CLOSEOUT (NEUTRAL) E (70I) 2004-2005 01
009 88898432 COVER, R/SEAT ADJR TRK FIN CVR CLOSEOUT (GRAY) E (13I) 2004-2009 01
009 88992539 COVER, R/SEAT ADJR TRK FIN CVR CLOSEOUT (EBONY) E (19I) 2004-2009 01
010 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (R/SEAT #2) (8.907) 2004-2009 03
011 89023039 BELT KIT, R/SEAT #2 (BKL SI) (GRAY) E (AM0, 13I) 2004-2009 01
011 89023040 BELT KIT, R/SEAT #2 (BKL SI) (EBONY) E (AM0, 19I) 2004-2009 01
011 89023041 BELT KIT, R/SEAT #2 (BKL SI) (NEUTRAL) E (AM0, 70I) 2004-2005 01
012 88993012 БОЛТ, R/SEAT ADJR BRKT E 2004-2009 02
013 11516941 БОЛТ, HEX HD CONICAL SPR WA, M10X1.5X20 (R/SEAT RECL) 2004-2009 08
014 88898384 ADJUSTER, R/SEAT (#2) (INCLS ACTUATOR) E 2004-2009 01
015 88898446 RETAINER, R/SEAT #2 BELT (RETAINERS STRAP FOR BUCKLE) E (AM0) 2004-2009 02
016 88992521 RETAINER, R/SEAT BK CUSH (SEAT BELT STRAP) (#2) E 2004-2009 02
017 88994077 COVER, R/SEAT ADJR TRK FIN (NEUTRAL) E (70I) 2004-2005 01
017 88994078 COVER, R/SEAT ADJR TRK FIN (EBONY) E (19I) 2004-2009 01
017 88994079 COVER, R/SEAT ADJR TRK FIN (GRAY) E (13I) 2004-2009 01
018 88994080 COVER, R/SEAT ADJR TRK FIN (NEUTRAL) E (70I) 2004-2005 01
018 88994081 COVER, R/SEAT ADJR TRK FIN (EBONY) E (19I) 2004-2009 01
018 88994082 COVER, R/SEAT ADJR TRK FIN (GRAY) E (13I) 2004-2009 01
019 88993016 INSULATOR, R/SEAT ADJR TRK (#2) E 2004-2009 01
020 88994444 МОДУЛЬ, R/SEAT CONT E 2004-2006 01
021 11514527 ГАЙКА, HEX FLG M5X0.8 GRD 9 ZP (R/SEAT ADJR BRKT) 2004-2009 03
022 88992540 COVER, R/SEAT CUSH BTM (NEUTRAL) E (702) 2004-2005 01
022 88992541 COVER, R/SEAT CUSH BTM (GRAY) (#2) E (132) 2004-2009 01
022 88992542 COVER, R/SEAT CUSH BTM (EBONY) (#2) E (192) 2004-2009 01
023 88992522 RETAINER, R/SEAT BK CUSH (RECLINER SHAFT) (#2) E 2004-2009 01
024 88992523 BEARING, R/SEAT #2 BK PIV SHF (25MM) (11.655) E 2004-2009 01
025 88992520 SHAFT, R/SEAT #2 BK RECL PIV (11.377) E 2004-2009 01
026 09134618 RETAINER, R/SEAT #2 CUSH (SHAFTS) (11.561) E 2004-2009 01
027 88898365 BRACKET, R/SEAT RR (RECL MOTOR ATCH) (#2) E 2004-2009 01
028 88993015 INSULATOR, R/SEAT #2 BK RECL MTR MT E 2004-2009 01
029 88898296 MOTOR, R/SEAT #2 BK PIV ACTR (90 DEGREE MOTOR) (LOCATED IN CUSHION ASM) E 2004-2009 01
030 88993063 БОЛТ, R/SEAT (8-18X0.5, 0.44 OD) (CONTROL HEADS BOTTOM PANEL MTG) E 2004-2009 AR
031 88993156 BUMPER, R/SEAT E 2004-2009 01
032 88898448 РАМА, R/SEAT #2 CUSH E 2004-2005 01
033 22035124 БОЛТ, R/SEAT CUSH (HEX W/WA) E 2004-2009 01
034 88898418 COVER, R/SEAT RECL OTR FIN (NEUTRAL) E (70I) 2004-2005 01
034 88898420 COVER, R/SEAT RECL OTR FIN (GRAY) (#2) E (13I) 2004-2009 01
034 88992534 COVER, R/SEAT RECL OTR FIN (EBONY) (#2) E (19I) 2004-2009 01
035 88898300 RECLINER, R/SEAT (#2) E 2004-2009 01
