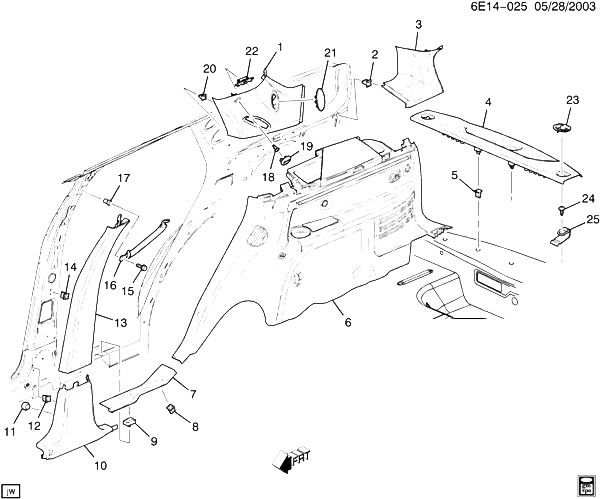

(6E14-025) - 2004-2009 E ОТДЕЛКА/CENTER ПАНЕЛЬ ЗАДНЕЙ СТОЙКИ КУЗОВА QUARTER CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15935504 MOLDING, BODY SI WDO FRT GARN (C-PLR (SAIL) NO AIR) (INCLS 18-22) (GRAY) E (13I, 19I) (EXC C57) (EXPORT) 2004-2009 01
001 15935505 MOLDING, BODY SI WDO FRT GARN (C-PLR (SAIL) NO AIR) (INCLS 18-22) (GRAY) E (13I, 19I) (EXC CZ2, C57) (EXPORT) 2004-2007 01
001 15935505 MOLDING, BODY SI WDO FRT GARN (C-PLR (SAIL) NO AIR) (INCLS 18-22) (GRAY) E (13I, 19I) (EXC C57) (EXPORT) 2004-2009 01
001 15935510 MOLDING, BODY SI WDO FRT GARN (INCLS 18-22) (GRAY) E (C57, 13I, 19I) 2004-2009 01
001 15935511 MOLDING, BODY SI WDO FRT GARN (INCLS 18-22) (GRAY) E (C57, 13I, 19I) 2004-2009 01
001 25770426 MOLDING, BODY SI WDO FRT GARN (INCLS 18-22) (NEUTRAL) E (70I) (EXC C57) 2004-2005 01
001 25770429 MOLDING, BODY SI WDO FRT GARN (INCLS 18-22) (NEUTRAL) E (70I) (EXC C57) 2004-2005 01
001 25770432 MOLDING, BODY SI WDO FRT GARN (INCLS 18-22) (NEUTRAL) E (C57, 70I) 2004-2005 01
001 25770435 MOLDING, BODY SI WDO FRT GARN (INCLS 18-22) (NEUTRAL) E (C57, 70I) 2004-2005 01
002 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 3) 2004-2009 04
003 15935474 MOLDING, BODY SI WDO RR GARN (INCLS 2) (GRAY) E (AM0, 13I, 19I) 2004-2007 01
003 25766672 MOLDING, BODY SI WDO RR GARN (INCLS 2) (GRAY) E (13I, 19I) (EXC AM0) 2004-2005 01
003 25766673 MOLDING, BODY SI WDO RR GARN (INCLS 2) (NEUTRAL) E (70I) (EXC AM0) 2004-2005 01
003 25766676 MOLDING, BODY SI WDO RR GARN (INCLS 2) (NEUTRAL) E (70I) (EXC AM0) 2004-2005 01
003 25766678 MOLDING, BODY SI WDO RR GARN (INCLS 2) (GRAY) E (AM0, 13I, 19I) 2004-2005 01
003 25766679 MOLDING, BODY SI WDO RR GARN (INCLS 2) (NEUTRAL) E (AM0, 70I) 2004-2005 01
003 25766682 MOLDING, BODY SI WDO RR GARN (INCLS 2) (NEUTRAL) E (AM0, 70I) 2004-2005 01
003 25885623 MOLDING, BODY SI WDO RR GARN (INCLS 2) (GRAY) E (13I, 19I) (EXC AM0, CZ2) 2004-2007 01
003 25885623 MOLDING, BODY SI WDO RR GARN (INCLS 2) (GRAY) E (CZ2, 13I, 19I) (EXC AM0) (EXPORT) 2004-2007 01
004 25773792 PLATE, R/CMPT SILL TR (INCLS 5) (GRAY) E (13I) 2004-2005 01
004 25773793 PLATE, R/CMPT SILL TR (INCLS 5) (NEUTRAL) E (70I) 2004-2005 01
004 25800537 PLATE, R/CMPT SILL TR (INCLS 5) (EBONY) E (19I) 2004-2007 01
005 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 4) 2004-2009 08
006 PANEL, BODY SI LWR TR (СМ. ГРУППУ 15.000 ОТДЕЛКА/QUARTER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
007 15279198 PLATE, RR S/D SILL TR (INCLS 8, 9) (GRAY) E (13I) 2004-2006 01
007 15279199 PLATE, RR S/D SILL TR (INCLS 8, 9) (EBONY) E (19I) 2004-2006 01
007 15279202 PLATE, RR S/D SILL TR (INCLS 8, 9) (GRAY) E (13I) 2004-2006 01
007 15279203 PLATE, RR S/D SILL TR (INCLS 8, 9) (EBONY) E (19I) 2004-2006 01
007 25763796 PLATE, RR S/D SILL TR (INCLS 8, 9) (NEUTRAL) E (70I) 2004-2005 01
007 25763800 PLATE, RR S/D SILL TR (INCLS 8, 9) (NEUTRAL) E (70I) 2004-2005 01
008 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 7) 2004-2009 02
009 25672428 RETAINER, RR S/D SILL TR PLT (ЧАСТЬ OF 7) (7 X 14MM HOLE) (RECTANGLE) (11.175) (2LH/2RH) E 2004-2009 04
010 15935530 PANEL, C/PLR LWR TR (INCLS 11, 12) (GRAY) E (13I) 2004-2009 01
010 15935531 PANEL, C/PLR LWR TR (INCLS 11, 12) (GRAY) E (13I) 2004-2009 01
010 15935532 PANEL, C/PLR LWR TR (INCLS 11, 12) (EBONY) E (19I) (EXPORT) 2004-2007 01
010 15935532 PANEL, C/PLR LWR TR (INCLS 11, 12) (EBONY) E (19I) 2004-2009 01
010 15935533 PANEL, C/PLR LWR TR (INCLS 11, 12) (EBONY) E (19I) (EXPORT) 2004-2007 01
010 15935533 PANEL, C/PLR LWR TR (INCLS 11, 12) (EBONY) E (19I) 2004-2009 01
010 25738602 PANEL, C/PLR LWR TR (INCLS 11, 12) (NEUTRAL) E (70I) 2004-2005 01
010 25738603 PANEL, C/PLR LWR TR (INCLS 11, 12) (NEUTRAL) E (70I) 2004-2005 01
011 25732230 RETAINER, C/PLR LWR T/PNL (ЧАСТЬ OF 10) (CIRCULAR PUSH-PIN) E 2004-2009 02
012 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 10) 2004-2009 04
013 25765982 PANEL, C/PLR UPR TR (INCLS 14) (NEUTRAL) E (70I) 2004-2005 01
013 25765985 PANEL, C/PLR UPR TR (INCLS 14) (NEUTRAL) E (70I) 2004-2005 01
013 25925434 PANEL, C/PLR UPR TR (INCLS 14) (GRAY) E (13I, 19I) 2004-2009 01
013 25925437 PANEL, C/PLR UPR TR (INCLS 14) (GRAY) E (13I, 19I) (EXC CZ2) 2004-2007 01
014 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 13) 2004-2009 02
015 11517486 БОЛТ-HEX, M6X1X30, 19 THD, 17 OD, 9.8, 6280M (SN-ZN), MACH, P-PT (ASST HDL BRKT) 2004-2009 02
016 25770386 HANDLE, ASST (GRAY) (2ND SEAT B/PLR) E (13I, 19I) 2004-2009 01
016 25770387 HANDLE, ASST (NEUTRAL) (2ND SEAT B/PLR) E (70I) 2004-2005 01
016 25770389 HANDLE, ASST (GRAY) (2ND SEAT B/PLR) E (13I, 19I) 2004-2009 01
016 25770390 HANDLE, ASST (NEUTRAL) (2ND SEAT B/PLR) E (70I) 2004-2005 01
017 11518908 ГАЙКА, ASST HDL (M6X1X15) (7.840) E 2004-2009 04
018 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (ЧАСТЬ OF 1) 2004-2009 01
019 25772916 PLUG, C/PLR UPR G/MLDG БОЛТ HOLE FIN (ЧАСТЬ OF 1) (GRAY) (AIRBAG) (14.865) E (13I, 19I) 2004-2008 02
019 25772917 PLUG, C/PLR UPR G/MLDG БОЛТ HOLE FIN (ЧАСТЬ OF 1) (NEUTRAL) (AIRBAG) (14.865) E (70I) 2004-2005 02
020 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 1) 2004-2009 02
021 25772922 DEFLECTOR, AUX КОНДИЦИОНЕР AIR OTLT (1LH, 1RH) (ЧАСТЬ OF 1) (GRAY) E (AM0, C57, 13I, 19I) 2004-2006 02
021 25772923 DEFLECTOR, AUX КОНДИЦИОНЕР AIR OTLT (1LH, 1RH) (ЧАСТЬ OF 1) (NEUTRAL L) E (AM0, C57, 70I) 2004-2005 02
022 11588659 CLIP, BODY SI WDO FRT G/MLDG (ЧАСТЬ OF 1) (M12.7X45) E 2004-2005 04
023 25764196 BEZEL, CARGO TIE DN LOOP (RR COMPT SILL PLATE) (GRAY) E (13I) 2004-2009 02
023 25764197 BEZEL, CARGO TIE DN LOOP (RR COMPT SILL PLATE) (NEUTRAL) E (70I) 2004-2005 02
023 25764198 BEZEL, CARGO TIE DN LOOP (RR COMPT SILL PLATE) (EBONY) E (19I) 2004-2009 02
024 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (CARGO TIE DN HOOK) (8.907) 2004-2009 04
025 25764204 HOOK, CARGO TIE DN (W/STRAIGHT BRKT) E 2004-2009 04
