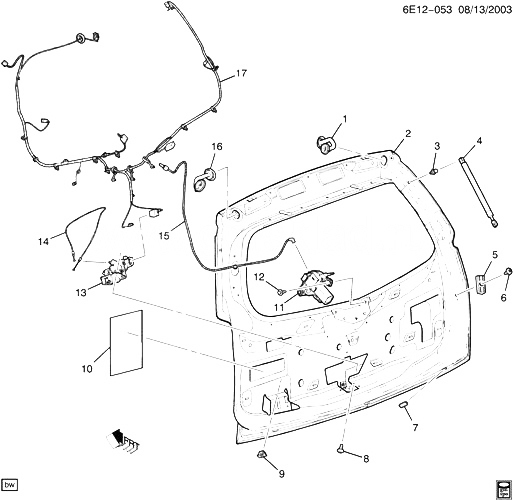

(6E12-053) - 2004-2005 E АРМАТУРА ОТКРЫВАНИЯ (ПОДЪЕМА) ДВЕРИ ЧАСТЬ 2 CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25771684 GROMMET, L/GATE WRG HARN (2.480) EB 2004-2005 01
002 15828682 GATE, LIFT (VEHICLES BUILT ON JAN 16, 2005 PRIOR ORDER REINFORCEMENT 15141474 LATCH 15243667) EB 2004-2005 01
003 10189896 STUD, L/GATE STRUT (L/GATE SI) (8.015) E 2004-2004 02
004 15872898 STRUT, L/GATE E 2004-2005 01
004 15872899 STRUT, L/GATE E 2004-2005 01
004 19235277 STRUT, L/GATE (ACDelco #510-1067) (ALL MAKES) EB26 (LH2) 2004-2004 02
004 19235277 STRUT, L/GATE (ACDelco #510-1067) (ALL MAKES) EB26 (LY7) 2004-2005 02
005 25766856 WEDGE, L/GATE (L/GATE SI) E 2004-2005 02
006 11518446 SCREW-RD WA HD, M6X1X19, 16.38 OD, 12 THD, 10.9, 6138M. (L/GATE WGE (L/GATE SI)) 2004-2005 02
007 25732248 PLUG, L/GATE INR PNL DRN HOLE EB 2004-2005 02
008 11518446 SCREW-RD WA HD, M6X1X19, 16.38 OD, 12 THD, 10.9, 6138M. (L/GATE LAT) 2004-2005 03
009 11518162 NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (L/GATE OTR PNL) 2004-2005 01
010 25759086 DEADENER, R/CMPT PNL E 2004-2005 01
011 25805170 MOTOR, R/WDO WPR (W/NOZZLE) (ACDelco #25805170) E 2004-2005 01
012 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (R/WDO WPR MOT) 2004-2005 03
013 25717930 LATCH, L/GATE (INCLS 14) E 2004-2004 01
014 25732279 CABLE, L/GATE O/S HDL (ЧАСТЬ OF 13) E 2004-2004 01
015 25870667 HOSE, R/WDO WA NOZ (WITH CHECK VLV) E 2004-2005 01
016 25771685 GROMMET, L/GATE WRG HARN (2.480) EB 2004-2005 01
017 15211652 HARNESS, L/GATE LK R/WDO DEFG R/WDO WPR WRG E (EXC AC8, T79) 2004-2005 01
017 15211653 HARNESS, L/GATE LK R/WDO DEFG R/WDO WPR WRG E (T79) (EXPORT) 2004-2005 01
