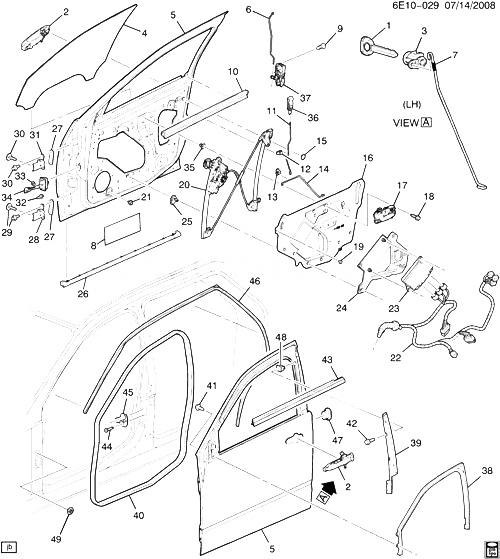

(6E10-029) - 2004-2006 E АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19207864 КЛЮЧ, DR LK IGN LK E 2004-2006 01
002 19121213 HANDLE PKG, FRT S/D O/S (КРАСКА TO MATCH) E 2004-2006 01
002 19121214 HANDLE PKG, FRT S/D O/S (КРАСКА TO MATCH) E 2004-2006 01
003 CYLINDER, FRT S/D LK (СМ. ГРУППУ 10.000 ЦИЛИНДР ЗАМКА ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2006
004 15833810 WINDOW, FRT S/D E 2004-2006 01
004 15833811 WINDOW, FRT S/D E 2004-2006 01
005 DOOR, FRT SI (СМ. ГРУППУ 12.000 КУЗОВНЫЕ ДЕТАЛИ- ДВЕРИ AND АРМАТУРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS PANEL, PLATE, REINFORCEMENT) 2004-2006
006 25766237 ROD, FRT S/D O/S HDL E 2004-2006 01
006 25766238 ROD, FRT S/D O/S HDL E 2004-2006 01
007 25718638 ROD, FRT S/D LK CYL EB 2004-2006 01
008 25752069 DEADENER, FRT S/D E 2004-2006 02
009 11517230 БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (FRT S/D LK) 2004-2006 06
010 25758328 SEALING STRIP, FRT S/D WDO INR E 2004-2006 01
010 25795707 SEALING STRIP, FRT S/D WDO INR E 2004-2006 01
011 25718643 ROD, FRT S/D LKG E 2004-2006 01
011 25718644 ROD, FRT S/D LKG E 2004-2006 01
012 16608794 CLIP, FRT S/D LKG ROD E 2004-2006 02
013 16608794 CLIP, FRT S/D I/S HDL ROD (10.565) E 2004-2006 02
014 25718646 ROD, FRT S/D I/S HDL E 2004-2006 01
014 25718647 ROD, FRT S/D I/S HDL E 2004-2006 01
015 21110669 PLUG, FRT S/D INR PNL HOLE (35 MM) (ROUND) (12.179) E 2004-2006 02
016 15218754 DEFLECTOR, FRT S/D WAT (INCLS 19) E 2004-2006 01
016 25718631 DEFLECTOR, FRT S/D WAT (INCLS 19) E 2004-2006 01
017 25759728 HANDLE, FRT S/D I/S (HIGH LUSTER) E 2004-2006 01
017 25759729 HANDLE, FRT S/D I/S (HIGH LUSTER) E 2004-2006 01
018 12337828 SCREW, HEX W/FLAT WA, TAP, M6.3X1.81X20, 13.2 O.D., AB PT, STL, PZ0R (FRT S/D I/S HDL) 2004-2006 02
019 PLUG, FRT S/D INR PNL HOLE (ЧАСТЬ OF 16) 2004-2006
020 25773048 REGULATOR, FRT S/D WDO (10.783) (ACDelco #25773048) E 2004-2006 01
020 25773048 REGULATOR, FRT S/D WDO (ACDelco #25773048) E 2004-2006 01
020 25773049 REGULATOR, FRT S/D WDO (10.783) (ACDelco #25773049) E 2004-2006 01
020 25773049 REGULATOR, FRT S/D WDO (ACDelco #25773049) E 2004-2006 01
021 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (FRT S/D WDO REG) 2004-2006 06
022 15883427 HARNESS, FRT S/D DR WRG EB26 (U57) 2004-2006 01
022 15883428 HARNESS, FRT S/D DR WRG EB26 (U66) 2004-2006 01
022 25761145 HARNESS, FRT S/D DR WRG EB26 (U66) 2004-2006 01
022 25761146 HARNESS, FRT S/D DR WRG EB26 (U57) 2004-2006 01
023 10365428 МОДУЛЬ, DR LK O/S RR VIEW MIR P/W CONT (10.485) E (DR2, DR5) 2004-2004 02
023 10365428 МОДУЛЬ, DR LK O/S RR VIEW MIR P/W CONT E (DR2, DR5) 2004-2004 02
023 10365428 МОДУЛЬ, DR LK O/S RR VIEW MIR P/W CONT (10.485) E (DR2, DR5) 2004-2004 02
023 25767165 МОДУЛЬ, DR LK O/S RR VIEW MIR P/W CONT (10.485) E (DR4) 2004-2004 02
023 25767165 МОДУЛЬ, DR LK O/S RR VIEW MIR P/W CONT E (DR4) 2004-2004 02
023 25767165 МОДУЛЬ, DR LK O/S RR VIEW MIR P/W CONT (10.485) E (DR4) 2004-2004 02
024 25744679 BRACKET, ELEK SYS PWR SPLY MDL (FRT DR МОДУЛЬ) E 2004-2006 01
024 25744680 BRACKET, ELEK SYS PWR SPLY MDL (FRT DR МОДУЛЬ) E 2004-2006 01
025 11570209 БОЛТ, DR LK P/W CONT MDL (2.510) E 2004-2006 06
026 25733016 WEATHERSTRIP, FRT S/D LWR AUX E 2004-2005 01
026 25733017 WEATHERSTRIP, FRT S/D LWR AUX E 2004-2005 01
027 25701880 PLATE, FRT S/D HGE ANC (DR SI) E 2004-2006 04
028 15932612 HINGE, FRT S/D LWR (10.460) E 2004-2006 01
028 15932613 HINGE, FRT S/D LWR (10.460) E 2004-2006 01
029 11519106 БОЛТ, CONICAL, M8X1.25X35, 23.5 THD, 24 OD, 10.9, 7114M, 6.0 DOG PT, MACH (FRT S/D LWR HGE (BODY SI)) 2004-2006 04
030 11610041 БОЛТ, HFH W/SHLDR, M8X1.25X25, 12.55 THD, 21 OD, 10.9 (FRT S/D UPR HGE (DR SI)) 2004-2006 04
031 15932612 HINGE, FRT S/D UPR (10.460) E 2004-2006 01
031 15932613 HINGE, FRT S/D UPR (10.460) E 2004-2006 01
032 11569646 БОЛТ, FRT S/D CHK LINK (BODY SI) EB 2004-2006 02
033 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FRT S/D CHK LINK (DR SI)) 2004-2006 04
034 15783070 LINK, FRT S/D CHK E 2004-2006 02
035 03907444 ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT S/D I/S HDL) 2004-2006 02
036 25751121 KNOB, FRT S/D LKG ROD (GRAY) E (13I) 2004-2006 02
036 25751122 KNOB, FRT S/D LKG ROD (NEUTRAL) E (70I) 2004-2005 02
036 25751335 KNOB, FRT S/D LKG ROD (EBONY) E (19I) 2004-2006 02
037 25843196 LOCK, FRT S/D E 2004-2006 01
037 25843197 LOCK, FRT S/D E 2004-2006 01
038 25767129 WEATHERSTRIP, FRT S/D WDO E 2004-2006 01
038 25767130 WEATHERSTRIP, FRT S/D WDO E 2004-2006 01
039 25768297 APPLIQUE, FRT S/D WDO FRM RR (INCLS 49) (SMOOTH FINISH) (CUSTOMER MAY BE REQUIRED TO REPLACE ALL APPLIQUE TO MATCH) E 2004-2006 01
039 25768298 APPLIQUE, FRT S/D WDO FRM RR (INCLS 49) (SMOOTH FINISH) (CUSTOMER MAY BE REQUIRED TO REPLACE ALL APPLIQUE TO MATCH) E 2004-2006 01
040 19120426 WEATHERSTRIP, FRT S/D (EBONY) E (19I) 2004-2006 02
040 19169082 WEATHERSTRIP, FRT S/D (GRAY) E (13I) 2004-2006 02
040 89039948 WEATHERSTRIP, FRT S/D (NEUTRAL) E (70I) 2004-2004 02
041 20725768 SCREW, PAN HD W/FL WA, M4.2X1.41X13, 8.15 O.D., ABHL PT, 6010M, NO (FRT S/D WDO FRT CHAN BRKT) 2004-2006 02
042 11609460 SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (FRT S/D WDO FRM RR APLQ) 2004-2006 04
043 25804696 SEALING STRIP, FRT S/D WDO OTR (HIGH LUSTER FINISH) E 2004-2006 01
043 25804697 SEALING STRIP, FRT S/D WDO OTR (HIGH LUSTER FINISH) E 2004-2006 01
044 11518445 SCREW, FLAT-HD HEX ALLEN, CSINK, M8X1.25X25, 18.05 THD, 14.7 OD, 8.8, GMW3044. (FRT S/D LK STKR) 2004-2006 04
045 15883584 STRIKER, FRT S/D LK E 2004-2006 02
046 15297594 WEATHERSTRIP, FRT RR S/D UPR E 2004-2006 01
046 15297595 WEATHERSTRIP, FRT RR S/D UPR E 2004-2006 01
047 25676040 PLUG, FRT S/D ACC HOLE (AT O/S HDL ATTACH ACCESS) (25MM OD) (12.809) E 2004-2006 02
048 11570654 ГАЙКА, FRT S/D WDO FRM RR APLQ (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) EB 2004-2006 02
049 25706593 GROMMET, SUN RF HSG FRT DRN HOSE E 2004-2006 02
