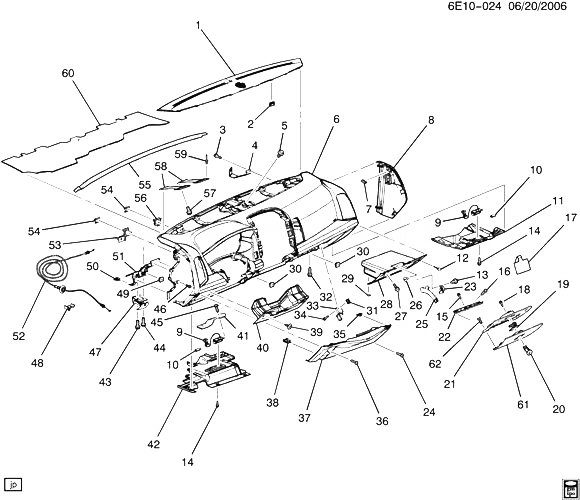

(6E10-024) - 2004-2006 E ПРИБОРНАЯ ПАНЕЛЬ ЧАСТЬ 1 TRIM CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25749921 GRILLE, W/S DEFR NOZ (INCLS 2) (EBONY) E (U57) 2004-2005 01
001 25749921 GRILLE, W/S DEFR NOZ (INCLS 2) (EBONY) E (U66) 2004-2006 01
002 22570333 RETAINER, W/S DEFR NOZ GRL (ЧАСТЬ OF 1) (10.240) E 2004-2006 08
003 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ЧАСТЬ OF 6) 2004-2006 02
004 BRACKET, OUTBOARD) (ЧАСТЬ OF 6) 2004-2006
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P) 2004-2006 09
006 25769946 PANEL, INST (INCLS 3, 4, 31, 33, 34, 49-51, 58, 59) (GRAY) EB (13I) 2004-2006 01
006 25769947 PANEL, INST (INCLS 3, 4, 31, 33, 34, 49-51, 58, 59) (EBONY) EB (19I) 2004-2006 01
006 25769948 PANEL, INST (INCLS 3, 4, 31, 33, 34, 49-51, 58, 59) (NEUTRAL) EB (70I) 2004-2005 01
007 22551452 CLIP, RETAINER, .051 THK, ZC (ЧАСТЬ OF 8) (10.240) 2004-2006 AR
008 25756779 PANEL, I/P SI TR (INCLS 7) (EBONY) EB (13I, 19I) 2004-2006 01
008 25756780 PANEL, I/P SI TR (INCLS 7) (EBONY) EB (13I, 19I) 2004-2006 01
009 03525213 ЛАМПА, CTSY (INCLS 10) (WITHOUT LENS) (IN I/P) E 2004-2006 02
010 09433102 ЛАМПА, CTSY (ЧАСТЬ OF 9) (ACDelco #564) 2004-2006 02
011 25725940 INSULATOR, I/P EB 2004-2006 01
012 15683368 BUMPER, I/P COMPT DR (ЧАСТЬ OF 28) (8.80 DIA) (CLOSED-STOP) (РАМА) (16.650) EB 2004-2004 02
013 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (I/P COMPT DR) 2004-2006 01
014 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P INSL) 2004-2006 03
015 22549046 SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (ЧАСТЬ OF 21) 2004-2006 02
016 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P COMPT DR) 2004-2006 03
017 15765539 TAG, INFL RST I/P MDL CAUTION (HANGING) E 2004-2004 01
018 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (ЧАСТЬ OF 21) 2004-2006 02
019 15820796 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 21) (EBONY) (INCL HANDLE) EB (19I) 2004-2006 01
019 15820797 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 21) (GRAY) (W/HDL) E (13I) 2004-2006 01
019 25736545 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 21) (NEUTRAL) EB (70I) 2004-2005 01
021 25749640 DOOR, I/P COMPT (INCLS 15, 18, 19, 22, 61, 62) (EBONY) (W/HANDLE) EB (19I) 2004-2006 01
021 25771235 DOOR, I/P COMPT (INCLS 15, 18, 19, 22, 61, 62) (GRAY) (W/HANDLE LATCH) EB (13I) 2004-2006 01
021 25771236 DOOR, I/P COMPT (INCLS 15, 18, 19, 22, 61, 62) (NEUTRAL) EB (70I) 2004-2005 01
022 25701665 HINGE, I/P COMPT DR (ЧАСТЬ OF 21) EB 2004-2006 01
023 25767872 DAMPENER, I/P COMPT DR EB 2004-2006 01
024 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P DRVR KNEE BOLS) 2004-2006 01
025 25728922 STOP, I/P COMPT DR (OUTBOARD) EB 2004-2006 01
025 25728923 STOP, I/P COMPT DR (INBOARD) EB 2004-2006 01
026 BUTTON, BIN) (ЧАСТЬ OF 28) 2004-2006
027 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P COMPT) 2004-2006 06
028 25771233 COMPARTMENT, I/P (INCLS 12, 26, 29) (ЧАСТЬ OF PANEL PKG) EB 2004-2006 01
029 INSULATOR, FOAM) (ЧАСТЬ OF 28) 2004-2006
030 25536302 ГАЙКА, I/P (4.2 X 1.41) (TAPPING NUT) (3.430) EB 2004-2006 22
031 11570654 ГАЙКА, I/P REINF (ЧАСТЬ OF 6) (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) E 2004-2006 02
032 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P COMPT DR HGE) 2004-2006 01
033 25736546 STRIKER, I/P COMPT DR LAT (ЧАСТЬ OF 6) EB 2004-2006 01
034 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (ЧАСТЬ OF 6) 2004-2006 01
035 22570333 RETAINER, I/P DRVR KNEE BOLS (ЧАСТЬ OF 37) (10.240) EB 2004-2006 02
036 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (I/P DRVR KNEE BOLS) 2004-2006 01
037 25750539 BOLSTER, I/P DRVR KNEE (INCLS 35, 38) (EBONY) EB (19I) 2004-2006 01
037 25750540 BOLSTER, I/P DRVR KNEE (INCLS 35, 38) (GRAY) EB (13I) 2004-2006 01
037 25750541 BOLSTER, I/P DRVR KNEE (INCLS 35, 38) (NEUTRAL) EB (70I) 2004-2005 01
038 11516993 ГАЙКА, M4.2X1.41 (ЧАСТЬ OF 37) 2004-2006 02
039 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P) 2004-2006 02
040 21994073 АМОРТИЗАТОР, I/P DRVR KNEE BOLS ENGY EB 2004-2006 01
041 25738907 BRACKET, I/P DRVR KNEE BOLS BRKT EB 2004-2006 01
042 25725939 INSULATOR, I/P EB 2004-2006 01
043 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (КАПОТ PRIM LAT REL CBL) 2004-2006 02
044 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P REINF) 2004-2006 02
045 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P DRVR KNEE BOLS BRKT) 2004-2006 01
046 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P BRKT) 2004-2006 02
047 25712639 HANDLE, КАПОТ PRIM LAT REL CBL E 2004-2006 01
048 26043783 RETAINER, КАПОТ PRIM LAT REL CBL (3.880) E 2004-2006 02
049 25536302 ГАЙКА, I/P (ЧАСТЬ OF 6) (4.2 X 1.41) (TAPPING NUT) (3.430) EB 2004-2006 22
050 11516993 ГАЙКА, M4.2X1.41 (ЧАСТЬ OF 6) 2004-2006 01
051 REINFORCEMENT, I/P (ЧАСТЬ OF 6) 2004-2006
052 25664724 CABLE, КАПОТ PRIM LAT REL EB26 2004-2006 01
053 25714892 BRACKET, I/P (INCLS 54) (CLUSTER) EB 2004-2006 01
054 11516993 ГАЙКА, M4.2X1.41 (ЧАСТЬ OF 53, 56) 2004-2006 02
055 25741697 SEAL, I/P UPR T/PNL E 2004-2006 01
056 25714893 BRACKET, I/P (INCLS 54) (CLUSTER) EB 2004-2006 01
057 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P) 2004-2006 10
058 BRACKET, PSIR STRAP) (ЧАСТЬ OF 6) 2004-2006
059 25606251 RIVET, I/P (ЧАСТЬ OF 6) (.160 SHANK .125 LONG) (.063-.252 GRIP RANGE) (12.807) EB 2004-2006 10
060 INSULATOR, I/P UPR TR PAD 2004-2006
061 15899309 DOOR, I/P COMPT (ЧАСТЬ OF 21) (GRAY) (W/O LATCH) EB (13I) 2004-2006 01
061 15899310 DOOR, I/P COMPT (ЧАСТЬ OF 21) (EBONY) (OUTER) (W/O HANDLE) EB (19I) 2004-2006 01
062 15899305 БОЛТ, I/P COMPT DR (ЧАСТЬ OF 21) EB 2004-2006 08
