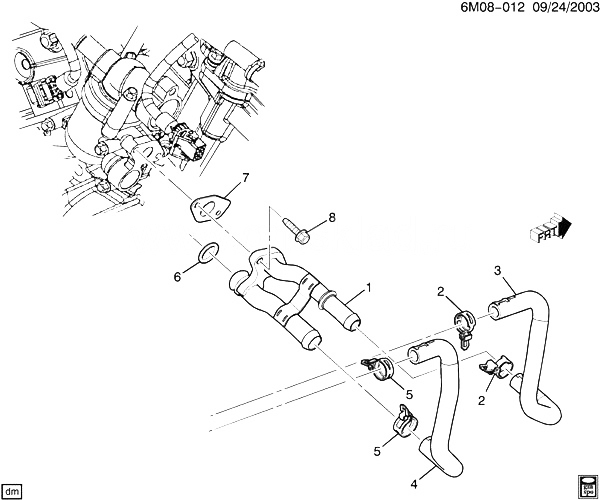

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12576734 |
PIPE, HTR INL OTLT (INCLS 6-8) |
E (LY7, MX5, M82, JJA) |
2004-2005 |
01 |
| 002 |
11516222 |
CЛАМПА, ПРУЖИНАBAND, HOSE DIA=23, WIDTH=15, 6298M, MM (ЧАСТЬ OF 3)
|
2004-2009 |
01 |
|
| 003 |
88958007 |
HOSE, HTR OTLT (INCLS 2)
| E (LY7) |
2004-2006 |
01 |
|
| 004 |
88958006 |
HOSE, HTR INL (INCLS 5)
| E (LY7) |
2004-2009 |
01 |
|
| 005 |
11516225 |
CЛАМПА, 25MM DIA, 15MM WIDTH, 6298 MATL (ЧАСТЬ OF 4) |
|
2004-2009 |
01 |
| 006 |
12588318 |
SEAL, HTR INL PIPE (O RING) (ЧАСТЬ OF 1)
| E (LY7, MX5, M82) |
2004-2005 |
01 |
|
| 007 |
12592627 |
GASKET, HTR OTLT PIPE (ЧАСТЬ OF 1)
| E26 (LY7) |
2004-2009 |
01 |
|
| 008 |
11517590 |
БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (ЧАСТЬ OF 1)
|
2004-2009 |
02 |
|
