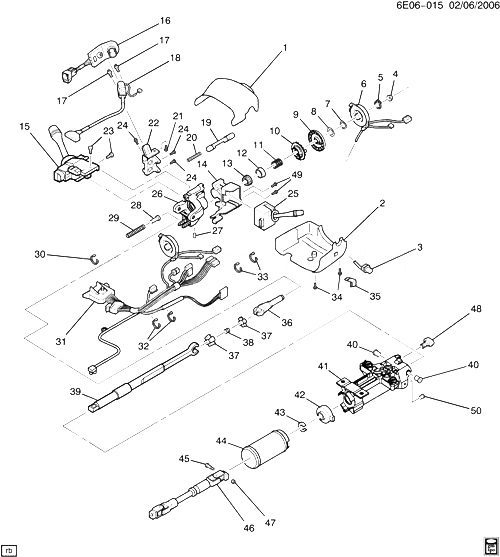

(6E06-015) - 2004-2009 E РУЛЕВАЯ КОЛОНКА CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 26097517 COVER KIT, STRG COL TR (INCLS 2) (EBONY) E (JF4) 2004-2005 01
001 26103612 COVER KIT, STRG COL TR (INCLS 2) (EBONY) EB (EXC JF4, T79) 2004-2004 01
002 COVER, STRG COL LWR TR (ЧАСТЬ OF 1) 2004-2009
003 26094840 SWITCH, BRK ACCEL PED ADJR (4.626) EB (JF4) 2004-2006 01
003 26094840 SWITCH, BRK ACCEL PED ADJR EB (JF4) 2004-2006 01
004 26056108 ГАЙКА, STRG WHL (M14X1.5 27 OD) E 2004-2004 01
005 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL (STRG WHL INFL RST MDL РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ RET) 2004-2009 01
006 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ, STRG WHL INFL RST MDL (ЧАСТЬ OF 32) 2004-2009
007 26011609 WASHER, STRG WHL INFL RST MDL РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ E 2004-2009 01
008 05694191 RING, STRG SHF LK PLT RET (*KIT1) (6.524) E 2004-2009 01
009 26094767 PLATE, STRG SHF LK (W/O SHIELD) (*KIT1) E 2004-2006 01
010 26044739 CAM, T/SIG SW CANC (W/СИГНАЛ CONTACT) (*KIT1) E 2004-2007 01
011 26055299 ПРУЖИНА, STRG SHF UPR BRG (*KIT1) E 2004-2009 01
012 15231641 SEAT, STRG SHF UPR BRG RACE (*KIT1) E 2004-2009 01
013 07845268 BEARING, STRG SHF UPR (INCLS 2 BRGS GREASE) (*KIT1) (ACDelco #S1303) E 2004-2006 01
014 26075818 BRACKET, IGN LK CYL CASE (*KIT1) E 2004-2009 01
015 01999309 SWITCH, WSW WSWA (ACDelco #D6377D) E 2004-2006 01
016 10384710 МОДУЛЬ, THEFT DTRNT E 2004-2004 01
017 26038049 БОЛТ, IGN START SW (ЧАСТЬ OF 22) (TORX HD SCREW) (*KIT1) (6.760) E 2004-2006 02
018 12450257 SWITCH, IGN START (ЧАСТЬ OF 22) (*KIT1) (ACDelco #D1421E) EB 2004-2006 01
019 PIN, STRG WHL LK (ЧАСТЬ OF 22) (*KIT1) 2004-2009
020 26034514 ПРУЖИНА, LK БОЛТ (ЧАСТЬ OF 22) (43MM) (*KIT1) E 2004-2006 01
021 26036496 БОЛТ, STRG COL UPR CVR (M4.55 TAP X15) (2.188) E 2004-2009 01
022 26081608 CASE, IGN LK CYL (INCLS 17-20, 23, 25) (*KIT1) EB 2004-2005 01
022 26081608 CASE, IGN LK CYL (INCLS 17-20, 23, 25) (*KIT1) EB (EXPORT) 2004-2005 01
023 26038049 БОЛТ, IGN LK CYL SOL (WSW WSWA SW) (ЧАСТЬ OF 22) (TORX HD SCREW) (*KIT1) (6.760) E 2004-2006 02
024 26036497 БОЛТ, IGN LK CYL CASE (M5X.8X15) (*KIT1) (6.760) E 2004-2006 03
025 26080208 SOLENOID, IGN LK CYL CONT (ЧАСТЬ OF 22) (*KIT1) E 2004-2009 01
026 25743472 SWITCH, T/SIG HDLP HDLP DIMR FOG LP (W/CRUISE CONTROL KNOB) (ACDelco #D6264C) E (EXC T79) 2004-2006 01
026 25743472 SWITCH, T/SIG HDLP HDLP DIMR FOG LP (W/CRUISE CONTROL KNOB) (2.485) (ACDelco #D6264C) E (EXC T79) 2004-2006 01
026 25743473 SWITCH, T/SIG HDLP HDLP DIMR FOG LP (W/CRUISE CONTROL KNOB) (ACDelco #D6265C) E (T79) (EXPORT) 2004-2006 01
026 25743473 SWITCH, T/SIG HDLP HDLP DIMR FOG LP (W/CRUISE CONTROL KNOB) (2.485) (ACDelco #D6265C) E (T79) (EXPORT) 2004-2006 01
027 26087973 ШЛАНГИ, STRG COL (INCLS 28) (W/O STRG SHF, INCLS STRG COL INR RACE) (*KIT1) E 2004-2004 01
028 26036317 PIN, STRG COL TILT LK REL LVR PIV (ЧАСТЬ OF 27) (M5X0.8) (T-25 TORX) (*KIT1) E 2004-2007 01
029 26034561 GUIDE, STRG COL SPR E (JF4) 2004-2005 01
030 26065450 ПРУЖИНА, STRG COL TILT E 2004-2006 01
031 26101884 STRAP, STRG COL GND E 2004-2009 01
032 26097345 HARNESS, STRG COL WRG (INCLS 6) (РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ IS HARDWIRED INTO HARNESS) E (JF4) 2004-2006 01
032 26103420 HARNESS, STRG COL WRG (INCLS 6) (РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ IS HARDWIRED INTO HARNESS) E (EXC JF4) 2004-2006 01
033 12355066 STRAP, PLASTIC ADJ TIE (215MM LG) (WRG HARN) (8.965) (ACDelco #16TS825) 2004-2009 02
034 12355066 STRAP, PLASTIC ADJ TIE (215MM LG) (STRG COL WRG HARN) (8.965) (ACDelco #16TS825) 2004-2009 02
035 26069932 БОЛТ, STRG COL LWR TR CVR (M5.2X1.81X15.12) (2.188) E 2004-2006 02
036 26069955 KNOB, STRG COL TILT WHL REL LVR (ALL PLASTIC LVR KNOB) E 2004-2009 01
037 26074286 SHAFT, UPR STRG (*KIT1) E 2004-2005 01
038 26057095 SPHERE KIT, STRG SHF (INCLS 39) (INCLS SPR JOINT PRELOAD, USE ALUMINUM TUB SHF W/STEEL YOKE) E 2004-2009 01
039 ПРУЖИНА, JT PRELOAD (ЧАСТЬ OF 38) 2004-2009
040 19168051 SHAFT, LWR STRG EB 2004-2009 01
041 26036521 PIN, STRG COL PIV E 2004-2006 02
042 26080725 JACKET, STRG COL (INCLS 49, 51) (INCLS ADAP, BRG, BRKT, SUPT STRAP) (ACCEPTS 4 БОЛТS) EB 2004-2004 01
043 15231652 SENSOR, STRG WHL POSN E 2004-2009 01
044 26071758 ADAPTER, STRG ANGLE SEN (LOCATOR/SENSOR) E 2004-2009 01
045 26077651 SEAL, STRG COL BOOT E 2004-2009 01
046 11509418 БОЛТ, M8X1.25X30.00 (INTER STRG SHF) 2004-2009 02
047 15212408 SHAFT, UPR INTER STRG (6.524) E 2004-2009 01
048 11514597 ГАЙКА, INTER STRG SHF (M10X1.5 6H, 21.8OD) (2.383) EB 2004-2009 02
049 93364414 BUMPER, STRG COL HSG (ЧАСТЬ OF 42) (PINK) (UPR) E 2004-2009 01
050 26090176 БОЛТ, STRG COL LWR TR CVR (M5X.8X15.40) E 2004-2009 02
051 26060501 BUMPER, STRG COL HSG (ЧАСТЬ OF 42) (NATURAL) (6.3MM HEIGHT) (LOWER) EB 2004-2006 01
K01 26092319 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 8-14, 17-20, 22-25, 27, 28, 37) E 2004-2005 01
