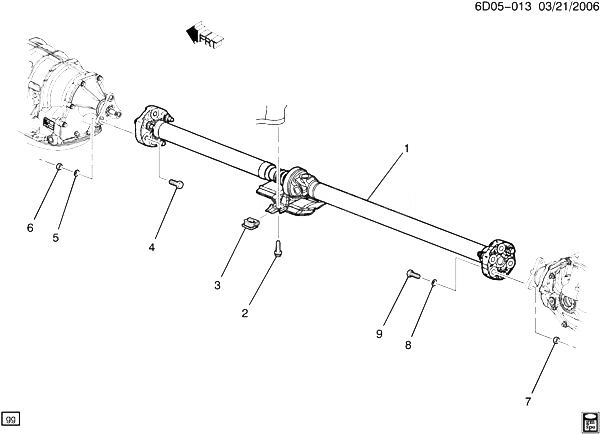

(6D05-013) - 2004-2006 E ВАЛ ПРИВОДА-КАРДАННЫЙ ВАЛ КРЕПЛЕНИЕ (M22,M82) CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25771589 SHAFT, PROP E (M22) 2004-2006 01
001 25771590 SHAFT, PROP E26 (M82) 2004-2004 01
002 11589166 БОЛТ, HEX W/CON WA, M10X1.5X39.8, 25.45 THD, 28 OD, 10.9, GMW3359, M-PT (PROP SHF BRG SUPT) 2004-2009 02
003 25708829 SHIM, PROP SHF CTR SUPT BRG (BLACK) (OVERALL HEIGHT 2MM) E 2004-2007 AR
003 25708830 SHIM, PROP SHF CTR SUPT BRG (GREEN) (OVERALL HEIGHT 4MM) E 2004-2007 AR
003 25708831 SHIM, PROP SHF CTR SUPT BRG (BLUE) (OVERALL HEIGHT 6MM) E 2004-2007 AR
003 25708832 SHIM, PROP SHF CTR SUPT BRG (YELLOW) (OVERALL HEIGHT 8MM) E 2004-2007 AR
003 25708833 SHIM, PROP SHF CTR SUPT BRG (WHITE) (OVERALL HEIGHT 10MM) E 2004-2007 AR
003 25708834 SHIM, PROP SHF CTR SUPT BRG (PURPLE) (OVERALL HEIGHT 12MM) E 2004-2007 AR
004 11588658 БОЛТ, FRT PROP SHF (M12X1.75X70) (HEX) (8.900) E 2004-2009 03
005 11588689 WASHER, FRT PROP SHF (ID 12.25, OD 23.0, THK 3.38MM) E 2004-2007 03
006 11516073 ГАЙКА, FRT PROP SHF (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917) E 2004-2009 03
007 11516073 ГАЙКА, RR PROP SHF (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917) E 2004-2009 03
008 11588689 WASHER, RR PROP SHF (ID 12.25, OD 23.0, THK 3.38MM) E 2004-2009 03
009 11588658 БОЛТ, RR PROP SHF (M12X1.75X70) (HEX) (8.900) E 2004-2009 03
