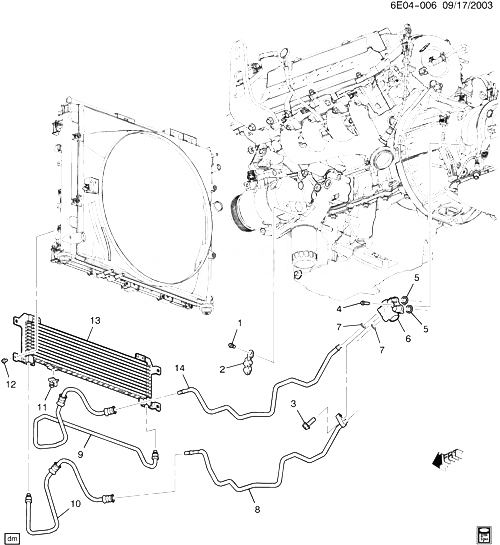

(6E04-006) - 2004-2005 E АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА (V92)(WITH THERMAL BYPASS VALVE)(1ST DES) CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2004-2005 01
002 89022494 BRACKET, TRANS FLUID CLR E (LH2, LY7) 2004-2005 01
003 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2004-2005 01
004 11515792 БОЛТ, HFH, M8X1.25X40, 22THD, 18 O.D., MAC-PT, 10.9, 7112M (TRANS FLUID CLR PIPE CONN) 2004-2005 01
005 SEAL, TRANS FLUID CLR PIPE FTG (O RING) (ЧАСТЬ OF 6) 2004-2005
006 24221232 VALVE, TRANS FLUID CLR THERMAL BYPASS (INCLS 5) E (1ST DES) 2004-2005 01
007 19130214 SEAL, TRANS FLUID CLR HOSE CONN (O RING) E (LH2, LY7, JJA) 2004-2005 02
008 19129779 HOSE, TRANS FLUID CLR LWR (INCLS BLOCK) (W/BLOCK) (USE T/W 19129780 , 11515757 REMOVE THERM BYPASS VLV.) E (LH2) 2004-2004 01
008 19129781 HOSE, TRANS FLUID CLR LWR (INCLS BLOCK) (W/BLOCK) E (LY7) 2004-2005 01
008 19129781 HOSE, TRANS FLUID CLR LWR (INCLS BLOCK) (W/BLOCK) (USE T/W 19129782 , 11515757 REMOVE THERM BYPASS VLV.) E (LY7) 2004-2004 01
009 PIPE, TRANS FLUID CLR LWR (ЧАСТЬ OF 13) 2004-2005
010 PIPE, TRANS FLUID CLR UPR (ЧАСТЬ OF 13) 2004-2005
011 CLIP, TRANS FLUID CLR PIPE (ЧАСТЬ OF 13) 2004-2005
012 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR) (ACDelco #11570082) 2004-2005 04
013 89022522 COOLER, TRANS FLUID (INCLS 9-11) E (LH2, LY7, V92) 2004-2005 01
014 19129780 HOSE, TRANS FLUID CLR UPR (W/O BLOCK) (USE ON CARS BUILT W/OR AFTER VIN 1GYEE63A750180934) (FOR CARS BUILT PRIOR TO VIN REPL T/W 19129779 , 11515757 REMOVE THERM BYPASS VLV.) E (LH2) 2004-2005 01
014 19129782 HOSE, TRANS FLUID CLR UPR (W/O BLOCK) (USE ON CARS BUILT W/OR AFTER VIN 1GYEE637150180965) (FOR CARS BUILT PRIOR TO VIN REPL T/W 19129781 , 11515757 REMOVE THERM BYPASS VLV.) E (LY7) 2004-2005 01
