| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

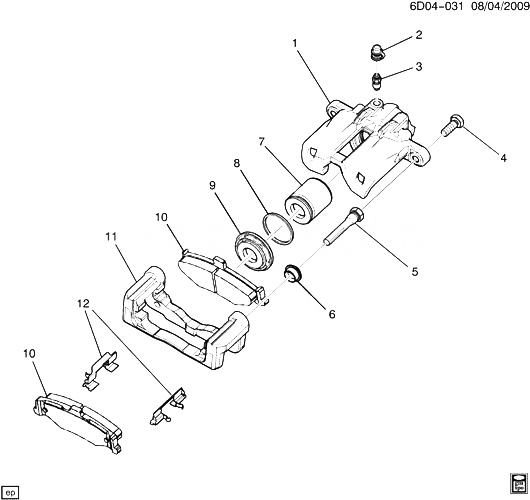

| 001 |
89047677 |
CALIPER KIT, RR BRK (INCLS 2, 3, 7-9) (ACDelco #172-2343) |
E |
2004-2009 |
01 |
| 001 |
89047678 |
CALIPER KIT, RR BRK (INCLS 2, 3, 7-9) (ACDelco #172-2344)
| E |
2004-2009 |
01 |
|
| 002 |
88951992 |
CAP, RR BRK BLEDR VLV (ЧАСТЬ OF 1) |
E |
2004-2009 |
02 |
| 003 |
88951991 |
VALVE, RR BRK CLPR BLEDR (ЧАСТЬ OF 1) |
E |
2004-2009 |
02 |
| 004 |
|
БОЛТ, RR BRK CLPR GDE PIN (ЧАСТЬ OF 1, 10) (*KIT1, KIT2) |
|
2004-2009 |
|
| 005 |
|
PIN, RR BRK CLPR GDE (*KIT1) |
|
2004-2009 |
|
| 006 |
|
BOOT, RR BRK CLPR GDE PIN (*KIT1, KIT2) |
|
2004-2009 |
|
| 007 |
|
PISTON, RR BRK CLPR (*KIT2) |
|
2004-2009 |
|
| 008 |
|
SEAL, RR BRK CLPR PSTN (*KIT2) |
|
2004-2009 |
|
| 009 |
|
BOOT, RR BRK CLPR PSTN (*KIT2) |
|
2004-2009 |
|
| 010 |
89047757 |
PAD KIT, RR DISC BRK (INCLS 4, 12) (ACDelco #171-859)
| E (JE2) |
2004-2006 |
01 |
|
| 010 |
89047758 |
PAD KIT, RR DISC BRK (INCLS 4, 12) (4.667) (ACDelco #171-0906)
| E (EXC JE2) |
2004-2009 |
01 |
|
| 011 |
88957163 |
BRACKET, RR BRK CLPR
| E26 |
2004-2009 |
02 |
|
| 012 |
|
SHIM, RR DISC BRK PAD (ЧАСТЬ OF 10) |
|
2004-2009 |
|
| K01 |
89047759 |
PIN KIT, RR BRK CLPR GDE (INCLS 4-6) (INCLS 2 PINS, 2 SEALS 2 (2.75) БОЛТS) (ACDelco #179-2044)
| E |
2004-2009 |
02 |
|
| K02 |
88957162 |
REPAIR KIT, RR BRK CLPR HYD (INCLS 4, 6, 8, 9) |
E |
2004-2009 |
02 |
