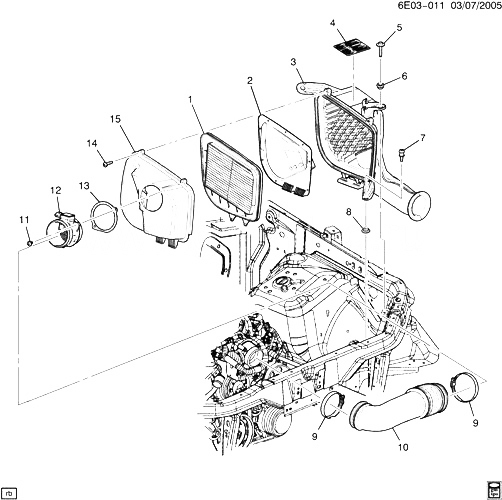

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25798271 |
ELEMENT, КОНДИЦИОНЕРL (ACDelco #A2944C)
| E (LH2, LY7) |
2004-2006 |
01 |
|
| 002 |
|
SHIELD, FRT INT AIR DUCT SPH |
|
2004-2006 |
|
| 003 |
19151528 |
COVER, КОНДИЦИОНЕРL HSG LWR (INCLS 4)
| E26 (LY7) |
2004-2006 |
01 |
|
| 004 |
|
LABEL, КОНДИЦИОНЕР REFRIG CHRG (ЧАСТЬ OF 3) |
|
2004-2006 |
|
| 005 |
11588831 |
SCREW, HEX W/ CON WA, M6X1X35, 33.5 THD, 17 O.D.HDR PT, 9.8, BLK (КОНДИЦИОНЕРL) |
|
2004-2006 |
02 |
| 006 |
15744944 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ INCLUDES RUBBER INSULATOR AND METAL SPACER) |
E (LY7) |
2004-2006 |
01 |
| 007 |
12561695 |
БОЛТ, КОНДИЦИОНЕРL (M6X1X13MM) |
E (LH2, LY7) |
2004-2005 |
01 |
| 008 |
19177871 |
INSULATOR, КОНДИЦИОНЕРL HSG (MOUNT TO MID RAIL) |
E (LY7) |
2004-2006 |
01 |
| 009 |
|
CЛАМПА, КОНДИЦИОНЕРL OTLT DUCT (ЧАСТЬ OF 10) |
|
2004-2006 |
|
| 010 |
25733251 |
DUCT, RR INT AIR (W/RESO) (INCLS 9) |
E (LY7) |
2004-2006 |
01 |
| 011 |
|
БОЛТ, MASS AIRFLOW SEN (ЧАСТЬ OF 12) |
|
2004-2005 |
|
| 012 |
12566846 |
SENSOR, MASS AIRFLOW (INCLS 11) (ACDelco #213-1593)
| E (LY7) |
2004-2006 |
01 |
|
| 013 |
15147456 |
GASKET, MASS AIRFLOW SEN |
E26 (LY7) |
2004-2006 |
01 |
| 014 |
25314060 |
БОЛТ, M6X1X30, 11 THD, 12.5 OD, 4.8, 6047M, P-PT (КОНДИЦИОНЕРL HSG CVR) |
|
2004-2006 |
02 |
| 015 |
15147455 |
COVER, КОНДИЦИОНЕРL HSG
| E26 (LY7) |
2004-2006 |
01 |
|
