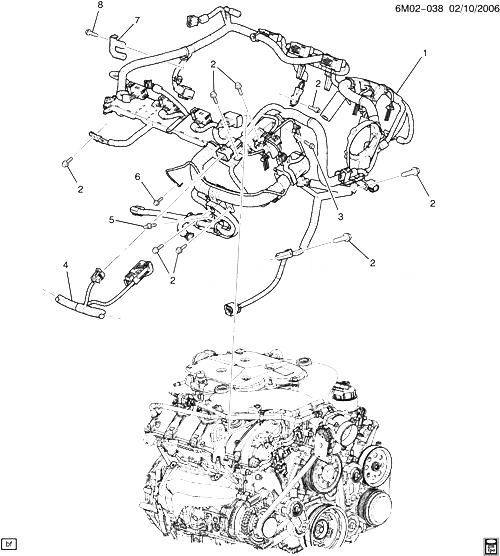

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12597469 |
HARNESS PKG, ENG WRG (WITH OIL LEVEL SENSOR) (USE T/W 15306420 CONN 12575657 (1ST DES) OR 12596327 (2ND DES) SENSORS WHEN REPLACING OLD HARNESS. MAY NEED TO REPLACE ALL PARTS LISTED.) |
E (LY7) |
2004-2004 |
01 |
| 002 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (ENG WRG HARN) |
|
2004-2009 |
08 |
| 003 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (ECM)
|
2004-2009 |
04 |
|
| 004 |
|
HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ДВИГАТЕЛЬНЫЙ ОТСЕК ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2009 |
|
| 005 |
11517253 |
STUD, ENG WRG HARN BRKT (HFH, M8X1.25X20, M6X1X16, 44 TOTAL LG, 18 O.D., 9.8) (4.047) |
E (LY7) |
2004-2004 |
01 |
| 006 |
11517590 |
БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (ECM BRKT)
|
2004-2009 |
01 |
|
| 007 |
12585357 |
BRACKET, ENG WRG HARN OXY SEN LEAD (HOLDS THE PRE SENSOR CONNECTOR POSITION 1 CONN) |
E (LY7, JJA) |
2004-2009 |
01 |
| 008 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (WRG HARN BRKT) |
|
2004-2009 |
01 |
