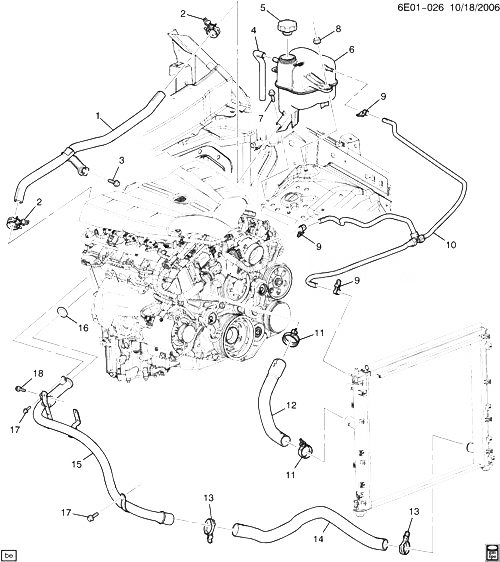

(6E01-026) - 2004-2006 E ШЛАНГИ И ТРУБКИ/РАДИАТОР (LY7/3.6-7) CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88956900 HOSE, RAD SURGE TK OTLT (INCLS 2) E (LY7, JJA) 2004-2006 01
002 11517136 CЛАМПА, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (ЧАСТЬ OF 1) 2004-2006 02
003 11518624 БОЛТ, HFH, M10X1.5X30.4, 22.5 THD, 22.3 O.D., 10.9, GMW3359 (RAD SURGE TK ENG PIPE CLIP) 2004-2006 01
004 25757865 HOSE, RAD SURGE TK OVFL (ЧАСТЬ OF 6) E 2004-2006 01
005 15075118 CAP, RAD SURGE TK (ЧАСТЬ OF 6) (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98) E 2004-2006 01
006 25767641 TANK, RAD SURGE (INCLS 4, 5) (INCLS LOW COOLANT SWITCH) (ACDelco #25767641) E 2004-2006 01
007 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (RAD SURGE TK) 2004-2006 01
008 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (RAD SURGE TK) 2004-2006 01
009 11570614 CЛАМПА-ПРУЖИНАBAND, 15 NOMINAL DIA, 15 THK, STL, ROBO (ЧАСТЬ OF 10) 2004-2006 03
010 88958088 HOSE, RAD SURGE TK INL (INCLS 9) E (LY7, JJA) 2004-2006 01
011 11516233 CЛАМПА-ПРУЖИНАBAND, TYPE A, 15 WID, 40 HOSE OD, 6150M, 7111M, MM (ЧАСТЬ OF 12) 2004-2006 02
012 89023435 HOSE, RAD INL (INCLS 11) E (LY7) 2004-2006 01
013 11516233 CЛАМПА-ПРУЖИНАBAND, TYPE A, 15 WID, 40 HOSE OD, 6150M, 7111M, MM (ЧАСТЬ OF 14) 2004-2006 02
014 89023445 HOSE, RAD OTLT (INCLS 13) E (LY7) 2004-2005 01
015 12603912 PIPE, RAD OTLT (INCLS 16) (WHEN USED IN PLACE OF 12587536 USE T/W РАДИАТОР OUTLET HOSE 19129967) EB (LY7) 2004-2006 01
016 12623519 SEAL, RAD OTLT PIPE (O RING) (ЧАСТЬ OF 15) EB (LY7, MX5, M82, JJA) 2004-2004 01
017 11519977 БОЛТ- HFH, M8X1.25X25, 16 THD, 18 OD, 8.8, GMW3359, MAT-PT. (RAD OTLT PIPE) 2004-2006 02
018 11518624 БОЛТ, HFH, M10X1.5X30.4, 22.5 THD, 22.3 O.D., 10.9, GMW3359 (RAD OTLT PIPE) 2004-2006 01
019 25740076 BRACKET, RAD OTLT HOSE E (LY7) 2004-2006 01
020 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (RAD OTLT HOSE BRKT) (T/W 12345493 REPLCS 25534835) 2004-2006 01
