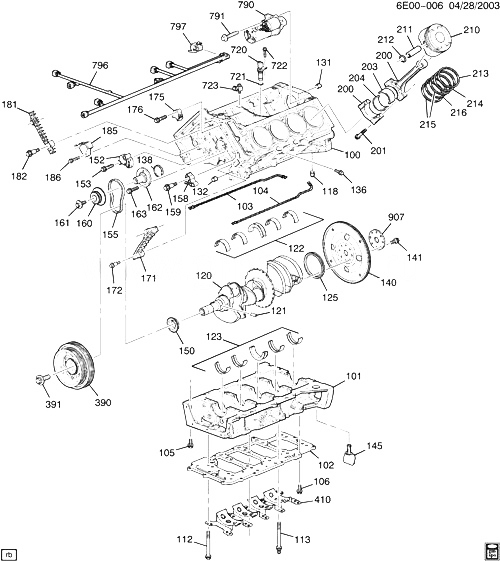

(6E00-006) - 2004-2005 E ДВИГАТЕЛЬ В СБОРЕ-4.6L V8 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ ВНУТРЕННИЕ ДЕТАЛИ (LH2/4.6A) CADILLAC - SRX 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG 2004-2005
101 CRANKCASE, LWR (MCHG) 2004-2005
102 MANIFOLD, ENG OIL (СМ. ГРУППУ 00.000 ДВИГАТЕЛЬ В СБОРЕ/МАСЛЯНЫЙ НАСОС, PAN ДЕТАЛИ КОМПЛЕКТА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (WITHOUT МАСЛЯНЫЙ ПОДДОН BAFFLE) 2004-2005
103 12573430 SEAL, LWR C/CASE (4.3MM WIDE X 5MM TALL) E (LH2) 2004-2005 02
104 12573430 SEAL, LWR C/CASE (4.3MM WIDE X 5MM TALL) E (LH2) 2004-2005 02
105 11515793 БОЛТ, HFH (LWR C/CASE) E (LH2) 2004-2005 08
106 03522376 БОЛТ, HFH, M6X1X23, 18 THD, 14.50 OD, 7T, ZP (ENG OIL MANIF) 2004-2005 10
112 03542310 БОЛТ, LWR C/CASE (M10X1.5X125, 30 THD) (8.900) E (LH2) 2004-2005 19
113 03542311 STUD, LWR C/CASE (M10X1.5X125-M9X1.0X13) (1.428) E (LH2) 2004-2005 01
118 03530355 PIN, LWR C/CASE LOC (M8X20) E (LH2) 2004-2005 04
120 12565564 CRANKSHAFT, (MCHG) E (LH2) 2004-2005 01
121 12585420 PIN, CR/SHF SPKT LOC E (LH2) 2004-2005 01
125 12568025 SEAL, CR/SHF RR OIL E (LH2) 2004-2005 01
131 12338076 PIN, TRANSAXLE LOC (19.5 MM X 18.5 MM) (TO CYL BLK) E (LH2) 2004-2005 02
132 03525915 PIN, ENG FRT CVR LOC (DOWEL, 5.99X17.25, CHAM BOTH ENDS, 10.9) E (LH2) 2004-2005 02
136 24503702 PLUG, ENG BLK COOL HOLE (8X1.25X12, 10.5 THD W/6MM OF 6124M ADHES, 17.6 OD, 9.8, PC) E (LH2) 2004-2005 01
138 03522422 PLUG, CM/SHF (CUP, W/LIP, 50.24X6.12X1.52, 52.58 OD, 1008, OIL) E (LH2) 2004-2005 01
140 12580474 FLYКОЛЕСО, ENG E (LH2) 2004-2005 01
141 12561075 БОЛТ, FLYWHL E (LH2) 2004-2005 08
145 12568122 COVER, FLYWHL HSG E (LH2, MV3, M22) 2004-2005 01
150 12570154 SPROCKET, CR/SHF E (LH2) 2004-2005 01
152 12581223 РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (PRIMARY) E (LH2) 2004-2005 01
153 01647264 БОЛТ, TMG CHAIN TENSR (HFH, 8X1.25X42, 22 THD, 17.0 OD, 9.8, PC, MACH) E (LH2) 2004-2005 06
155 12564274 CHAIN, CM/SHF INTER DRV E (LH2) 2004-2005 01
158 12559388 GUIDE KIT, TMG CHAIN (PRIMARY CHAIN) E (LH2) 2004-2005 01
159 12553743 БОЛТ, CM/SHF INTER DRV CHAIN TENSR (HFH, 8X1.25X41.8, 16.34 THD, 19.0, 12.85 BODY, 9.8, PC MACH) E (LH2) 2004-2005 08
160 12577433 SPROCKET, CM/SHF INTER DRV SHF E (LH2) 2004-2005 01
161 01647272 БОЛТ, CM/SHF SPKT E (LH2) 2004-2005 01
162 12577790 SHAFT, CM/SHF INTER DRV E (LH2) 2004-2005 01
163 11097921 БОЛТ, CM/SHF INTER DRV SHF RET (9.242) E (LH2) 2004-2004 03
171 12556023 GUIDE, TMG CHAIN (SECONDARY CHAIN GUIDE) E (LH2) 2004-2005 02
172 12553743 БОЛТ, CM/SHF INTER DRV CHAIN TENSR (HFH, 8X1.25X41.8, 16.34 THD, 19.0, 12.85 BODY, 9.8, PC MACH) E (LH2) 2004-2005 08
175 12556030 РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (SECONDARY) E (LH2) 2004-2005 02
176 01647264 БОЛТ, TMG CHAIN TENSR (HFH, 8X1.25X42, 22 THD, 17.0 OD, 9.8, PC, MACH) E (LH2) 2004-2005 06
181 12556023 GUIDE, TMG CHAIN (SECONDARY CHAIN GUIDE) E (LH2) 2004-2005 02
182 12553743 БОЛТ, CM/SHF INTER DRV CHAIN TENSR (HFH, 8X1.25X41.8, 16.34 THD, 19.0, 12.85 BODY, 9.8, PC MACH) E (LH2) 2004-2005 08
185 12556030 РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (SECONDARY) E (LH2) 2004-2005 02
186 01647264 БОЛТ, TMG CHAIN TENSR (HFH, 8X1.25X42, 22 THD, 17.0 OD, 9.8, PC, MACH) E (LH2) 2004-2005 06
200 12567469 ROD, CONN (INCLS 201) (USES 23MM PIN) E (LH2) 2004-2005 08
201 12552947 БОЛТ, CONN ROD (ЧАСТЬ OF 200) (MJ9X1.0-4H6HX61.9 LONG) E (LH2) 2004-2005 16
203 BEARING, CONN ROD (*KIT1) 2004-2005
204 BEARING, CONN ROD (*KIT1) 2004-2005
210 89017430 PISTON, (W/PIN) (INCLS 211, 212) E (LH2) 2004-2005 08
211 PIN, PSTN (ЧАСТЬ OF 210) 2004-2005
212 RETAINER, PSTN PIN (ЧАСТЬ OF 210) 2004-2005
213 RING, PSTN CMPRN UPR (*KIT2) 2004-2005
214 RING, PSTN CMPRN LWR (*KIT2) 2004-2005
215 RAIL, PSTN OIL RING (*KIT2) 2004-2005
216 SPACER, PSTN OIL RING RL (*KIT2) 2004-2005
390 12584576 BALANCER, CR/SHF E (LH2) 2004-2005 01
391 11569873 БОЛТ, CR/SHF BALR (M14X1.5X48.4) E (LH2) 2004-2005 01
410 12577394 BAFFLE, МАСЛЯНЫЙ ПОДДОН (B/W CRANK CASE AND PAN) E (LH2) 2004-2005 01
720 12567170 SENSOR, CR/SHF POSN (INCLS 721) (ACDelco #213-1511) E (LH2) 2004-2005 01
721 SEAL, CR/SHF POS SENSOR (ЧАСТЬ OF 720) 2004-2005
722 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CR/SHF POSN SEN) 2004-2005 01
723 12567446 SENSOR, KNOCK (ACDelco #213-1525) E (LH2) 2004-2005 02
790 10465558 STARTER, (REMAN) (ACDelco #323-1463) (DELCO PMGR SERIES PG260) E (LH2) 2004-2004 01
790 19136223 STARTER, (REMAN) (DELCO PMGR 1.7 KW) (ACDelco #336-1914) (ALL MAKES) EB26 (LH2) 2004-2004 01
790 88864293 STARTER, (REMAN) (DELCO PMGR 1.7 KW) (ALL MAKES) EB26 (LH2) (WITH NEW SOLENOID) 2004-2004 01
791 11515793 БОЛТ, HFH (STRTR) 2004-2005 02
796 12597445 HARNESS, CR/SHF POS SEN KNOCK SEN WRG (INCLS 797) E26 (LH2) 2004-2004 01
797 12583228 BRACKET, CR/SHF POSN SEN WRG HARN CONN (ЧАСТЬ OF 796) E (LH2) 2004-2005 01
907 01647172 SPACER, FLYWHL E (LH2) 2004-2005 01
K01 12559363 BEARING KIT, CONN ROD (STD) (INCLS 203, 204) E (LH2) 2004-2005 08
K02 89017413 RING KIT, PSTN (INCLS 213-216) E (LH2) 2004-2005 08
