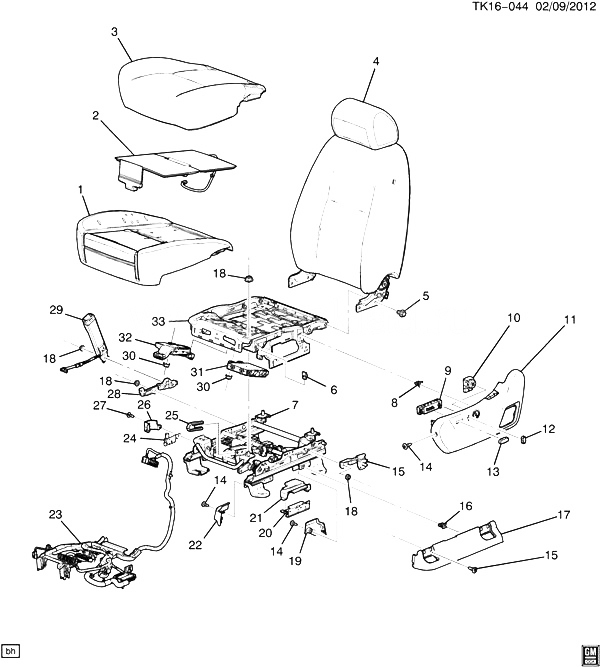

(TK16-044) 2012-2013 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET-CUSHION (AN3, HEATED/VENTED HNE,KB6) CADILLAC - ESCALADE HYBRID (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22781427 PAD, D/SEAT CUSH CK1, 2 (06-36) (AL0, AN3, KB6) 2012-2013 01
001 22781427 PAD, D/SEAT CUSH CK1 (06) (AN3, HNE, ULT, Z75) 2012-2013 01
002 22856920 MAT, F/SEAT VENT FAN (BACK SERVICE PART) CK1 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2012-2013 01
002 22856921 MAT, F/SEAT VENT FAN (CUSH SERVICE PART) CK1, 2 (06-36) (AL0, AN3, KB6) 2012-2013 01
003 25851675 COVER, D/SEAT CUSH (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2012-2013 01
003 22751125 COVER, D/SEAT CUSH (EBONY) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2012-2013 01
003 22751126 COVER, D/SEAT CUSH (CASHMERE) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
003 22784371 COVER, D/SEAT CUSH (EBONY) CK1 (06) (AN3, HNE, ULT, Z75, 195) 2012-2013 01
004 PAD, D/SEAT BK (SEE GROUP 16.000 DRIVER SEAT/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) 2012-2013
005 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2012-2013 08
006 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2012-2013 02
007 22804420 ADJUSTER, D/SEAT (POWER 6-WAY) (INCLS MOTORS) (W/MEMORY) CK1 (06-36) (AN3, Z75, 194, 394, 415) 2012-2013 01
007 22804419 ADJUSTER, D/SEAT (POWER 6-WAY) (INCLS MOTORS) (W/MEMORY) CK1 (06) (AN3, HNE, ULT, Z75, 195, 415) 2012-2013 01
008 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 11) 2012-2013 03
009 12451497 SWITCH, D/SEAT ADJR RECL (8-WAY) (11.558) CK1, 2 (06-36) (AN3) 2012-2013 01
010 25909573 SWITCH, D/SEAT LUMBAR CONT (COCOA) CK1, 2 (06-36) (41I) 2012-2013 01
010 25926717 SWITCH, D/SEAT LUMBAR CONT (CASHMERE) (4-PIN, BKWD FORWD ONLY) (11.378) CK1, 2 (06-36) (33I, 39I, 83I, 85I) 2012-2013 01
010 25926718 SWITCH, D/SEAT LUMBAR CONT (LT TITANIUM) (4-PIN, BKWD FORWD ONLY) (11.378) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
010 25926718 SWITCH, D/SEAT LUMBAR CONT (LT TITANIUM) (4-PIN, BKWD FORWD ONLY) (11.378) CK1 (06) (AN3, HNE, ULT, Z75, 415) (EXC AYE) 2012-2013 01
010 25926718 SWITCH, D/SEAT LUMBAR CONT (LT TITANIUM) (4-PIN, BKWD FORWD ONLY) (11.378) CK1 (06) (AN3, HNE, ULT, Z75, 195) (EXC AYE) 2012-2013 01
011 15232562 COVER, D/SEAT ADJR FIN (INCLS 8) (EBONY) (8 WAY POWER) (OUTBOARD) CK1, 2 (06-36) (AN3, 19I) 2012-2013 01
011 15232563 COVER, D/SEAT ADJR FIN (INCLS 8) (CASHMERE) (8 WAY POWER) CK1, 2 (06-36) (AN3, 33I, 39I) 2012-2013 01
011 15232564 COVER, D/SEAT ADJR FIN (INCLS 8) (TITANIUM) (8 WAY POWER) CK1, 2 (06-36) (AN3, 83I) 2012-2013 01
011 25851752 COVER, D/SEAT ADJR FIN (INCLS 8) (COCOA) (8 WAY POWER) CK1 (06) (AN3, 41I) 2012-2013 01
012 15222985 KNOB, F/SEAT BK RECL (TITANIUM) (11.377) CK1, 2, 3 (83I) 2012-2013 02
012 15222984 KNOB, F/SEAT BK RECL (CASHMERE) (11.377) CK1, 2 (06-36) (39I) 2012-2013 02
012 15222984 KNOB, F/SEAT BK RECL (CASHMERE) (11.377) CK1, 2 (06-36) (33I) 2012-2013 02
012 15889098 KNOB, F/SEAT BK RECL (COCOA) (11.377) CK1 (06) (AN3, AYE, HNE, ULT, Z75, 415) 2012-2013 01
013 10325879 KNOB, D/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I) 2012-2013 01
013 10325879 KNOB, D/SEAT ADJR SW (EBONY) (11.558) CK1 (06) (AN3, AYE, HNE, ULT, Z75, 195) 2012-2013 01
013 15889097 KNOB, D/SEAT ADJR SW (COCOA) (11.558) CK1 (06) (AN3, AYE, HNE, ULT, Z75, 415) 2012-2013 01
014 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) 2012-2013 05
015 15845152 BRACKET, D/SEAT BELT (RETR SI) (O/B) CK1, 2, 3 (AL0) 2012-2013 01
016 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 17) 2012-2013 01
017 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I) 2012-2013 01
017 15232585 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (CASHMERE) (OUTBOARD) CK1, 2, 3 (33I, 39I) 2012-2013 01
017 15232586 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (TITANIUM) (OUTBOARD) CK1, 2 (06-36) (83I) 2012-2013 01
017 25851754 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (COCOA) (OUTBOARD) CK1 (06) (AN3, 41I) 2012-2013 01
018 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) 2012-2013 09
019 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2012-2013 01
019 15243865 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2012-2013 01
019 15243866 COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2012-2013 01
019 25851754 COVER, D/SEAT OTR ADJR TRK RR FIN (COCOA) (OUTBOARD) CK1 (06) (AN3, 41I) 2012-2013 01
020 15827134 BRACKET, D/SEAT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2012-2013 01
021 20970791 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (Z75) 2012-2013 01
022 15243852 COVER, D/SEAT INR ADJR TRK FRT FIN (TITANIUM) CK1, 2, 3 (83I) 2012-2013 01
022 25851758 COVER, D/SEAT INR ADJR TRK FRT FIN (COCOA) CK1 (06) (AN3, 41I) 2012-2013 01
022 15243850 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I) 2012-2013 01
022 15243851 COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (33I, 39I) 2012-2013 01
023 22814911 HARNESS, D/SEAT ADJR WRG CK1 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2012-2013 01
023 22814911 HARNESS, D/SEAT ADJR WRG CK1 (06) (AN3, HNE, ULT, Z75, 195, 415) 2012-2013 01
024 25951880 SENSOR, AIRBAG D/SEAT POSN (MATING CONN W/LEADS USE 13577629) CK1 (06-36) (AL0, AN3, Z75, 194, 394) 2012-2013 01
024 25951880 SENSOR, AIRBAG D/SEAT POSN (MATING CONN W/LEADS USE 13577629) CK1 (06) (AN3, Z75, 415) 2012-2013 01
025 CAP, F/SEAT ADJR TRK END 2012-2013
026 20900194 COVER, AIRBAG D/SEAT POSN SEN CK1, 2 (06-36) 2012-2013 01
027 88981918 BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) CK1, 2, 3 2012-2013 06
028 25916854 BRACKET, D/SEAT BELT (BKL SI) (I/B) (INCLDS BKL MOUNT STUD) CK1, 2, 3 2012-2013 01
029 19121539 BELT KIT, D/SEAT (BKL SI) (TITANIUM) CK1, 2 (06-36) (AN3, 83I) 2012-2013 01
029 19180587 BELT KIT, D/SEAT (BKL SI) (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2012-2013 01
029 19121537 BELT KIT, D/SEAT (BKL SI) (EBONY) CK1, 2 (06-36) (AN3, 19I) 2012-2013 01
029 19121538 BELT KIT, D/SEAT (BKL SI) (CASHMERE) CK1, 2 (06-36) (AN3, 33I, 39I) 2012-2013 01
030 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (D/SEAT ADJR MEMORY SW) 2012-2013 06
031 25862041 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (ADJR HTR CONTROL) (11.558) CK1 (06-36) (AN3, KB6, Z75) 2012-2013 01
031 25862041 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (ADJR HTR CONTROL) (11.558) CK1 (06-36) (AN3, KB6, Z75) 2012-2013 01
032 22868178 BLOWER, D/SEAT CUSH VENTILATION HEAT COOL CK1, 2 (06-36) (AL0, AN3, KB6) 2012-2013 01
033 22781434 FRAME, D/SEAT CUSH CK1, 2 (06-36) 2012-2013 01
